1993 Suzuki JR50 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1993 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

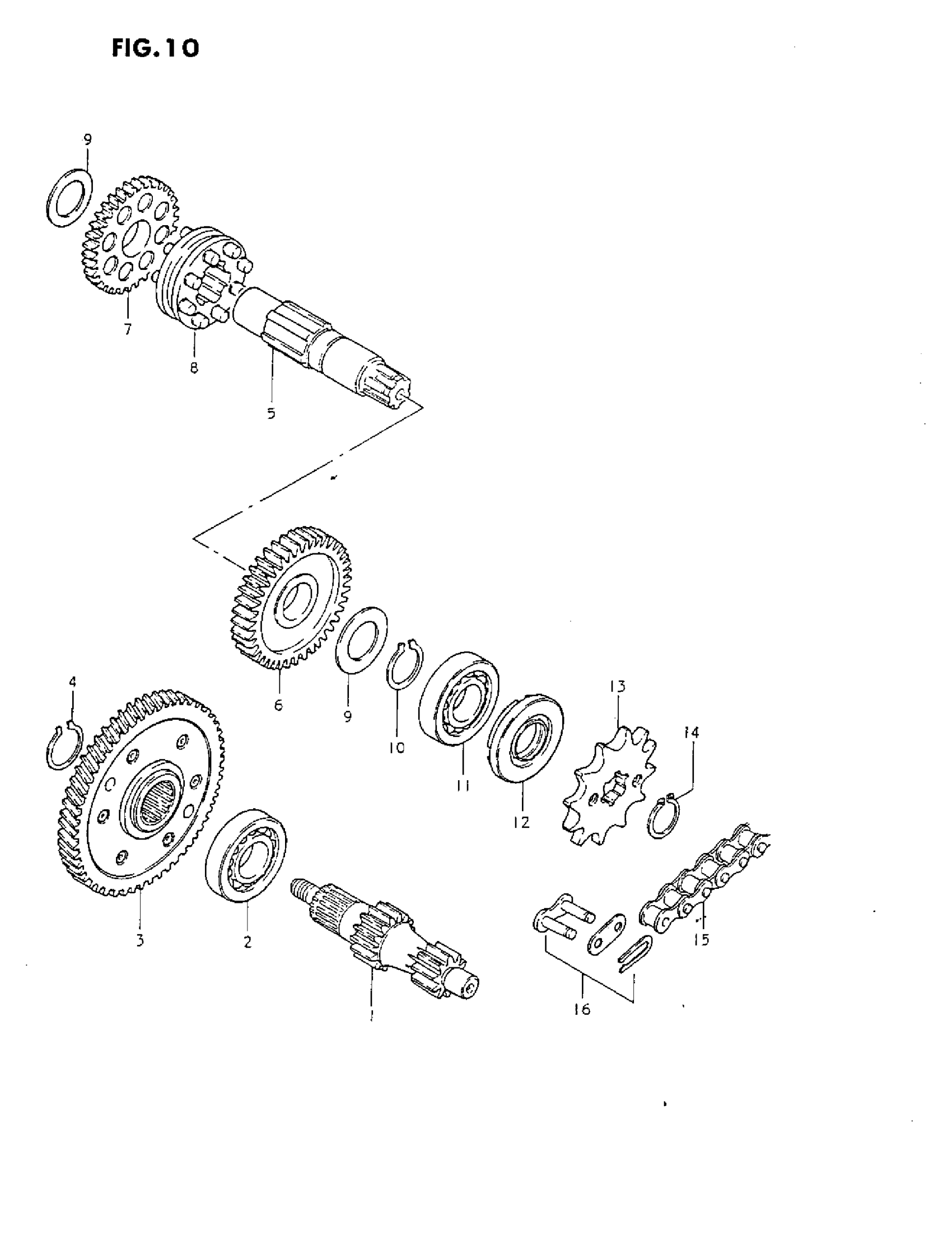

1993 Suzuki JR50 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:10/13) This part replaces 24121-04010.

24121-04011

1
Out of stock

2

BEARING (17X40X12)

09262-17023

1
Out of stock

3

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-04500.

21200-04501

1
Out of stock

4

CIRCLIP

09380-17003

1
Out of stock

5

DRIVESHAFT

24131-04001

1
Out of stock

6

GEAR, 1ST DRIVEN (NT:40) This part replaces 24311-04001.

24311-04002

1
Out of stock

7

GEAR, 2ND DRIVEN (NT:29) This part replaces 24321-04010.

24321-04011

1
Out of stock

8

WHEEL, SLIDING

24411-04003

1
Out of stock

9

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

2
Out of stock

10

CIRCLIP

09380-17003

1
Out of stock

11

BEARING

09262-17023

1
Out of stock

12

OIL SEAL (17X29X7) | MODEL N/P

09283-17001

1
Out of stock

12

OIL SEAL CRANKS | MODEL R This part replaces 09283-17010.

09283-17012

1
Out of stock

13

SPROCKET, ENGINE (NT:13)

27511-19000

1
Out of stock

14

CIRCLIP This part replaces 08331-31166.

08331-31169

1
Out of stock

15

CHAIN ASSY,DRIV | MODEL N/P This part replaces 27600-46221.

27600-46211

1
Out of stock

15

CHAIN ASSY,DRIV | MODEL R This part replaces 27600-13670.

27600-01012-130

1
Out of stock

16

JOINT (RK)

27620-01023

1
Out of stock

16

JOINT (DID)

27620-01012

1
Out of stock
