1993 Suzuki JR50 Rear Wheel Diagram

← All diagrams

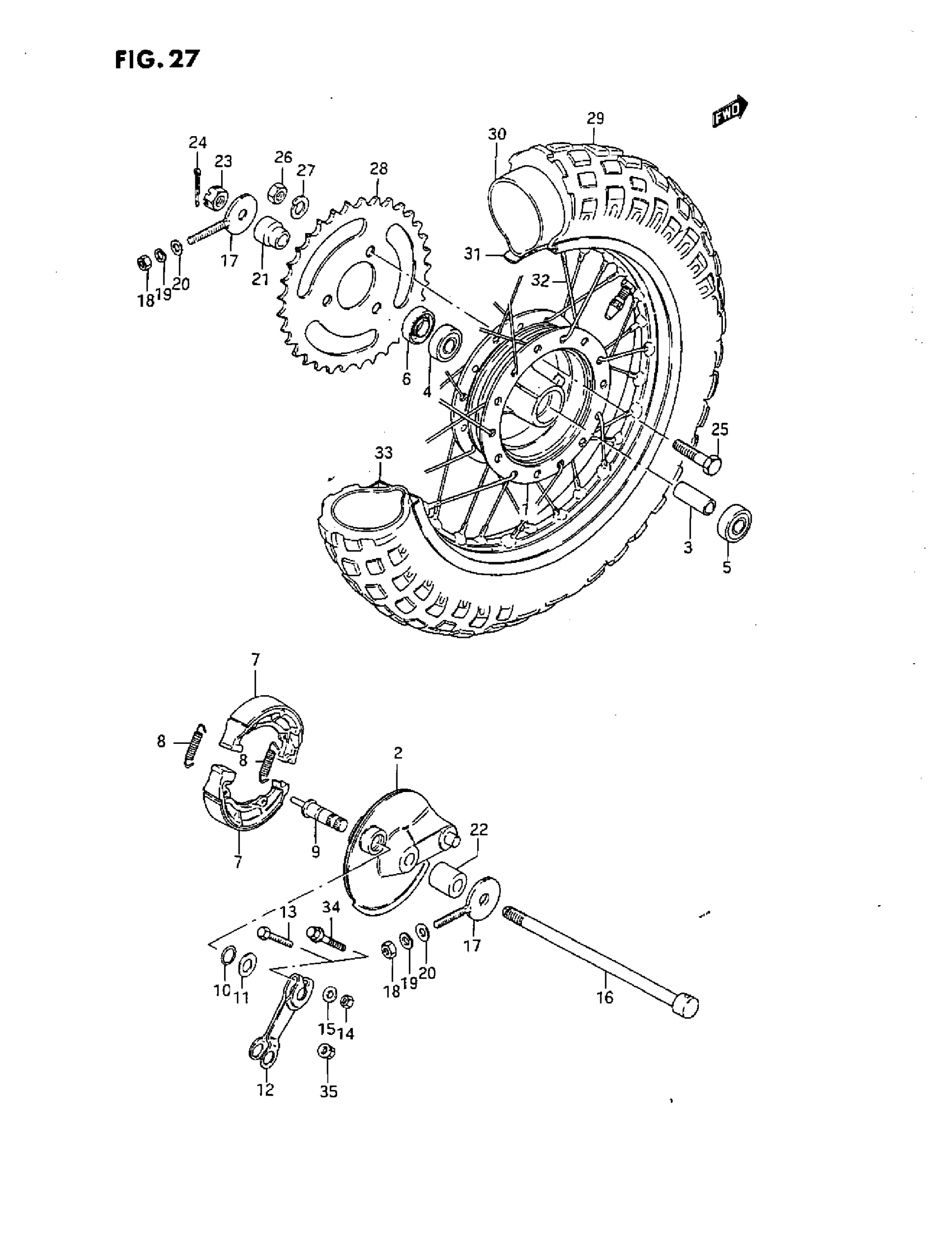

Find the part on the Rear Wheel diagram for your 1993 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki JR50 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-04400

1
Out of stock

2

PANEL, BRAKE ANCHOR

64210-04400

1
Out of stock

3

SPACER (10.2X16X55) This part replaces 09180-10013.

09180-10149

1
Out of stock

4

BEARING (10X26X8) This part replaces 08113-60000.

09262-10015

1
Out of stock

5

BEARING, RH

08143-60007

1

$21.52

In stock

6

OIL SEAL

09284-15004

1
Out of stock

7

SHOE SET, BRAKE | model N This part replaces 54410-04002.

64400-04811

2
Out of stock

7

SHOE SET, BRAKE | MODEL P/R This part replaces 64410-04201.

64400-04811

2
Out of stock

8

SPRING

09443-07025

2
Out of stock

9

CAM, BRAKE This part replaces 54441-04000.

54441-04001

1
Out of stock

10

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

1
Out of stock

11

WASHER This part replaces 09160-10026.

09160-10121

1
Out of stock

12

LEVER, BRAKE CAM

64451-04000

1
Out of stock

13

BOLT | model N This part replaces 01107-05258.

01500-0525A

1
Out of stock

14

NUT | model N This part replaces 08310-11057.

08310-00057

1
Out of stock

15

WASHER | model N This part replaces 08322-21057.

08322-01057

1
Out of stock

16

AXLE, REAR

54711-04410

1
Out of stock

17

ADJUSTER, CHAIN

61411-04000

2
Out of stock

18

.NUT | model N/P This part replaces 08310-11067.

08310-00067

2
Out of stock

18

NUT | MODEL R This part replaces 08310-00063.

08310-0006A

2
Out of stock

20

WASHER | MODEL N/P This part replaces 08322-21067.

08322-01067

2
Out of stock

20

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

2
Out of stock

21

SPACER, LH (L:22)

64751-04410

1
Out of stock

22

SPACER, RH (10X20X21)

64741-04410

1
Out of stock

23

NUT | model N/P This part replaces 08314-31108.

08314-3110A

1
Out of stock

23

NUT | MODEL R

09141-10006

1
Out of stock

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

25

BOLT This part replaces 09105-08008.

09105-08011

3
Out of stock

26

3

$1.93

In stock

26

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

3
Out of stock

27

LOCK WASHER | MODEL R

09162-08008

3
Out of stock

28

SPROCKET, REAR (NT:28)

64511-04411

1
Out of stock

29

TIRE, REAR (2.50-10)

55100-04410

1
Out of stock

30

TUBE, INNER

55200-04410

1
Out of stock

31

PROTECTOR

55261-04410

1
Out of stock

32

SPOKE SET

55300-04820

1
Out of stock

33

RIM, WHEEL (1.40X10)

55311-04410

1
Out of stock

34

BOLT, BRAKE CAM LEVER | model P This part replaces 01517-05258.

01550-0525A

1
Out of stock

34

BOLT, BRAKE CAM LEVER | MODEL R This part replaces 01550-05253.

01550-0525A

1
Out of stock

35

NUT | MODEL P This part replaces 08316-16058.

08316-1005A

1
Out of stock

35

NUT | MODEL R This part replaces 08316-10053.

08316-1005A

1
Out of stock
