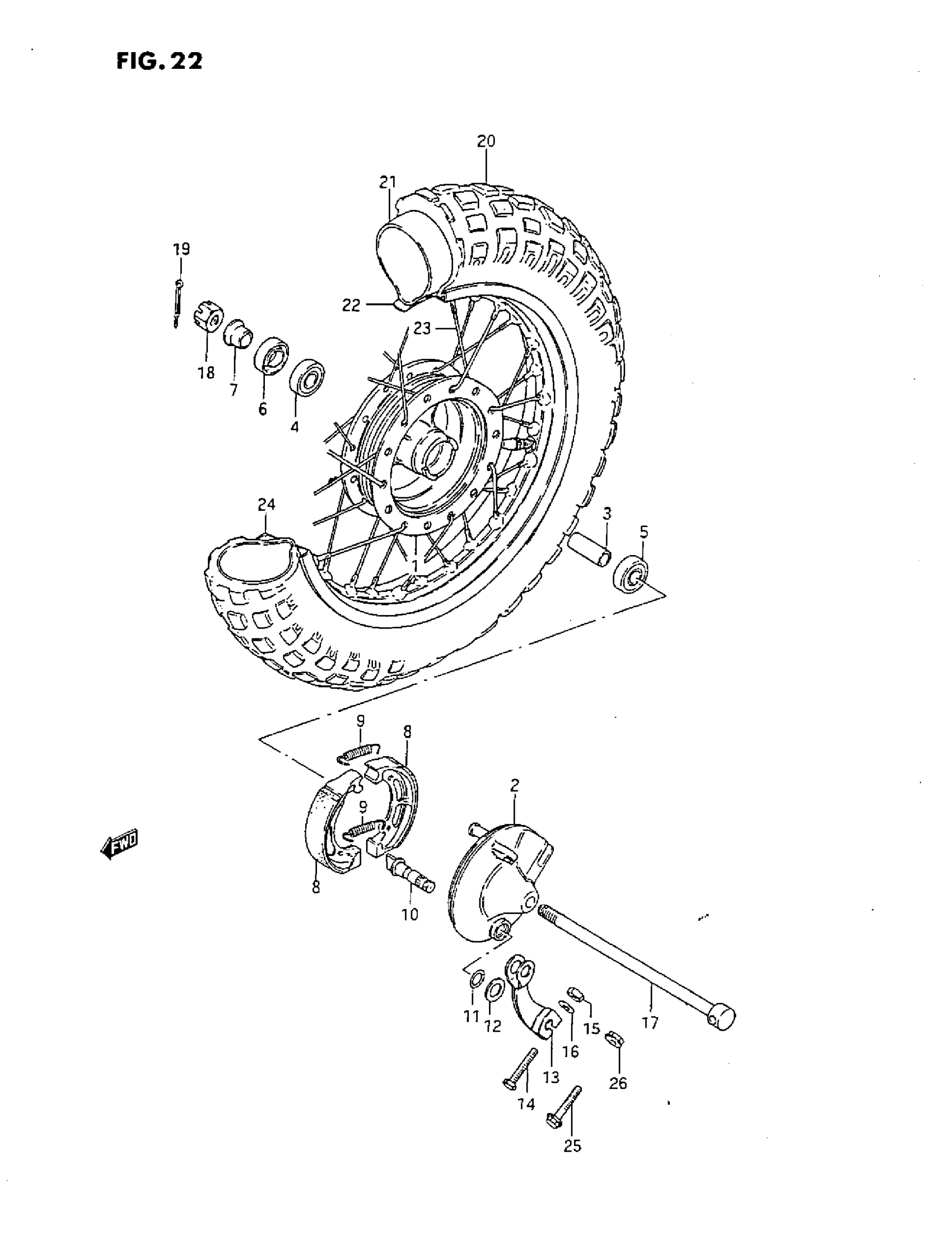

Description

Price

1

HUB, FRONT WHEEL

54110-04400

Unavailable

2

PANEL, BRAKE ANCHOR

54210-04410

$49.30

3

SPACER

09180-10012

$7.07

4

BEARING (10X26X8) This part replaces 08113-60000.

09262-10015

$18.50

5

BEARING, LH

08143-60007

$21.52

6

OIL SEAL (15X27X6)

09284-15004

$4.35

7

SPACER, AXLE

54741-04000

$6.00

8

SHOE SET, BRAKE | model N This part replaces 54410-04002.

64400-04811

$24.22

8

SHOE SET, BRAKE | MODEL P/R This part replaces 64410-04201.

64400-04811

$24.22

9

SPRING

09443-07025

$1.68

10

CAM, BRAKE This part replaces 54441-04000.

54441-04001

$14.34

11

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.33

12

WASHER This part replaces 09160-10026.

09160-10121

$2.06

13

LEVER, BRAKE CAM

54451-04000

$18.22

14

BOLT | model N This part replaces 01107-05258.

01500-0525A

$1.93

15

NUT | model N This part replaces 08310-11057.

08310-00057

$1.83

16

WASHER | model N This part replaces 08322-21057.

08322-01057

$1.86

17

AXLE, FRONT

54711-04410

$23.07

18

NUT | model N/P This part replaces 08314-31108.

08314-3110A

$2.50

18

NUT | MODEL R

09141-10006

$3.23

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

20

TIRE, FRONT (2.50-10)

55100-04410

Unavailable

21

TUBE, INNER

55200-04410

$25.53

22

PROTECTOR, TUBE

55261-04410

$6.69

23

SPOKE SET

55300-04820

$40.19

24

RIM, WHEEL (1.40X10)

55311-04410

$234.18

25

BOLT, BRAKE CAM LEVER | model P This part replaces 01517-05258.

01550-0525A

$2.58

25

BOLT, BRAKE CAM LEVER | MODEL R This part replaces 01550-05253.
