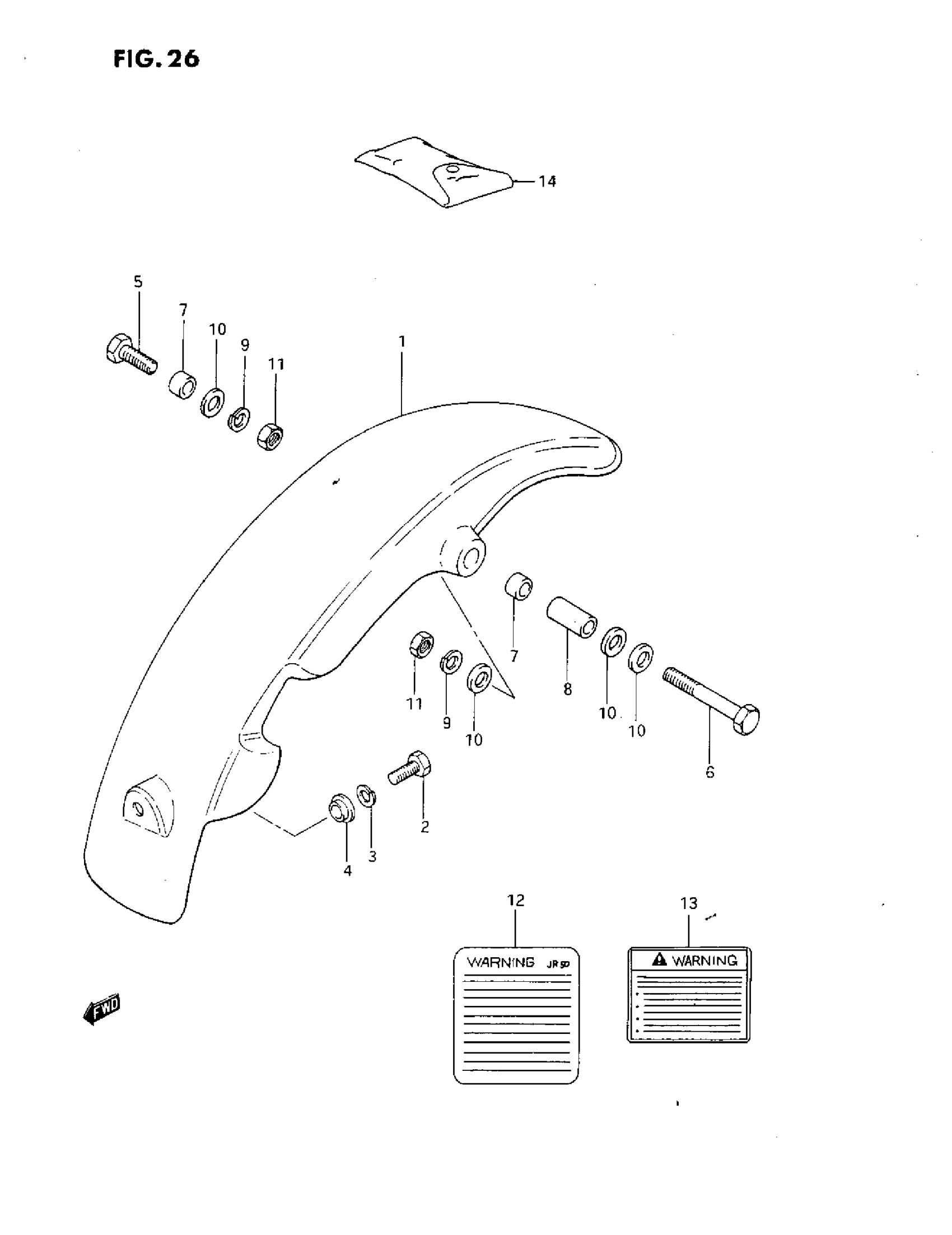

Suzuki JR50 (1993) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-04411-25Y

$21.09

2

BOLT | MODEL N/P This part replaces 01107-06127.

01500-06127

$1.97

2

BOLT | MODEL R This part replaces 01500-06123.

01500-0612A

$1.78

3

LOCK WASHER | MODEL N/P This part replaces 08321-21067.

08321-01067

$2.13

3

LOCK WASHER | MODEL R This part replaces 08321-01063.

08321-0106A

$1.84

4

WASHER

09169-06011

$3.45

5

BOLT, REAR | MODEL N/P This part replaces 01107-08207.

01500-08207

$2.53

5

BOLT | MODEL R This part replaces 01500-08203.

01500-0820A

$2.28

6

BOLT | MODEL N/P This part replaces 01107-08508.

01500-08507

$3.05

6

BOLT | MODEL R This part replaces 01500-08503.

01500-0850B

$3.77

7

SPACER This part replaces 63147-04410.

09180-08037

$2.97

8

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

9

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$2.13

9

LOCK WASHER | MODEL R This part replaces 08321-01083.

08321-0108A

$1.84

10

WASHER | MODEL N/P This part replaces 08322-21088.

08322-01087

$2.13

10

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

11

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$2.13

11

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

12

LABEL, WARNING This part replaces 68369-04420.

68369-04421

Unavailable

13

LABEL,GENERAL W This part replaces 68319-14D00.

68319-33E02

$7.25

14

TOOL ASSY | MODEL N/P This part replaces 09800-03801.

09800-21080

$36.42

14

TOOL ASSY | MODEL R

09800-21027

$28.40

15

MANUAL, OWNER'S | MODEL N This part replaces 99011-04439-03A.

99011-04441-03A

Unavailable

15

MANUAL, OWNER'S | MODEL P This part replaces 99011-04440-03A.

99011-04441-03A

Unavailable

15

MANUAL, OWNER'S | MODEL R WITHOUT DRAWING

99011-04441-03A

Unavailable
