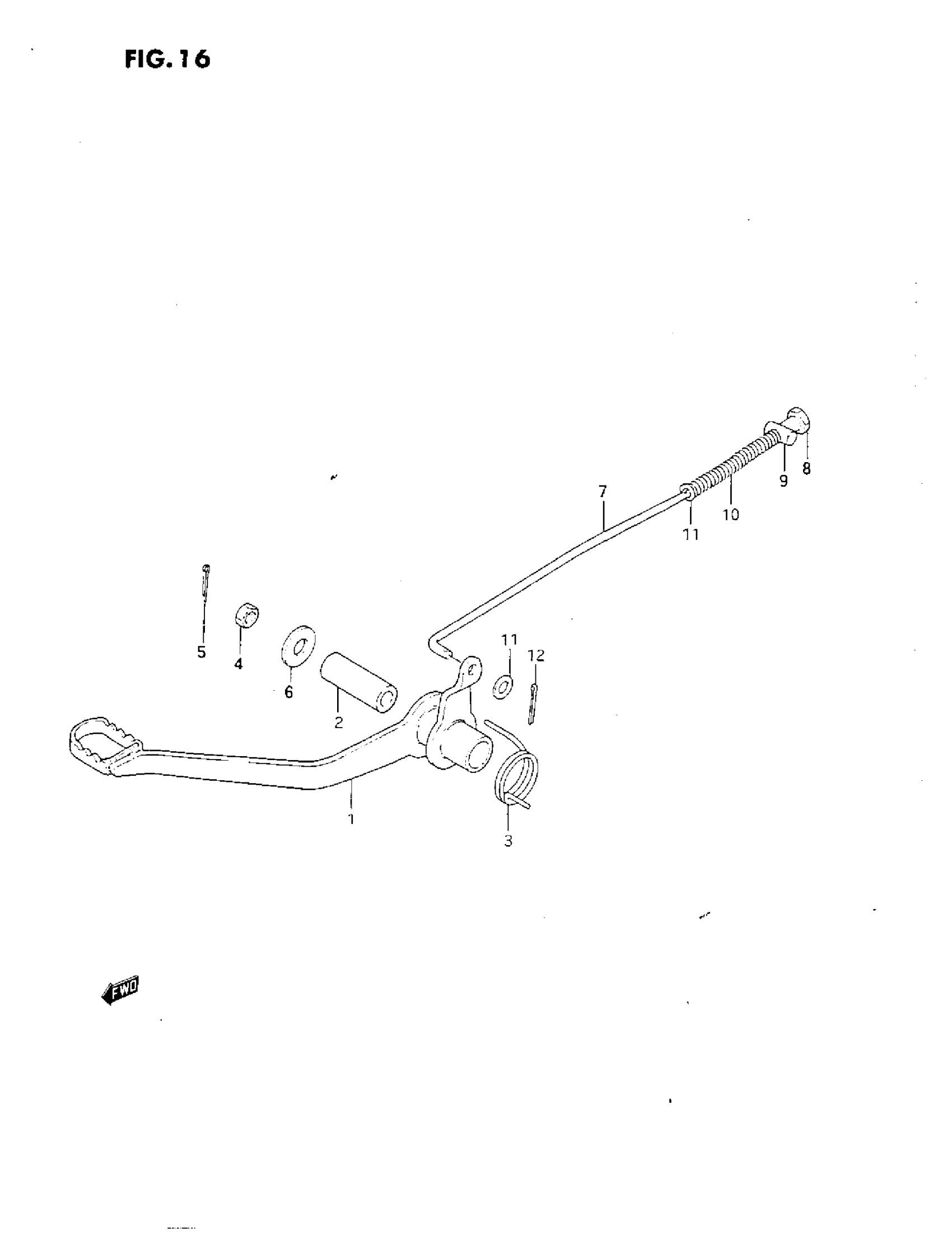

Suzuki JR50 (1993) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-04410

Unavailable

2

SPACER

43181-04411

$4.82

3

SPRING

43182-04410

$5.98

4

NUT | model N/P This part replaces 08314-31108.

08314-3110A

$1.99

4

NUT | MODEL R

09141-10006

$2.98

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

6

WASHER | MODEL N/P This part replaces 08322-21108.

08322-01107

$2.15

6

WASHER,10.5X22X | MODEL R This part replaces 09160-10119.

09160-10143

$2.34

7

ROD ASSY, BRAKE

43300-04410

$7.11

8

NUT

09150-05003

$3.63

9

PIN

09209-10001

$1.49

10

SPRING

09440-09004

$2.20

11

WASHER This part replaces 08322-21057.

08322-01057

$2.13

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
