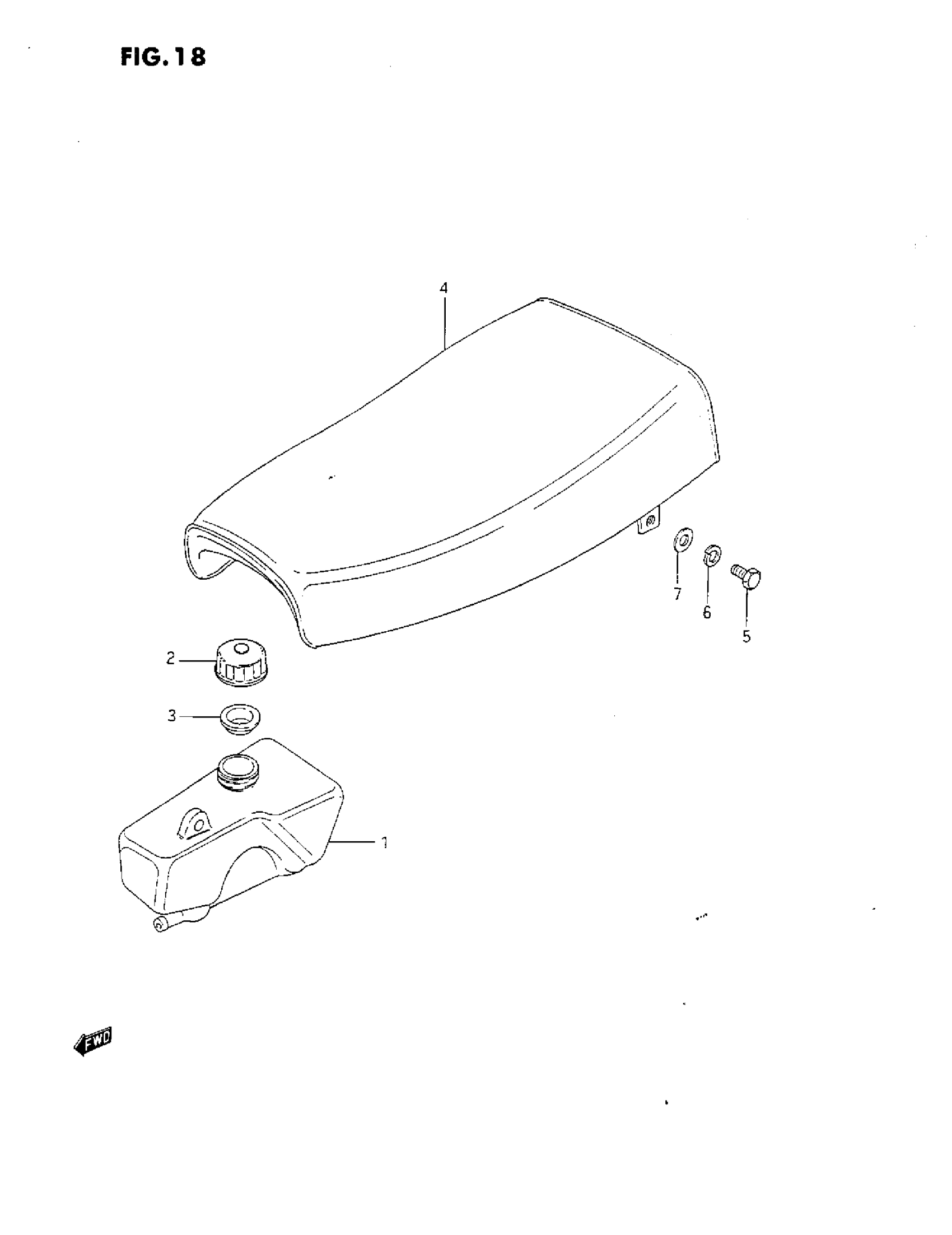

Suzuki JR50 (1993) OIL TANK-SEAT Diagram

#

Description

Price

1

TANK, OIL

44611-04410

$34.67

2

CAP, OIL TANK

44651-04410

$4.78

3

GASKET, OIL TANK CAP This part replaces 44661-32100.

51222-16500

$4.81

4

SEAT (BLUE) | MODEL N

45100-04480-4UZ

Unavailable

4

SEAT (YELLOW) | MODEL P/R

45100-04490-4YE

Unavailable

5

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

7

WASHER This part replaces 08322-21067.

08322-01067

$1.86
