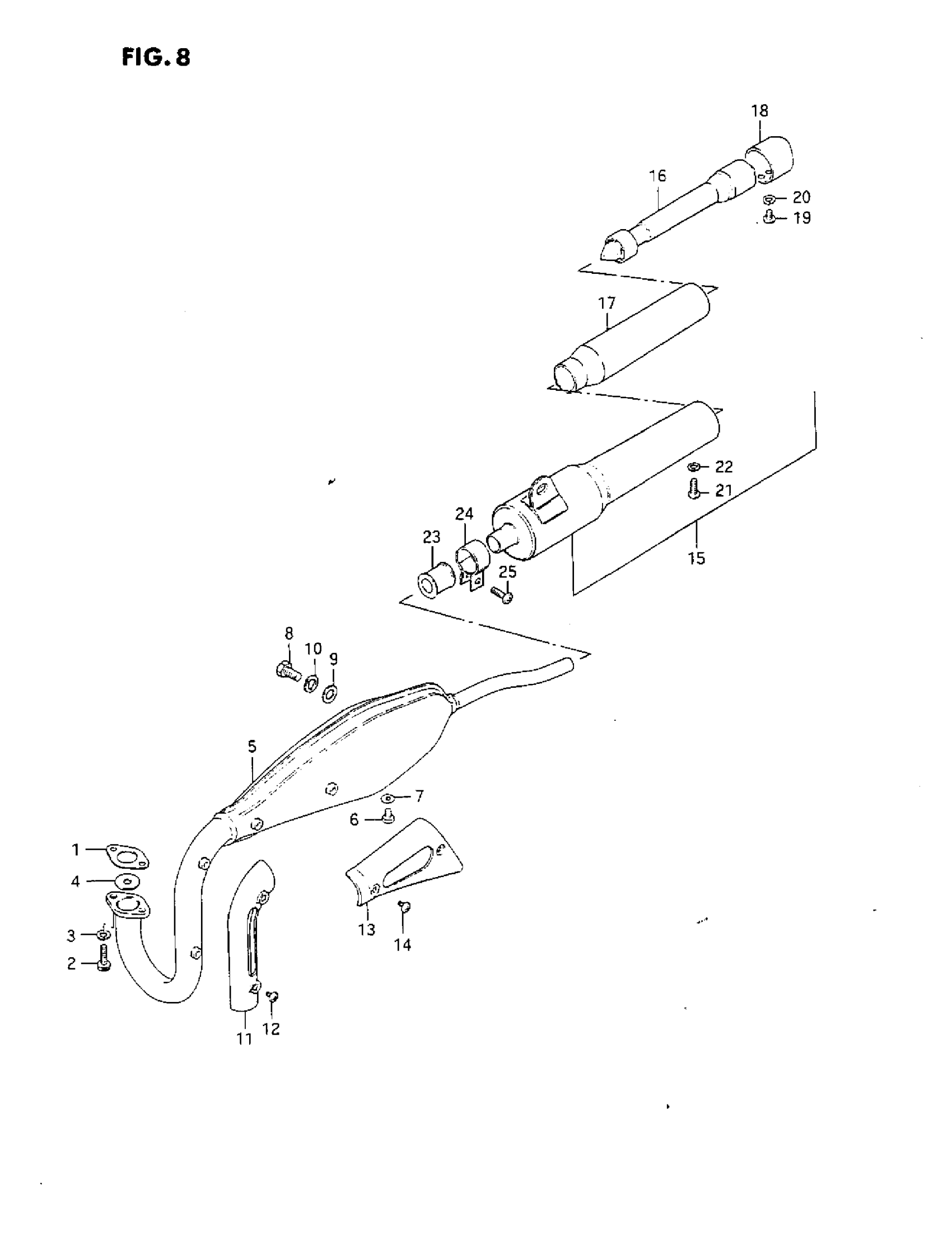

Suzuki JR50 (1993) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE (NA)

14181-04200

$8.34

2

BOLT | MODEL N/P This part replaces 07110-06167.

07130-06167

$3.16

2

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39

3

LOCK WASHER | MODEL N/P This part replaces 08321-21067.

08321-01067

$2.13

3

LOCK WASHER | MODEL R This part replaces 08321-01063.

08321-0106A

$1.84

4

PLATE, EXHAUST PIPE

14159-04410

$1.96

5

MUFFLER ASSY This part replaces 14301-04412-H01.

14301-04420-H01

$408.43

6

BOLT | MODEL N/P This part replaces 01107-06107.

01500-06107

$2.06

6

BOLT | MODEL R This part replaces 01500-06103.

01500-0610B

$1.81

7

WASHER | MODEL N/P This part replaces 08322-21067.

08322-01067

$2.13

7

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.26

8

PLUG, DRAIN | MODEL N/P This part replaces 01107-08167.

01500-0816B

$2.50

8

PLUG, DRAIN | MODEL R This part replaces 01500-08163.

01500-0816B

$2.50

9

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

10

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$2.13

10

LOCK WASHER | MODEL R This part replaces 08321-01083.

08321-0108A

$1.84

11

COVER, EXHAUST PIPE

14186-04410

$8.17

12

SCREW | MODEL N/P This part replaces 02112-05068.

09125-05122

$2.06

12

SCREW | MODEL R This part replaces 09125-05121.

02112-0506B

$1.84

13

COVER, MUFFLER

14781-04410

$9.83

14

SCREW | MODEL N/P This part replaces 02112-05068.

09125-05122

$2.06

14

SCREW | MODEL R This part replaces 09125-05121.

02112-0506B

$1.84

15

MUFFLER ASSY This part replaces 14303-04412-H01.

14301-04420-H01

$408.43

16

TUBE, CLEAN OUT

14850-30602

$50.97

17

SHELL, ARRESTER

14815-46600

Unavailable

18

CUTTER, MUFFLER TAIL

14817-04410

Unavailable

19

SCREW

02112-06087

$1.49

20

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

21

SCREW

02112-06167

$1.49

22

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

23

CONNECTOR, MUFFLER

14771-04410

$2.47

24

CLAMP

09402-22601

Unavailable

25

SCREW

02112-06167

$1.49
