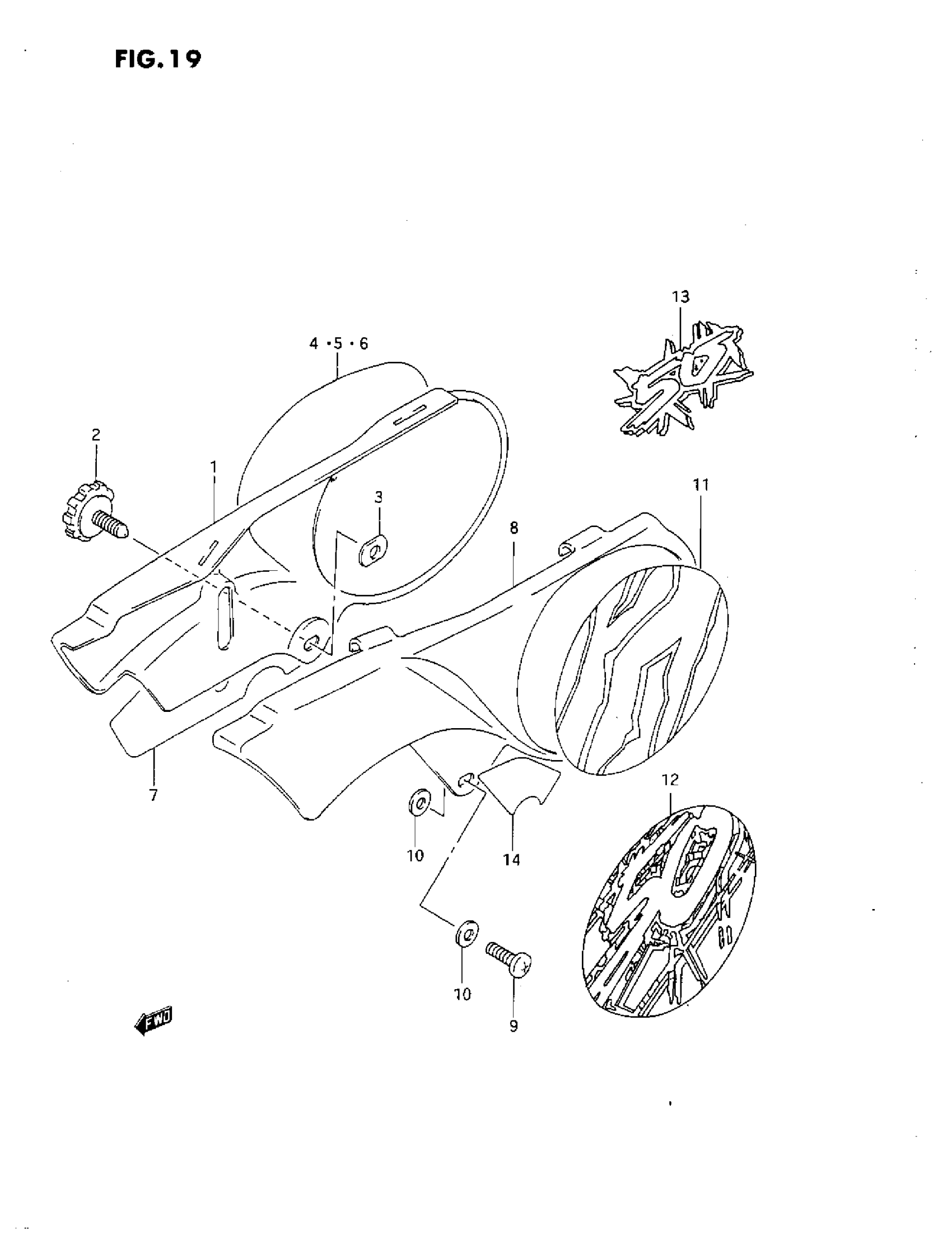

Suzuki JR50 (1993) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL N

47111-04420-25Y

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL P/R

47111-04420-30H

Unavailable

2

KNOB

47130-33101

$9.32

3

STOPPER, KNOB

09152-06002

$1.67

4

TAPE, FRAME COVER RH | MODEL N

68135-04420-L59

Unavailable

5

TAPE, FRAME COVER RH | MODEL P

68135-04430-A4J

Unavailable

6

EMBLEM RH | MODEL R This part replaces 68140-04400-C3A.

68140-04400-D2D

Unavailable

7

EMBLEM, LOWER RH

68131-04410

Unavailable

8

COVER, FRAME LH (YELLOW) | MODEL N

47211-04420-25Y

Unavailable

8

COVER, FRAME LH (WHITE) | MODEL P/R

47211-04420-30H

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

TAPE, FRAME COVER LH | MODEL N

68145-04420-L59

Unavailable

12

TAPE, FRAME COVER LH | MODEL P

68145-04430-A4J

Unavailable

13

EMBLEM RH | MODEL R This part replaces 68140-04400-C3A.

68140-04400-D2D

Unavailable

14

EMBLEM, LOWER LH

68141-04410

Unavailable
