1993 Suzuki JR50 Cylinder Diagram

← All diagrams

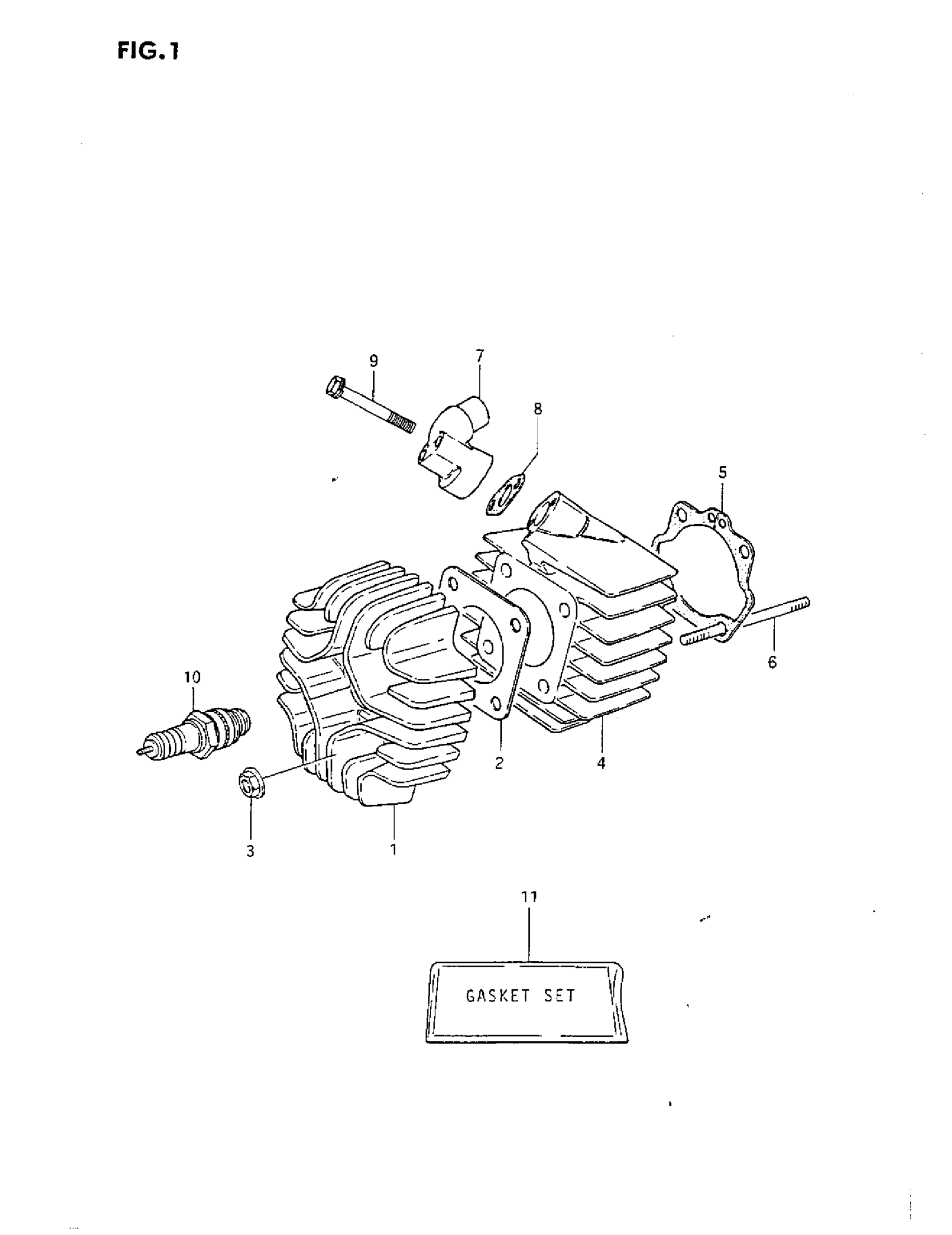

Find the part on the Cylinder diagram for your 1993 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki JR50 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER

11111-04001

1
Out of stock

2

GASKET, CYLINDER HEAD

11141-04000

1
Out of stock

3

NUT | MODEL N/P This part replaces 09159-06017.

08319-31067

4
Out of stock

3

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

4
Out of stock

4

CYLINDER This part replaces 11211-04001.

11211-04002-0F0

1
Out of stock

5

GASKET, CYLINDER

11241-04010

1
Out of stock

6

STUD BOLT (L:90)

09108-06108

4
Out of stock

7

PIPE, INTAKE

13111-04001

1

$20.23

In stock

8

1

$2.93

In stock

9

BOLT | MODEL N/P

01570-06457

2
Out of stock

9

2

$3.30

In stock

10

SPARK PLUG (NGK, BP4H) | MODEL N/P

09482-00290

1
Out of stock

10

SPARK PLUG W14F | MODEL N/P This part replaces 09482-00138.

09482-00186

1
Out of stock

10

SPARK PLUG (NGK, BPR4HS) | MODEL R

09482-00205

1
Out of stock

10

SPARK PLUG (NGK,BPR4HS) | MODEL R This part replaces 09482-00206.

09482-00205

1
Out of stock

11

GASKET SET | MODEL N This part replaces 11401-04810.

11401-04811

1
Out of stock

11

GASKET SET | MODEL P/R

11401-04811

1
Out of stock
