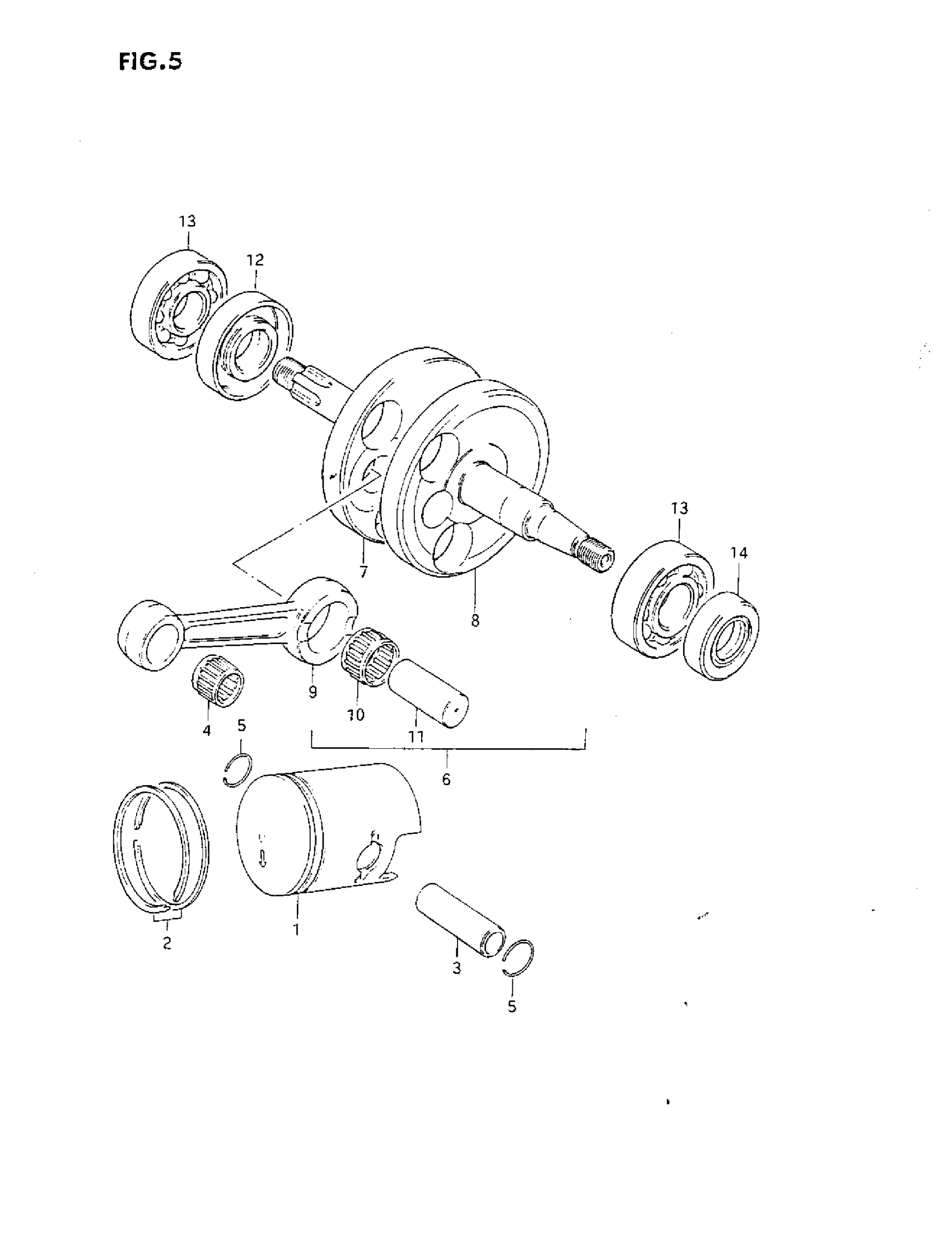

Suzuki JR50 (1993) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (SLD)

12110-43000

$58.48

1

PISTON SET (OS:0.5) | OPT This part replaces 12110-43000-050.

12100-35611-050

$77.92

1

PISTON SET (OS:1.0) | OPT This part replaces 12110-43000-100.

12100-35611-100

$93.43

2

RING SET, PISTON (STD) | MODEL N This part replaces 12140-43000.

12140-16B10

$22.39

2

RING SET, PISTON (STD) | MODEL P/R

12140-16B10

$22.39

2

RING SET, PISTON (OS:0.5) | OPT

12140-46110-050

$28.25

2

RING SET, PISTON (OS:1.0) | OPT

12140-46110-100

$28.38

3

PIN, PISTON

12151-04700

$7.22

4

BEARING (12X16X16) This part replaces 09263-12020.

09263-12023

$10.19

5

SNAP RING

09381-12001

$1.49

6

CRANKSHAFT ASSY

12200-04401

Unavailable

7

CRAWSHAFT, RH

12221-04400

Unavailable

8

CRANKSHAFT, LH

12261-04000

Unavailable

9

ROD, CONNECTING

12161-04001

$75.58

10

BEARING

09263-15014

$14.07

11

PIN, CRANK

12211-04000

$16.78

12

SEAL,OIL(22X40X This part replaces 09283-22001.

09283-22037

$3.88

13

BEARING (17X40X12)

09262-17023

$16.75

14

OIL SEAL CRANKS This part replaces 09283-17010.

09283-17012

$7.31
