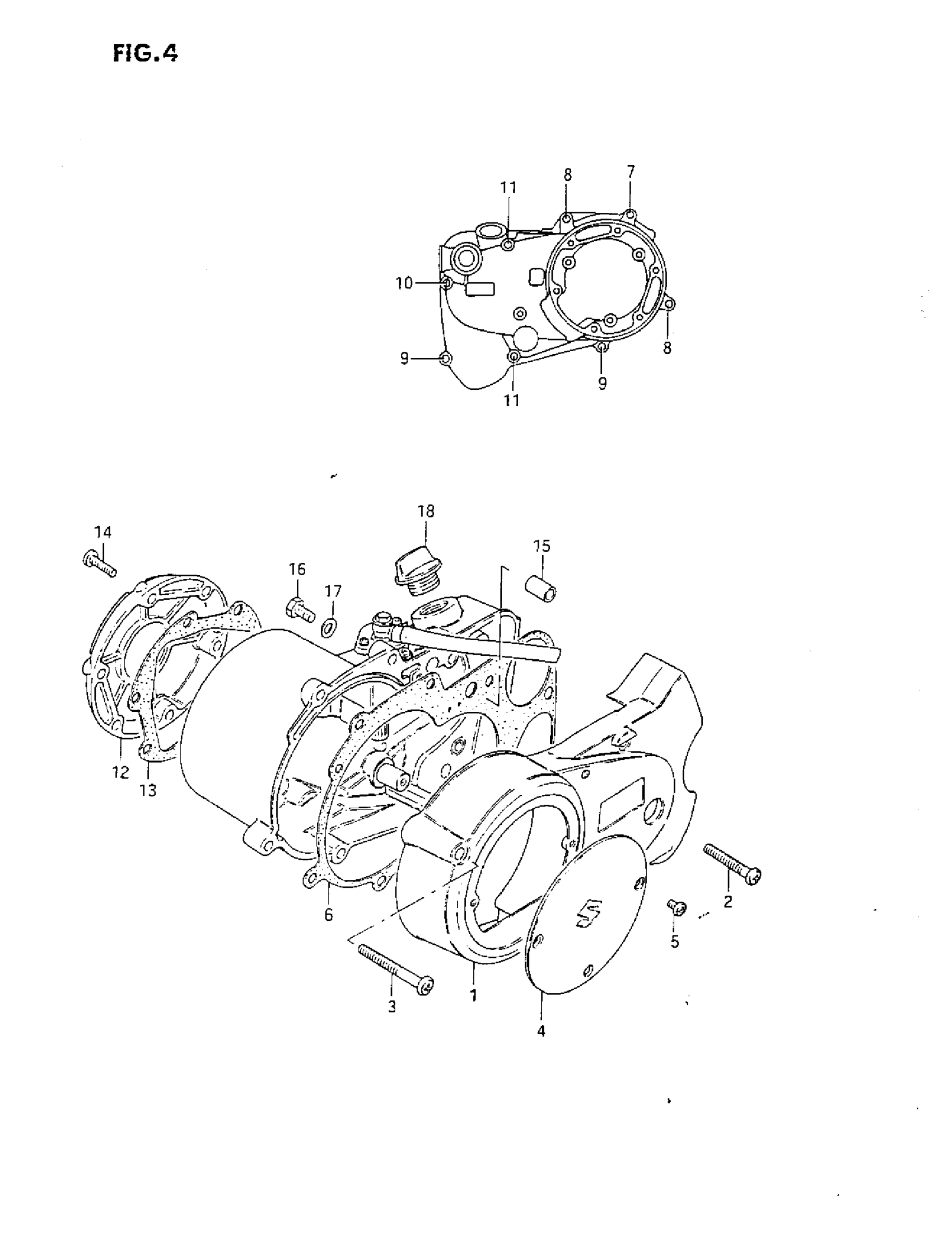

Suzuki JR50 (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, MAGNETO

11351-04400

$115.80

2

SCREW | MODEL N/P This part replaces 02112-06355.

02112-0635B

$2.19

2

SCREW | MODEL R This part replaces 02112-06353.

02112-0635B

$2.19

3

SCREW | MODEL N/P This part replaces 02112-06455.

02112-0645B

$2.19

3

SCREW | MODEL R This part replaces 02112-06453.

02112-0645B

$2.19

4

CAP, MAGNETO INSPECTION This part replaces 11381-04400.

11381-04401

Unavailable

5

SCREW | MODEL N/P This part replaces 02112-04065.

02112-0406B

$1.55

5

SCREW | MODEL R This part replaces 02112-04063.

02112-0406B

$1.55

6

GASKET, CLUTCH COVER

11482-04010

$12.99

7

SCREW | MODEL N/P This part replaces 02112-06205.

02112-0620A

$1.49

7

SCREW | MODEL R This part replaces 02112-06203.

02112-0620A

$1.49

8

SCREW | MODEL N/P This part replaces 02112-06255.

02112-0625A

$1.80

8

SCREW | MODEL R This part replaces 02112-06253.

02112-0625A

$1.80

9

SCREW, SEAT SUPPORT BRK | MODEL N/P This part replaces 02112-06305.

02112-0630A

$1.78

9

SCREW, SEAT SUPPORT BRK | MODEL R This part replaces 02112-06303.

02112-0630A

$1.78

10

SCREW | MODEL N/P This part replaces 02112-06455.

02112-0645B

$2.19

10

SCREW | MODEL R This part replaces 02112-06453.

02112-0645B

$2.19

11

SCREW | MODEL N/P This part replaces 02112-06504.

02112-0650B

$2.42

11

SCREW | MODEL R This part replaces 02112-06503.

02112-0650B

$2.42

12

CAP, CLUTCH RELEASE This part replaces 11387-04400.

11387-04401

Unavailable

13

GASKET, RELEASE CAP | MODEL N This part replaces 11495-04400.

11495-04410

$5.92

13

GASKET, RELEASE CAP | MODEL P/R

11495-04410

$5.92

14

SCREW | MODEL N/P This part replaces 02112-06205.

02112-0620A

$1.49

14

SCREW | MODEL R This part replaces 02112-06203.

02112-0620A

$1.49

15

PIN

04211-09129

$1.65

16

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

17

GASKET

09168-06001

$1.49

18

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02
