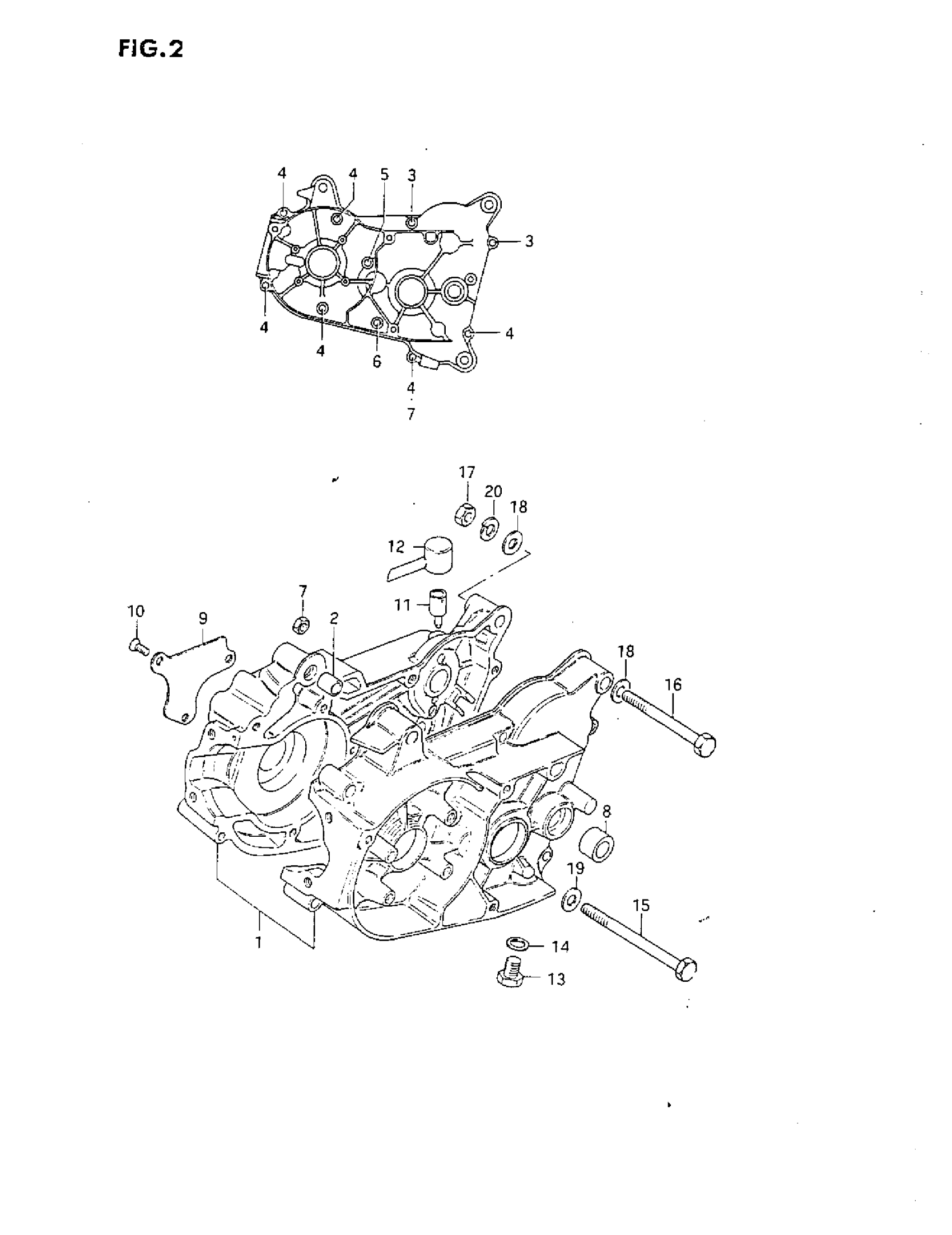

Suzuki JR50 (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-04840.

11300-04844

Unavailable

2

PIN

04211-11129

$1.76

3

SCREW | MODEL N/P This part replaces 02112-06308.

02112-06307

$1.97

3

SCREW, SEAT SUPPORT BRK | MODEL R This part replaces 02112-06303.

02112-0630A

$1.78

4

SCREW | MODEL N/P

02112-06357

$1.78

4

SCREW | MODEL R This part replaces 02112-06353.

02112-0635B

$2.19

5

SCREW | MODEL N/P

02112-06407

$1.78

5

SCREW | MODEL R This part replaces 02112-06403.

02112-0640A

$1.96

6

SCREW | MODEL N/P This part replaces 02112-06558.

02112-06557

$2.53

6

SCREW | MODEL R This part replaces 02112-06553.

02112-0655B

$2.53

7

.NUT | MODEL N/P This part replaces 08310-12068.

08310-00067

$2.13

7

NUT | MODEL R This part replaces 08310-00063.

08310-0006A

$1.84

8

BUSH, COUNTER SHAFT

09304-10005

$5.65

9

PLATE, OIL RESERVOIR

12521-04000

Unavailable

10

SCREW | MODEL N/P This part replaces 02122-04108.

02122-0410A

$1.49

10

SCREW | MODEL R This part replaces 02122-04103.

02122-0410A

$1.49

11

PLUG, BREATHER

24821-09001

$9.33

12

BREATHER PLUG C This part replaces 24822-20000.

24822-20001

$3.70

13

PLUG, OIL DRAIN

09247-10001

$2.20

14

GASKET

09168-10002

$2.13

15

BOLT | MODEL N/P This part replaces 01107-08858.

01500-0885B

$4.25

15

BOLT | MODEL R This part replaces 01500-08853.

01500-0885B

$4.25

16

BOLT | MODEL N/P This part replaces 01107-08708.

01500-0870B

$3.49

16

BOLT | MODEL R This part replaces 01500-08703.

01500-0870B

$3.49

17

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$2.13

17

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

18

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$2.13

18

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

19

WASHER | MODEL N/P This part replaces 09160-08030.

09160-08128

$2.80

19

WASHER | MODEL R This part replaces 09160-08080.

09160-08128

$2.80

20

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$2.13

20

LOCK WASHER | MODEL R This part replaces 08321-01083.

08321-0108A

$1.84
