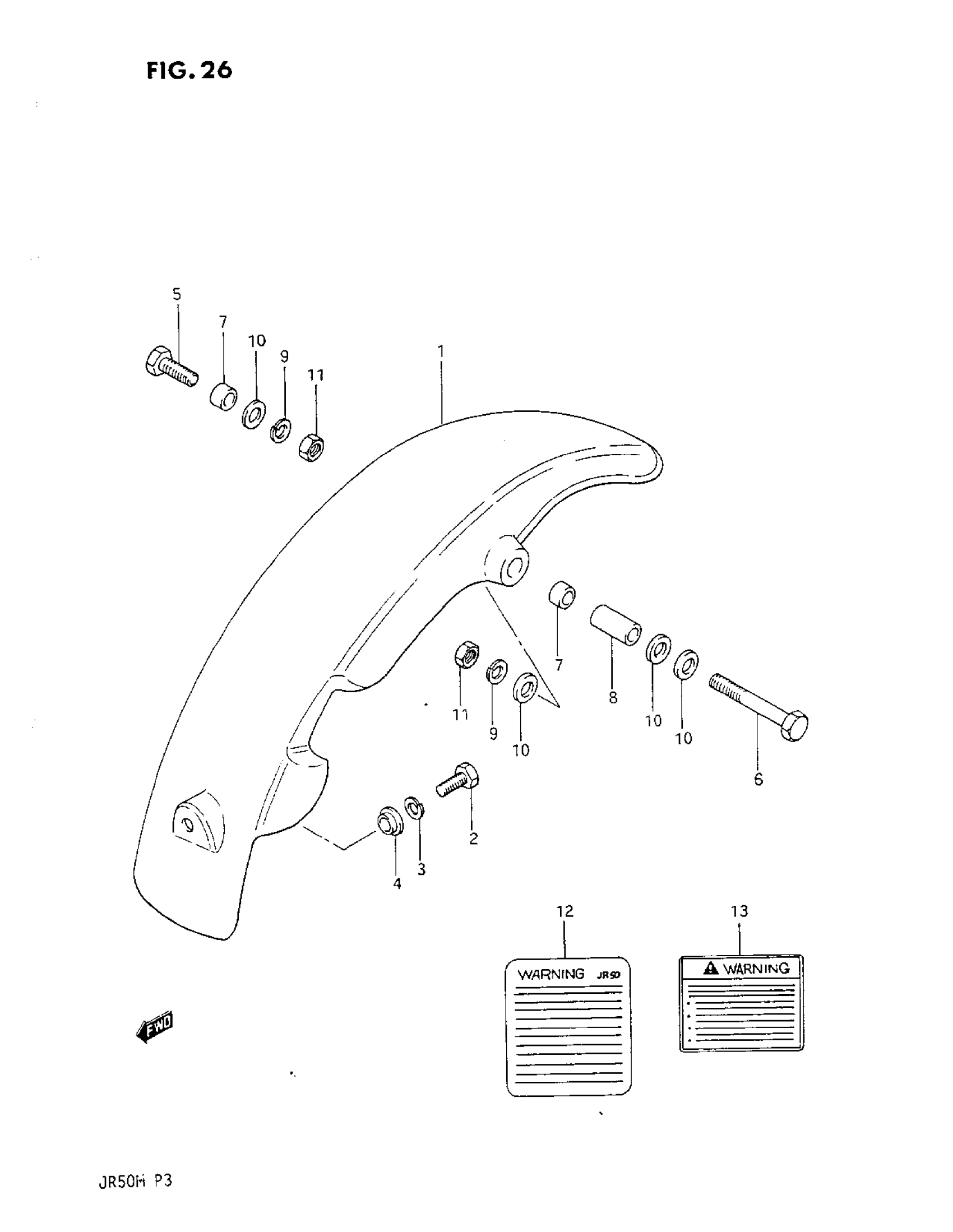

Suzuki JR50 (1987) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | MODEL F/G This part replaces 63111-04411-163.

63111-04411-25Y

$21.09

1

FENDER, REAR (YELLOW) | MODEL H/J/K/L/M

63111-04411-25Y

$21.09

2

BOLT This part replaces 01107-06127.

01500-06127

$1.97

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

WASHER

09169-06011

$3.45

5

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

6

BOLT This part replaces 01107-08508.

01500-08507

$3.05

7

SPACER This part replaces 63147-04410.

09180-08037

$2.97

8

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

WASHER This part replaces 08322-21088.

08322-01087

$2.13

11

NUT This part replaces 08310-12088.

08310-00087

$2.13

12

LABEL, WARNING This part replaces 68369-04420.

68369-04421

Unavailable

13

LABEL,GENERAL W This part replaces 68319-14D00.

68319-33E02

$7.25
