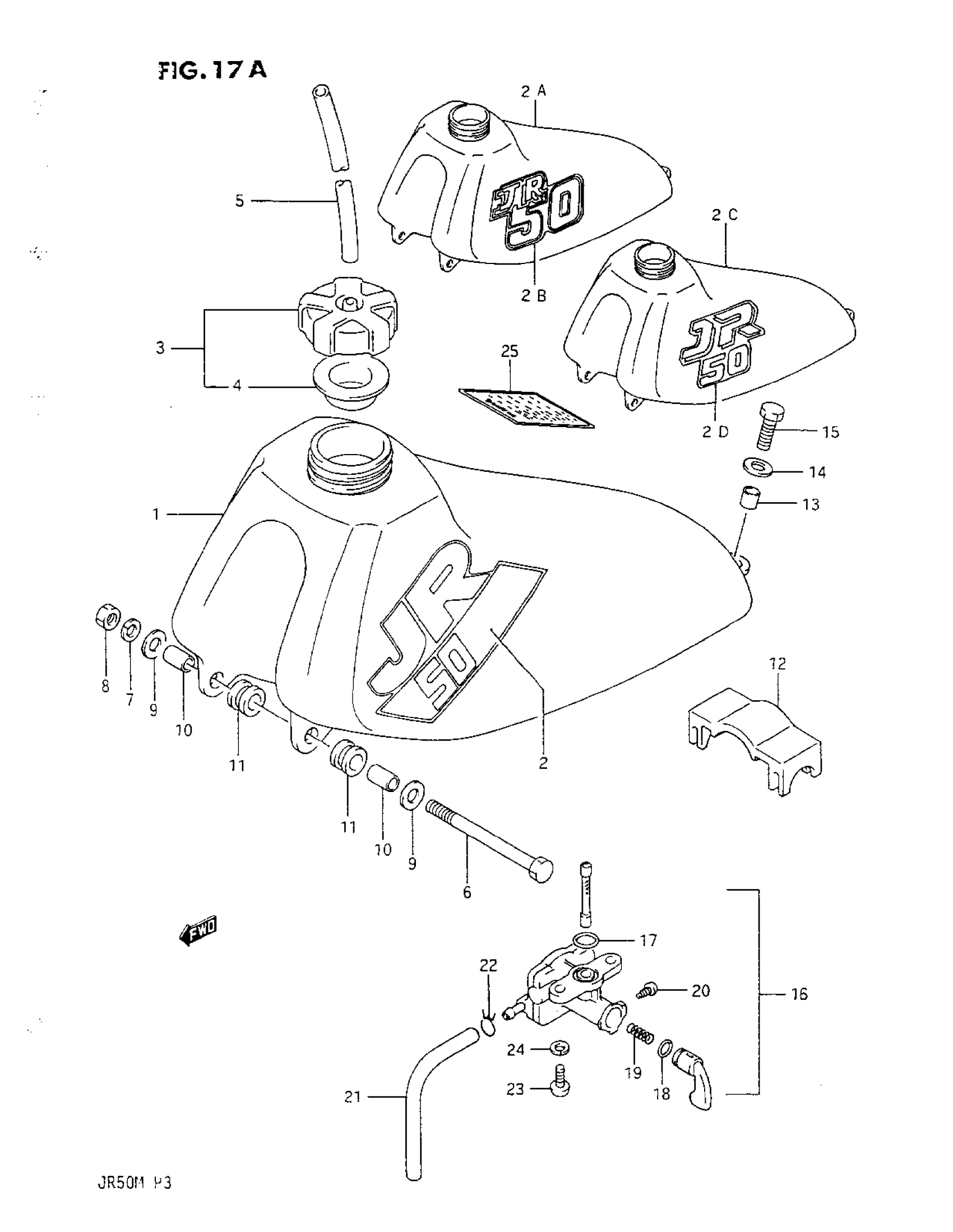

Suzuki JR50 (1987) FUEL TANK (J/K/L) Diagram

#

Description
Price

1

TANK , FUEL (YELLOW) | MODEL J This part replaces 44100-04400-25Y.

44110-04420-25Y

Unavailable

2

TAPE SET, FUEL TANK | MODEL J

68110-04490-9UR

Unavailable

2

TANK , FUEL (YELLOW) | MODEL K This part replaces 44100-09A00-25Y.

44110-04420-25Y

Unavailable

2

TAPE, FUEL TANK | MODEL K

68115-09A00-0FB

Unavailable

2

TANK, FUEL (YELLOW) | MODEL L

44110-04420-25Y

Unavailable

2

EMBLEM | MODEL L

68120-04400-3SG

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-40810.

44200-40822

$14.76

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

HOSE,5X10X600 | MODEL J/K This part replaces 09352-50823-240.

44421-13ER0

$10.06

5

HOSE,5X10X600 | MODEL L This part replaces 09352-50823-300.

44421-13ER0

$10.06

6

BOLT This part replaces 01107-06908.

01500-06907

$4.17

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

.NUT This part replaces 08310-11067.

08310-00067

$2.13

9

WASHER (6.5X18X1.0)

09160-06028

$1.49

10

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

11

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

12

CUSHION, UPPER

44542-04420

$9.00

13

SPACER This part replaces 09180-06111.

09180-06260

$3.37

14

WASHER (6.5X18X1.0)

09160-06028

$1.49

15

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

16

COCK ASSY, FUEL

44300-04420

$56.98

17

O-RING, JOINT

44348-41370

$1.91

18

O-RING, LEVER

44353-41370

$4.37

19

SPRING This part replaces 44357-41370.

44357-32470

$2.21

20

SCREW

44343-41370

$2.22

21

HOSE, FUEL | MODEL J/K

09352-50823-150

Unavailable

21

HOSE,5X10X600 | MODEL L This part replaces 09352-50823-300.

44421-13ER0

$10.06

22

CLIP

09401-08401

$1.54

23

SCREW

02112-06167

$1.49

24

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

25

LABEL, WARNING This part replaces 68369-04420.

68369-04421

Unavailable
