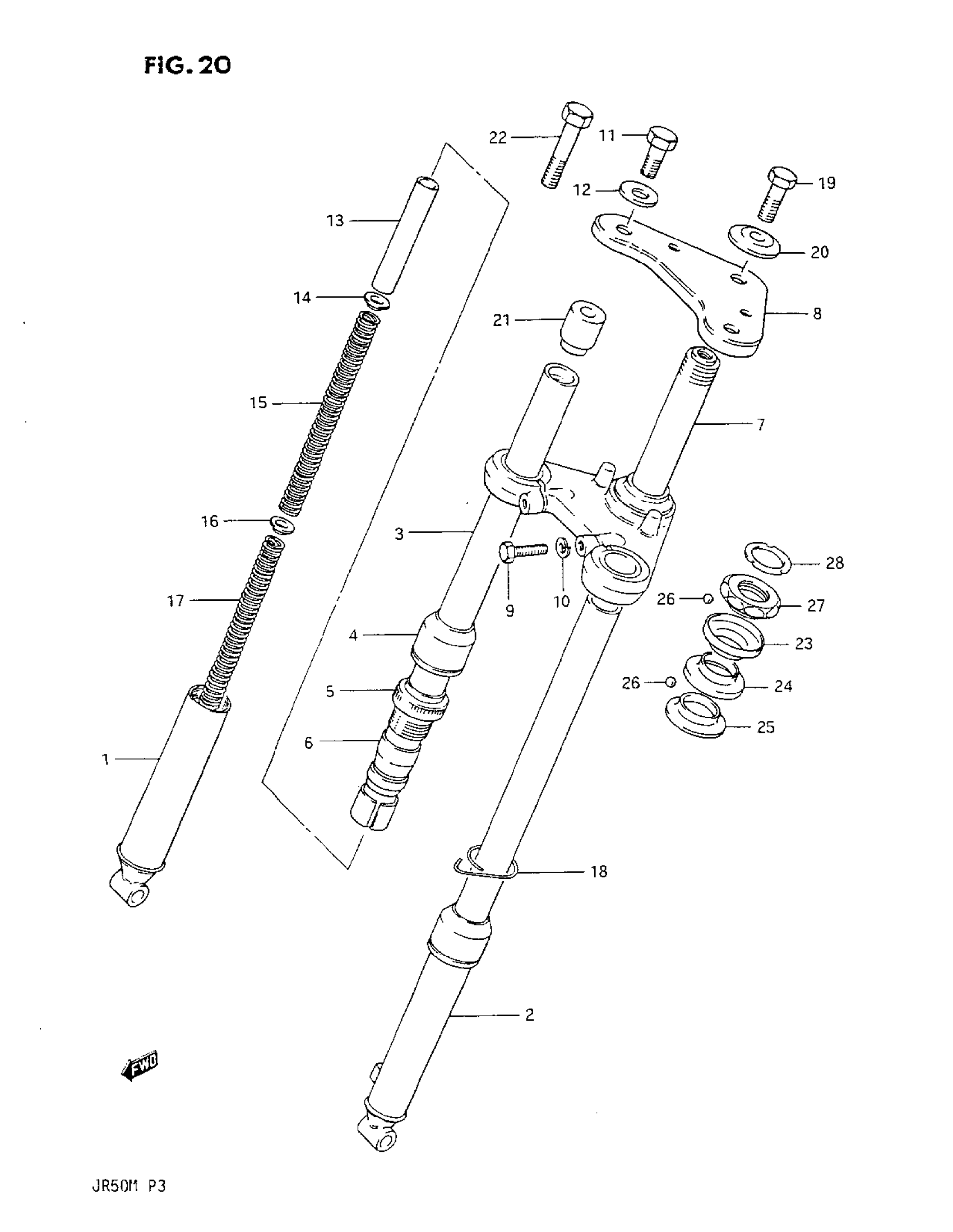

Suzuki JR50 (1987) FRONT FORK Diagram

#

Description
Price

1

FORK ASSY, FRONT (SILVER) This part replaces 51100-04430-126.

51100-04430-13L

Unavailable

1

OUTER TUBE. RH (SILVER) This part replaces 51130-04411.

51130-04411-13L

$171.49

2

OUTER TUBE. LH (SILVER) This part replaces 51140-04411.

51140-04411-13L

Unavailable

3

INNER TUBE

51110-04420

$50.23

4

DUST SEAL

51173-04410

$10.34

5

NUT, OUTER

51150-04410

$18.43

6

STOPPER

51193-04410

$1.65

7

STEERING STEM

51410-04430

Unavailable

8

STEERING STEM HEAD

51310-04430

$30.22

9

BOLT This part replaces 01107-08258.

01500-08257

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

BOLT

51352-04420

Unavailable

12

WASHER (36X10.5X2.3)

51356-07010

$6.65

13

SPACER

51176-04420

Unavailable

14

GUIDE, SPRING, NO.1

51172-04420

Unavailable

15

SPRING, NO.1

51171-04420

$8.25

16

GUIDE, SPRING, NO.2

51172-04410

$4.10

17

SPRING, NO.2

51184-04420

$7.06

18

CLIP

51572-04410

Unavailable

19

BOLT

51351-04420

$4.10

20

WASHER (33.5X10.5X4.2)

51356-04420

Unavailable

21

SPACER

52331-04420

$11.95

22

BOLT This part replaces 52332-04420.

09100-10302

$4.82

23

RACE,STEERING I This part replaces 51611-02200.

51611-16A00

$11.38

24

RACE,STTER INNE This part replaces 51612-02200.

51612-29C00

$12.53

25

RACE,STEERING O This part replaces 51622-29C00.

51622-29C20

$11.30

26

STEEL BALL

06111-05004

$1.49

27

RACE,STEERING O This part replaces 51621-02200.

51621-16A01

$13.05

28

NUT, STEERING STEM This part replaces 51631-04410.

99800-10420

Unavailable
