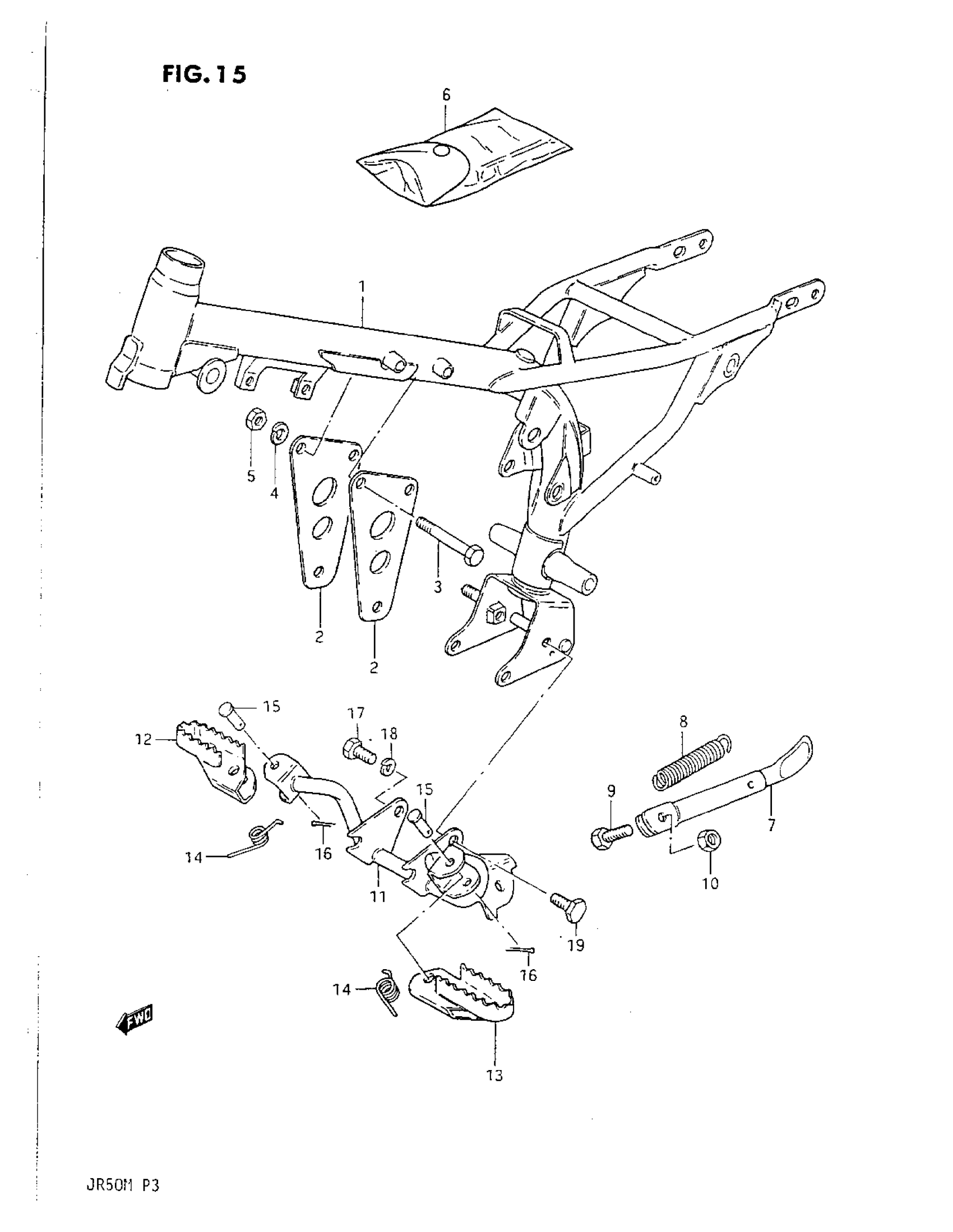

Suzuki JR50 (1987) FRAME-FOOTREST Diagram

#

Description
Price

1

FRAME (BLUE)

41100-04431-19F

Unavailable

2

PLATE, MOUNTING

41991-04410

Unavailable

3

BOLT This part replaces 01107-08708.

01500-0870B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

NUT This part replaces 08310-11088.

08310-00087

$2.13

6

TOOL ASSY This part replaces 09800-03800.

09800-21080

$36.42

7

STAND, PROP (BLACK) | MODEL F/G

42300-04420-019

$275.62

7

STAND, PROP (BLUE) | MODEL H/J/K/L/M

42300-04420-19F

Unavailable

8

SPRING

09443-14017

$3.04

9

BOLT (8X22) This part replaces 09100-08145.

09100-08274

$3.78

10

NUT This part replaces 08310-11088.

08310-00087

$2.13

11

BAR, FRONT FOOTREST

43510-04411

Unavailable

12

FOOTREST, RH (BLACK) This part replaces 43550-46000-19F.

43550-46000-019

$20.27

13

FOOTREST, LH (BLACK) This part replaces 43560-46000-19F.

43560-46000-019

$20.97

14

SPRING

09448-14012

$3.04

15

PIN

09200-08002

$2.05

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

BOLT, LH

09100-08143

$2.29
