Description

Price

1

UNIT & COIL ASSY, IGNITION This part replaces 33410-17310.

33410-35340

$193.67

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

SCREW This part replaces 02112-06258.

02112-06257

$1.78

4

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

5

GUIDE, HIGH TENSION CORD

58626-04410

$3.17

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

7

SWITCH ASSY, ENGINE STOP | MODEL F/G/H/J/K This part replaces 37820-04440.

37820-14X50

$48.54

7

SWITCH ASSY, ENGINE STOP | MODEL L/M This part replaces 37820-27C00.

37820-14X50

$48.54

8

LEAD WIRE | MODEL F/G/H/J/K This part replaces 36851-04410.

36851-41200

Unavailable

9

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

10

BAND (L:120)

09407-12402

$3.04

11

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

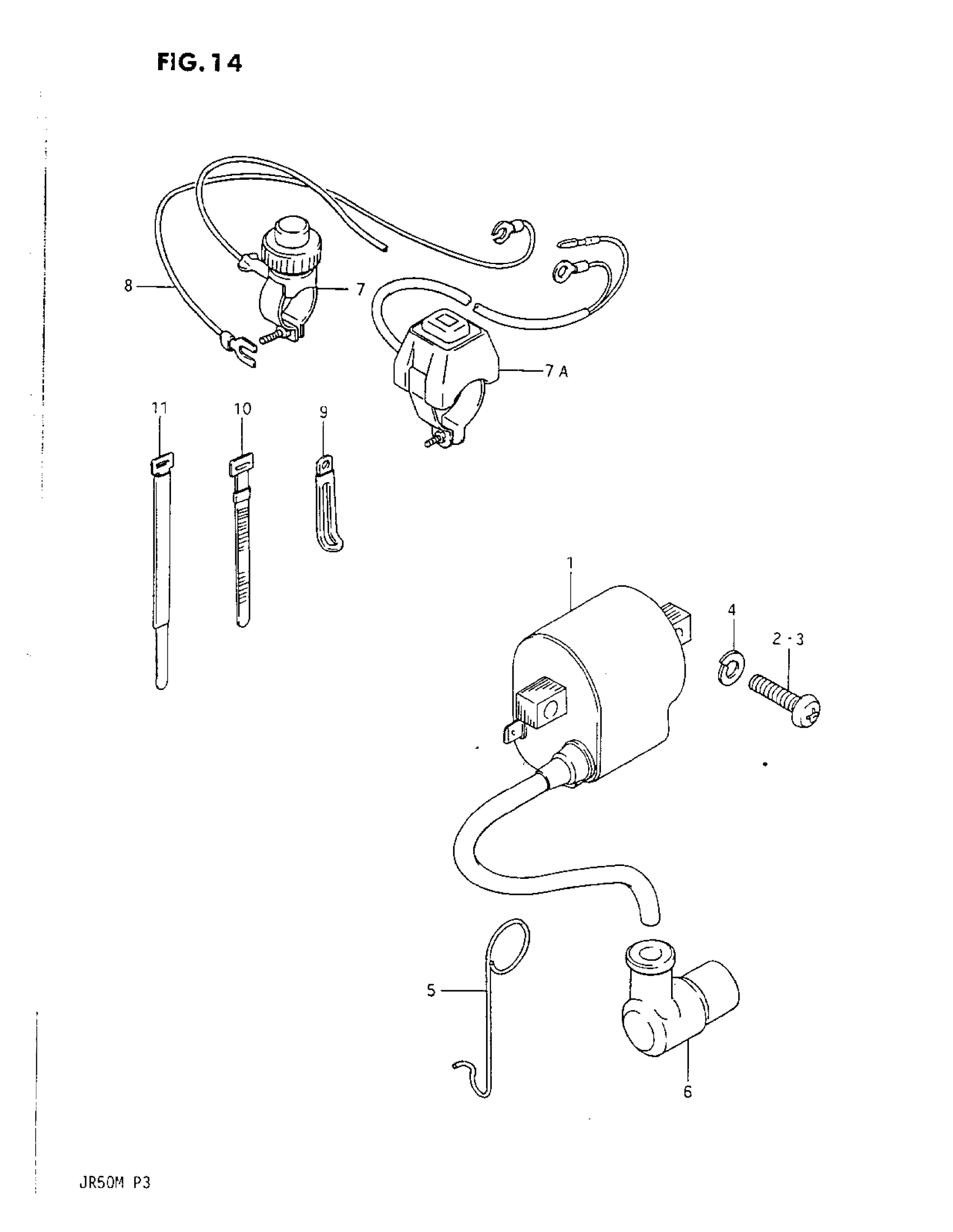

Suzuki JR50 (1987) ELECTRICAL Diagram
