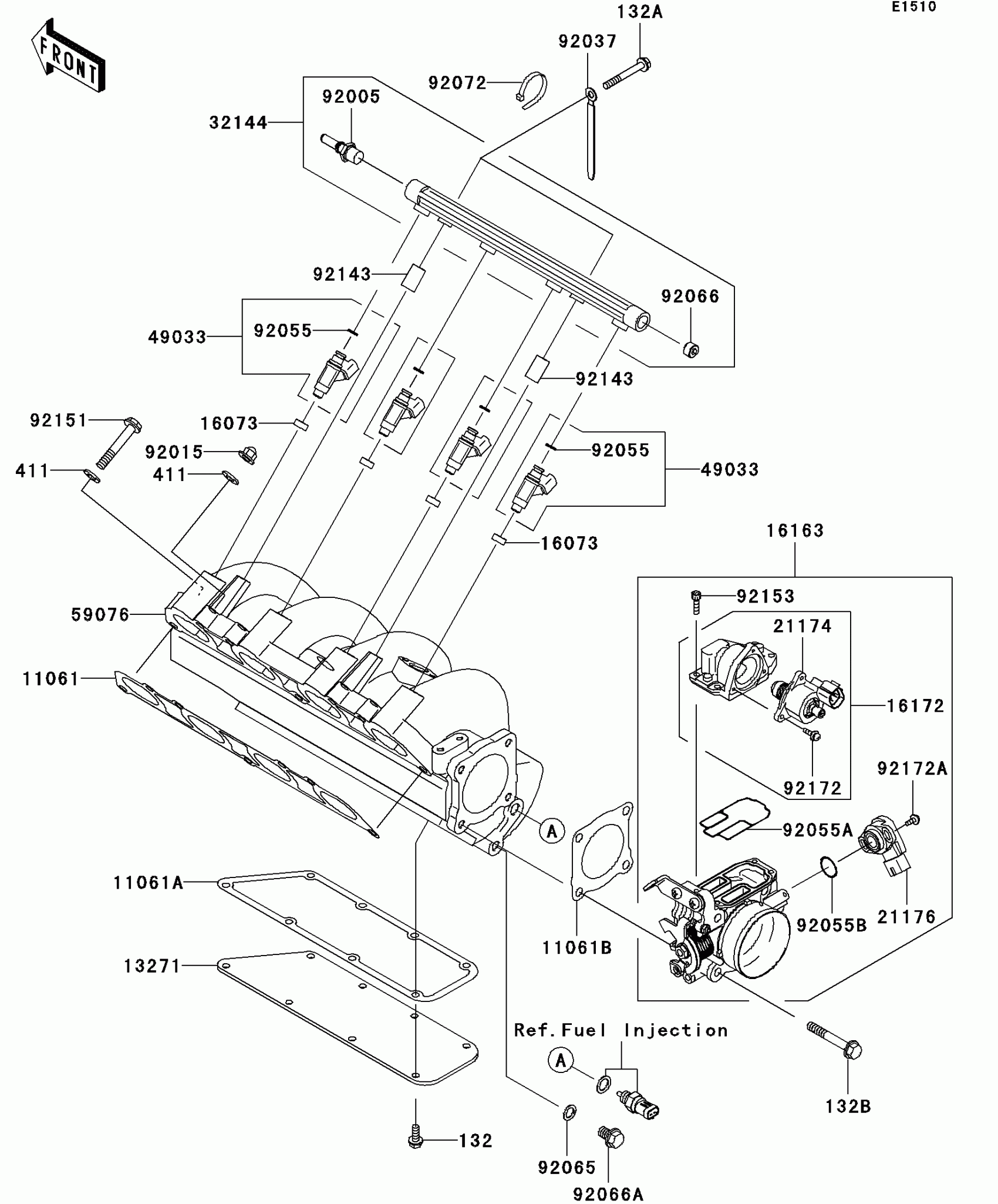

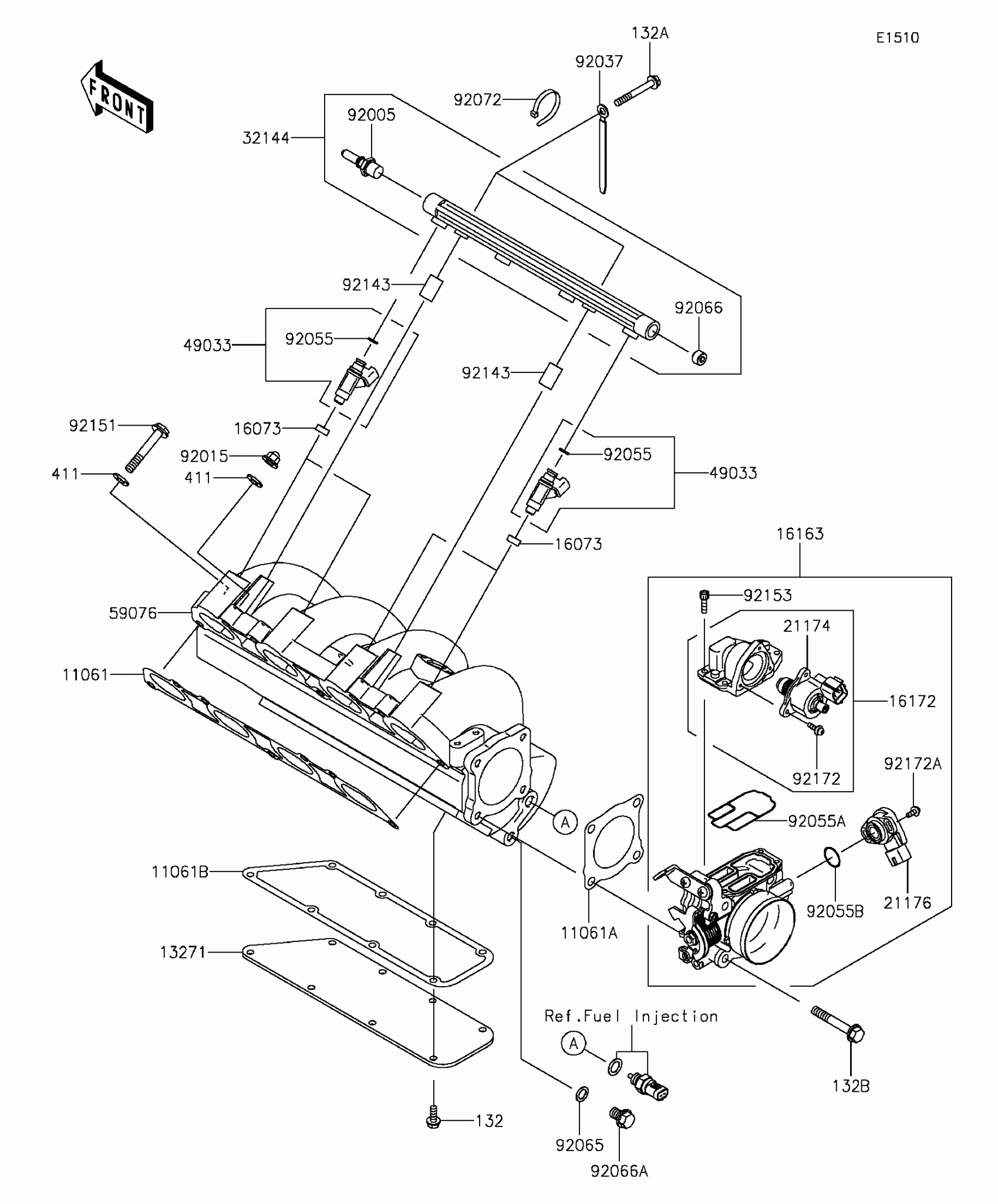

Kawasaki JET SKI® Ultra® LX Throttle Diagram

#

Description
Price

11061

GASKET,MANIFOLD

11061-0813

$25.79

11061A

GASKET,THROTTLE

11061-1331

$10.99

11061B

GASKET,PLATE

11061-3737

$21.01

13271

PLATE,MANIFOLD

13271-3899

$46.95

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY

16163-0757

$1,303.55

16172

ACTUATOR

16172-0561

$357.12

21174

MOTOR-ELECTRIC,STM

21174-0555

$235.03

21176

SENSOR,TPS

21176-3762

$94.30

32144

PIPE-ASSY

32144-3706

$135.90

49033

NOZZLE-INJECTION

49033-3707

$116.95

59076

MANIFOLD-INTAKE

59076-3729

$1,058.27

92005

FITTING

92005-3754

$37.51

92015

NUT,CAP,8MM

92015-1371

$5.00

92037

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-3773

$16.95

92055B

RING-O

92055-3774

$16.95

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-3778

$11.06

92066A

PLUG

92066-3781

$7.58

92072

BAND,L=188.85

92072-0105

$1.73

92143

COLLAR

92143-3731

$6.38

92151

BOLT,8X60

92151-3730

$7.27

92153

BOLT

92153-3723

$3.90

92172

SCREW

92172-3710

$3.90

92172A

SCREW

92172-3711

$3.90

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$4.12

132A

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.76

132B

BOLT-FLANGED-SMALL,8X55

132BD0855

$3.13

411

WASHER-PLAIN,8MM

411S0800

$3.09
