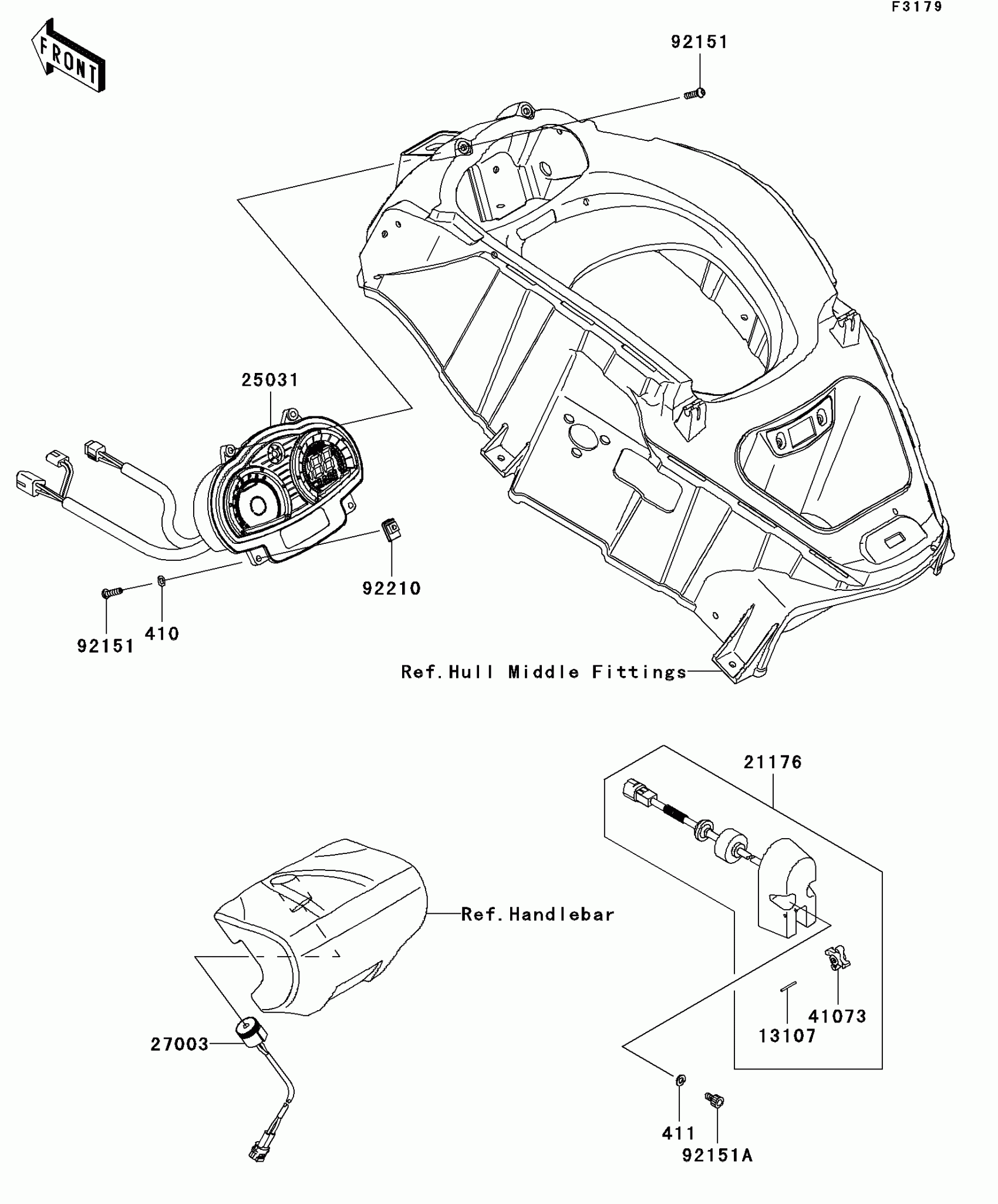

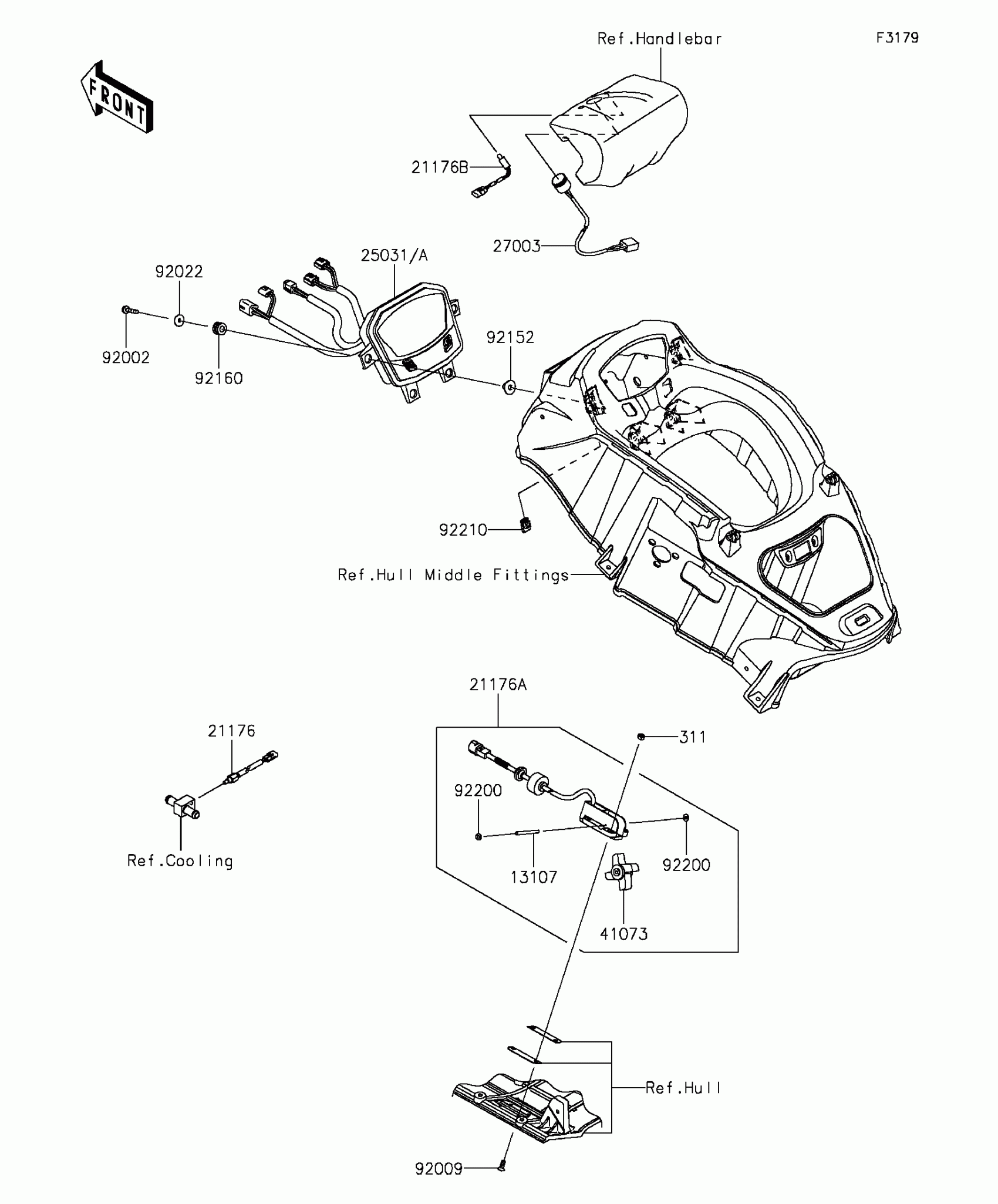

Kawasaki JET SKI® ULTRA® LX Meters Diagram

Description

Price

13107

SHAFT

13107-3807

$5.70

21176

SENSOR,TEMP

21176-0072

$74.54

21176A

SENSOR,SPEED

21176-3775

$169.59

21176B

SENSOR,AIR TEMP

21176-3778

$93.24

25031A

METER-ASSY

25031-0441

Unavailable

27003

HORN

27003-3706

$75.75

311

NUT-HEX,6MM

311R0600

$0.70

41073

WHEEL-ASSY,PADDLE

41073-3701

$16.84

92002

BOLT,6X25

92002-3714

$5.00

92009

SCREW,6X16

92009-3703

$4.31

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92152

COLLAR

92152-3755

$7.71

92160

DAMPER,10X20X12

92160-1167

$4.69

92200

WASHER

92200-3805

$3.85

92210

NUT,6MM

92210-3768

$5.79
