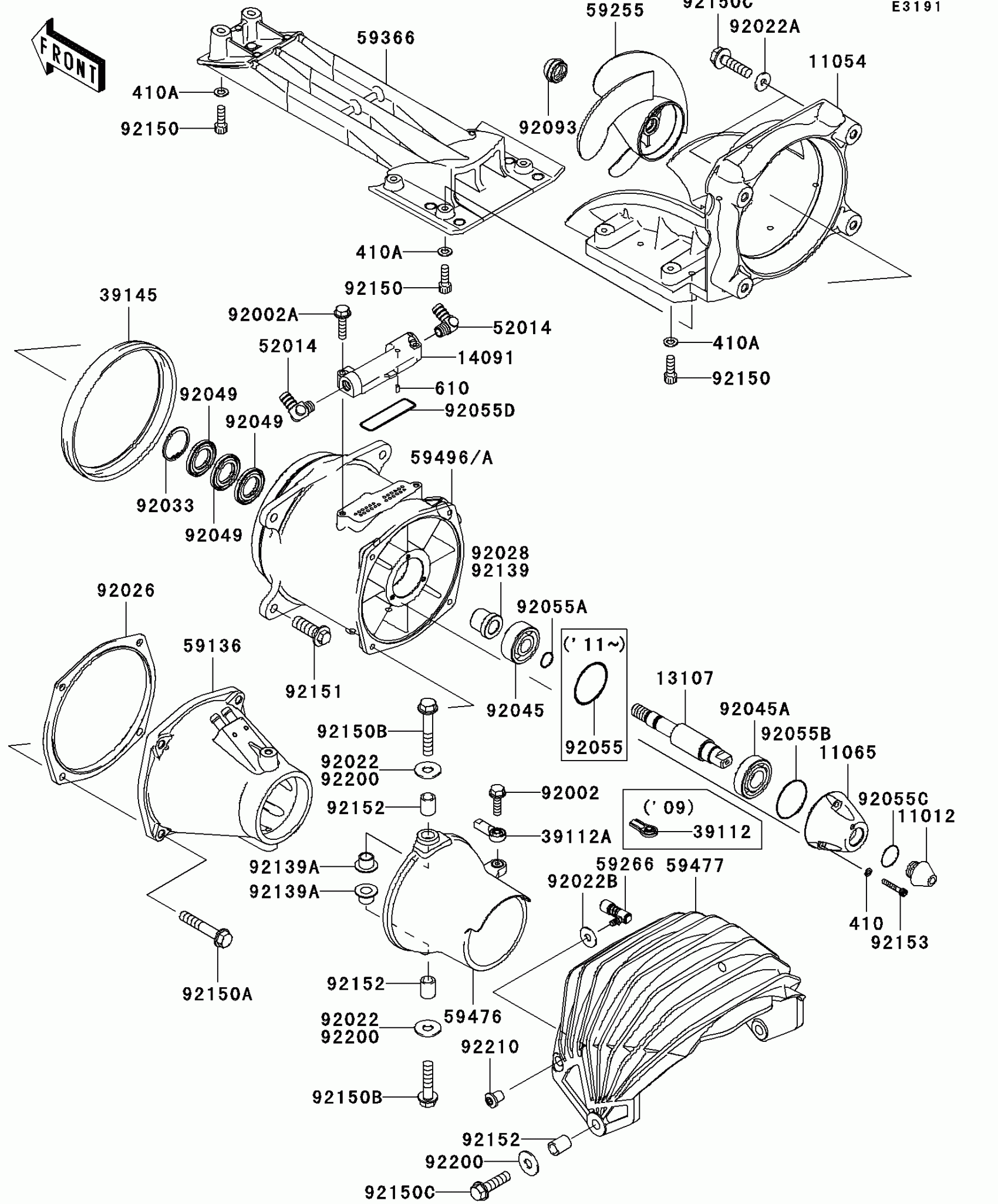

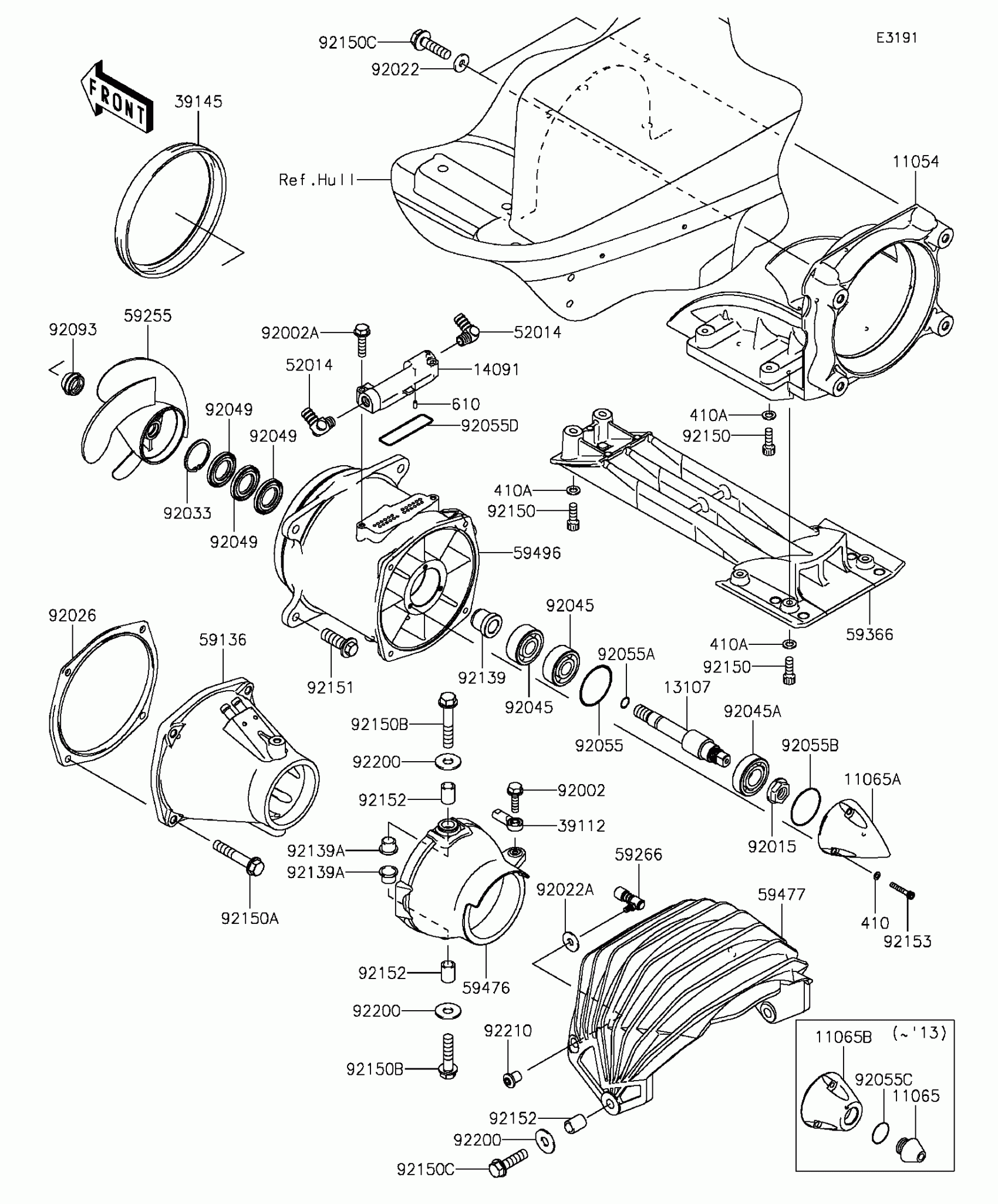

Kawasaki JET SKI® Ultra® LX Jet Pump Diagram

#

Description
Price

11012

CAP

11012-3786

Unavailable

11054

BRACKET,JET PUMP

11054-3709

$563.21

11065

CAP

11065-3733

$49.96

13107

SHAFT,JET PUMP

13107-3788

$94.25

14091

COVER,VANE GUIDE

14091-3817

$28.84

39112A

RODEND-TIE

39112-3707

$23.25

39145

TRIM-SEAL,VANE GUIDE

39145-3799

$56.36

52014

ELBOW

52014-3711

$30.12

59136

NOZZLE-PUMP

59136-3764

$154.42

59255

IMPELLER-COMP

59255-3734

$524.61

59266

JOINT-BALL

59266-3710

$39.65

59366

GRATE

59366-3723

$237.38

59476

NOZZLE-STRG

59476-3744

$305.17

59477

BUCKET-REVERSE

59477-3712

Unavailable

59496A

VANE-GUIDE

59496-3769

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92022B

WASHER

92022-567

$2.67

92026

SPACER,NOZZLE PUMP

92026-3748

$55.77

92033

RING-SNAP

92033-3730

$9.11

92045

BEARING-BALL,6303R-6

92045-3744

Unavailable

92045A

BEARING-BALL,62/22 2RS

92045-3745

Unavailable

92049

SEAL-OIL

92049-3739

$28.94

92055

RING-O,49.7X2.4

92055-0183

$2.41

92055A

RING-O,13.0X1.9

92055-1011

$7.62

92055B

RING-O

92055-3741

$3.32

92055C

RING-O

92055-3744

$2.91

92055D

RING-O,70.2X74.0X1.90

92055-3765

Unavailable

92093

SEAL

92093-3749

$4.96

92139

BUSHING

92139-0715

Unavailable

92139A

BUSHING

92139-3701

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,8X45

92150-3785

$7.27

92150B

BOLT,8X35

92150-3792

$7.34

92150C

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

92152

COLLAR,8.2X11.8X15

92152-3703

$7.68

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,6MM

92210-3789

$20.70

410

W-PLAIN-S,5MM

410S0500

$1.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

610

ROLLER,4X8

610A0408

$4.31
