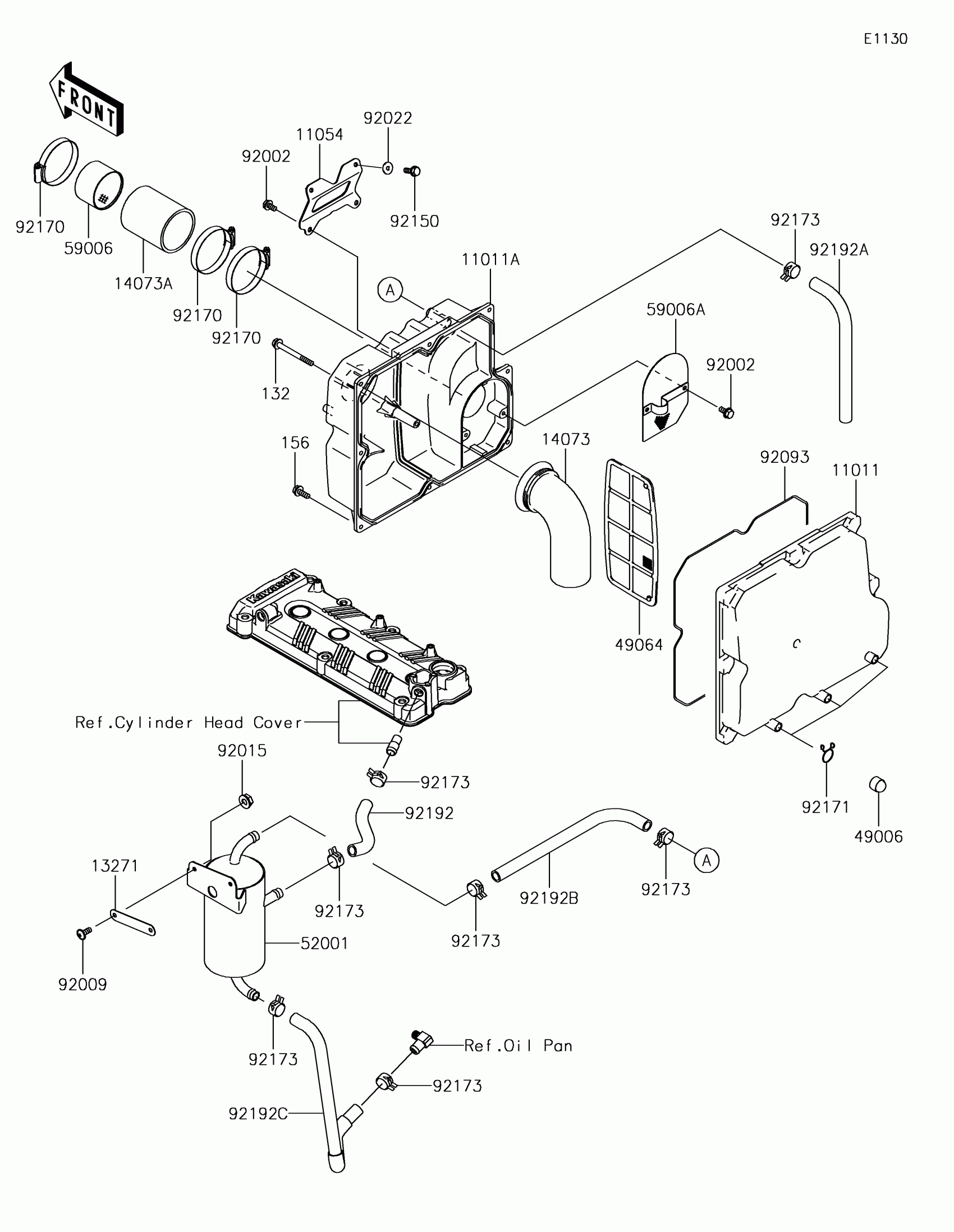

Kawasaki JET SKI® Ultra® LX Intake Silencer Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$115.63

11011A

CASE-AIR FILTER,FR

11011-3706

$105.09

11054

BRACKET,AIR BOX

11054-3744

$30.75

13271

PLATE

13271-3880

$5.00

14073

DUCT,AIR INLET

14073-3794

$17.65

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$5.59

49006

BOOT,DRAIN

49006-3718

$6.62

49064

FILTER-AIR

49064-3702

$23.30

52001

TANK-OIL

52001-3738

$73.81

59006

ARRESTER-FLAME

59006-0019

$304.03

59006A

ARRESTER-FLAME

59006-3720

$43.85

92002

BOLT,6X12

92002-3763

$4.69

92009

SCREW,6X20

92009-3870

$4.37

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92093

SEAL

92093-3766

$3.40

92150

BOLT,6X18

92150-3729

$4.69

92170

CLAMP

92170-3764

$10.35

92171

CLAMP,TUBE

92171-3710

Unavailable

92171A

CLAMP,BOOT

92171-3711

$3.87

92192

TUBE,HEAD-SEPARATOR

92192-3719

$9.13

92192A

TUBE,BLOWBY

92192-3725

$25.34

92192B

TUBE,OIL TANK-A/C

92192-3795

$26.53

92192C

TUBE,OIL TANK-OIL PAN

92192-3808

$40.14

132

BOLT-FLANGED-SMALL,6X60

132BD0660

$5.25

156

BOLT-WP,6X16

156R0616

$3.65
