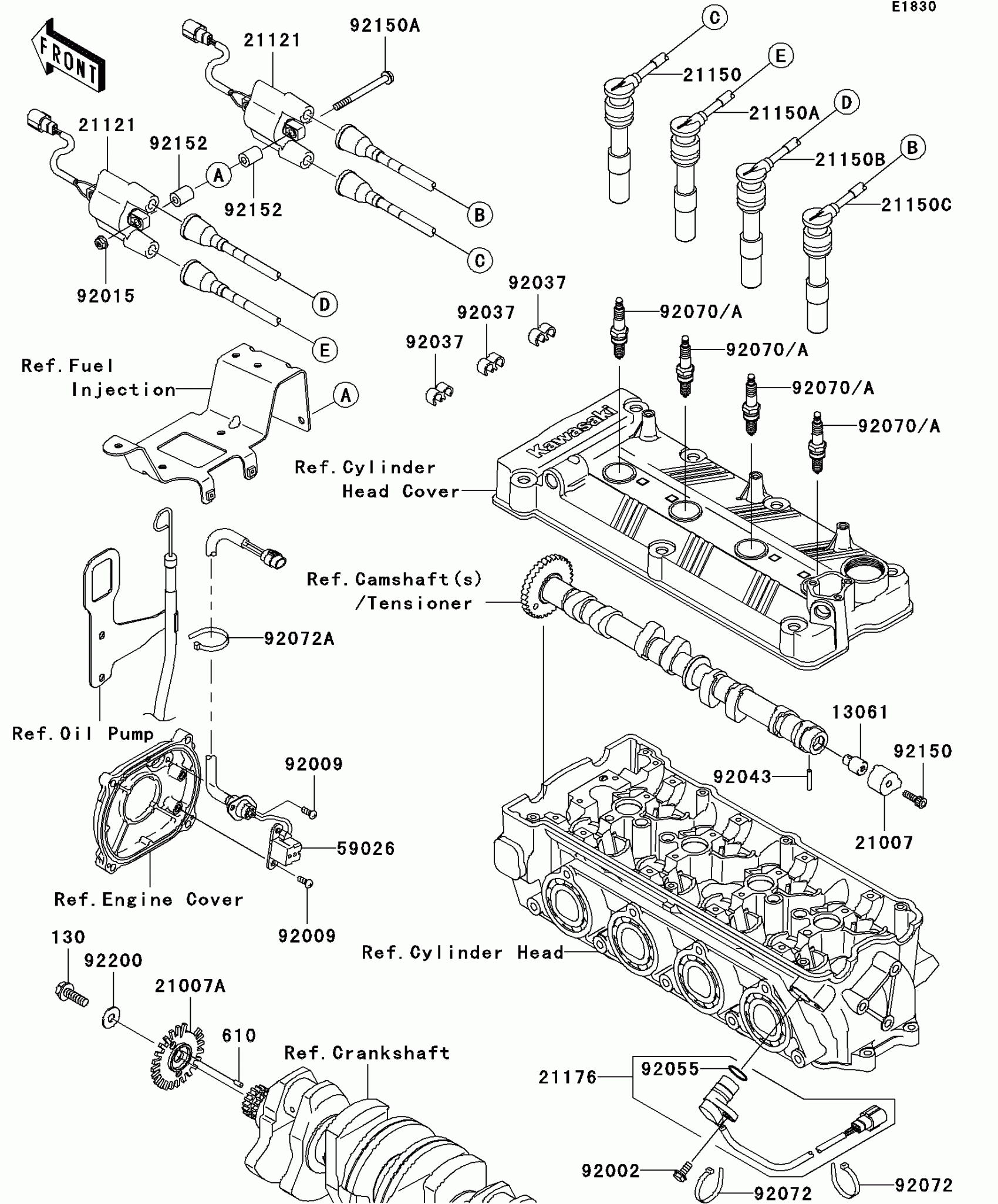

Kawasaki JET SKI® Ultra® LX Ignition System Diagram

#

Description
Price

13061

BOSS,CAM SENSOR

13061-1687

$16.18

21007

ROTOR,EX CAM

21007-3742

$22.70

21007A

ROTOR,PULSING

21007-3744

$23.32

21121

COIL-IGNITION

21121-3722

Unavailable

21150

CORD-ASSY,#1

21150-3707

$83.10

21150A

CORD-ASSY,#2

21150-3708

$83.10

21150B

CORD-ASSY,#3

21150-3709

$83.10

21150C

CORD-ASSY,#4

21150-3710

$83.10

21176

SENSOR

21176-1077

$102.13

59026

COIL-PULSING

59026-3702

$120.91

92002

BOLT,6X16

92002-3728

$4.69

92009

SCREW,5X12

92009-1296

$3.92

92015

NUT,6MM

92015-3767

$4.69

92037

CLAMP,HOSE

92037-1603

$5.00

92043

PIN

92043-1575

$2.46

92055

RING-O

92055-1639

$3.09

92070

PLUG-SPARK,CR9EK(NGK)

92070-1264

$12.39

92070A

PLUG-SPARK,CR8EK(NGK)

92070-1265

$12.40

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=152

92072-3874

$4.18

92150

BOLT,6X18

92150-1645

$3.60

92150A

BOLT,6X70

92150-3753

$7.33

92152

COLLAR

92152-3738

$7.63

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

130

BOLT-FLANGED,8X25

130CD0825

$2.70

610

ROLLER,4X8

610A0408

$4.31
