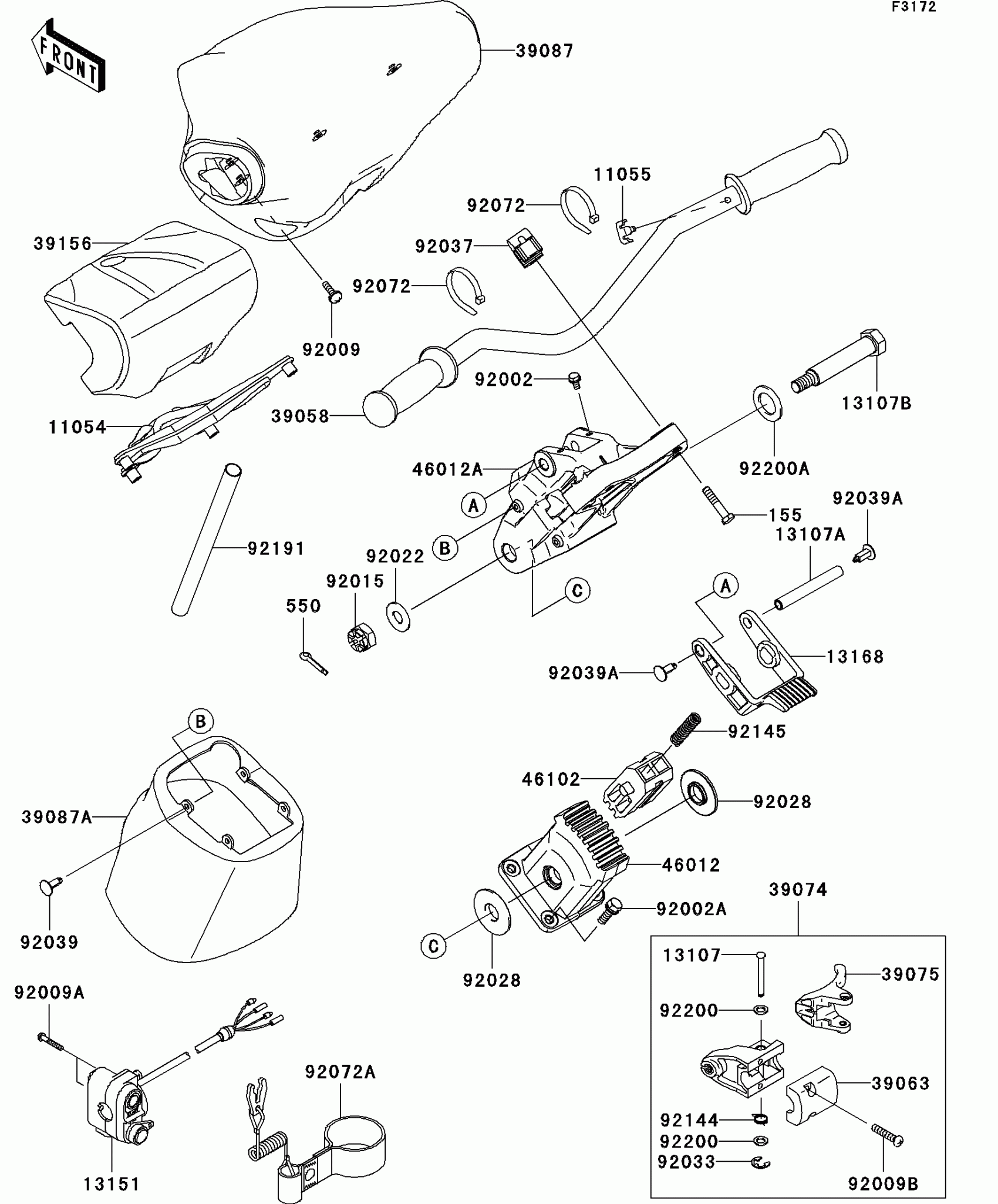

Kawasaki JET SKI® Ultra® LX Handlebar Diagram

#

Description
Price

11054

BRACKET,HANDLE PAD

11054-3710

$23.59

11055

BRACKET,THROTTLE LEVER

11055-3709

$10.05

13107

SHAFT

13107-3740

$8.58

13107A

SHAFT

13107-3795

$31.86

13107B

SHAFT,HANDLE HOLDER PIVOT

13107-3803

$73.22

13151

SWITCH-COMP,STOP&START

13151-3722

$420.13

13168

LEVER

13168-3754

$12.67

39058

HANDLE-COMP,F.BLACK

39058-3744-6Z

$151.97

39063

HOUSING-CONTROL

39063-3727

$28.81

39074

LEVER-ASSY-THROTTLE

39074-3726

$111.92

39075

LEVER-THROTTLE

39075-3714

$41.51

39087

PAD-HANDLE,F.BLACK

39087-3735-6Z

$153.76

39087A

PAD-HANDLE,F.BLACK

39087-3737-6Z

Unavailable

39156

PAD,HANDLE

39156-3845

$71.63

46012

HOLDER-HANDLE,LWR

46012-3730

$103.01

46012A

HOLDER-HANDLE,UPP

46012-3732

Unavailable

46102

ROD,HANDLE POSITION

46102-3733

$19.74

92002

BOLT,6X12

92002-3763

$4.69

92002A

BOLT,8X25

92002-3774

$7.91

92009

SCREW,6X20

92009-3781

$6.57

92009A

SCREW,5X30

92009-3836

$4.18

92009B

SCREW,6X30

92009-3837

$4.69

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92022

WASHER,15X34X2.0

92022-3738

$6.57

92028

BUSHING

92028-3743

$10.56

92033

RING-SNAP

92033-3723

$3.29

92037

CLAMP,HANDLEBAR

92037-503

$16.01

92039

RIVET

92039-3787

$3.90

92039A

RIVET

92039-3788

$3.39

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,TETHER SWITCH

92072-3816

Unavailable

92144

SPRING

92144-3749

$4.26

92145

SPRING

92145-3723

$5.60

92191

TUBE,22X24X200

92191-3792

$30.46

92200

WASHER

92200-3738

$3.32

92200A

WASHER,21X34X2

92200-3802

$6.22

155

BOLT-WSP-SMALL,8X50

155R0850

$5.65

550

PIN-COTTER,3X35

550S3035

$4.22
