Description

Price

11047

BRACKET,HANDLE HOLDER

11047-3759

$107.88

11054

BRACKET,HANDLE POLE BRACKET

11054-3701

$32.74

11054A

BRACKET

11054-3712

Unavailable

11061

GASKET,HANDLE POLE BRACKET

11061-3739

$30.48

13107

SHAFT

13107-3799

$59.40

13234

SHAFT-COMP

13234-3713

$80.64

13270

PLATE,STEERING NUT

13270-3808

$7.71

13280

HOLDER

13280-3752

Unavailable

13320

LEVER-ASSY,REVERSE

13320-3719

Unavailable

39021

BRACKET-HANDLE POLE

39021-3716

$324.79

39117

SHAFT-STRG

39117-3715

$332.50

59266A

JOINT-BALL

59266-3710

$39.65

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92022

WASHER,15X34X2.0

92022-3738

$6.57

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92028

BUSHING,STEERING

92028-3748

$25.59

92152

COLLAR

92152-3748

$1.83

92154

BOLT,BALL,6MM

92154-3710

$23.99

92171

CLAMP,L=150

92171-3717

$7.75

92200

WASHER,32.5X70X2

92200-3718

$16.69

92200A

WASHER,16.5X25X1

92200-3800

$2.61

92210

NUT,STEERING SHAFT,22MM

92210-3776

$106.64

120

BOLT-SOCKET,5X10

120R0510

$3.94

120A

BOLT-SOCKET,6X20

120R0620

$3.92

317

NUT

317R0800

$1.96

550

PIN-COTTER,3X35

550S3035

$4.22

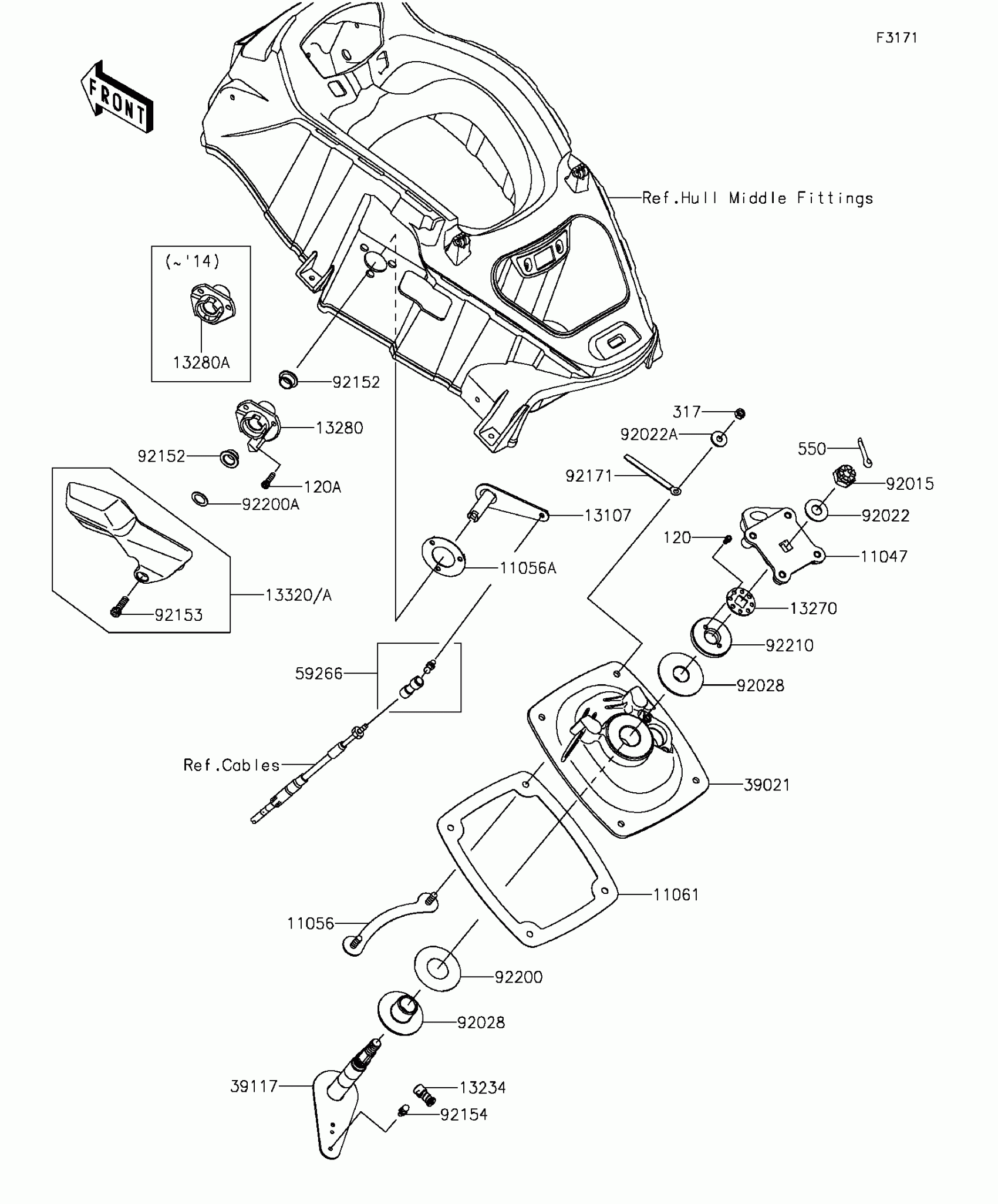

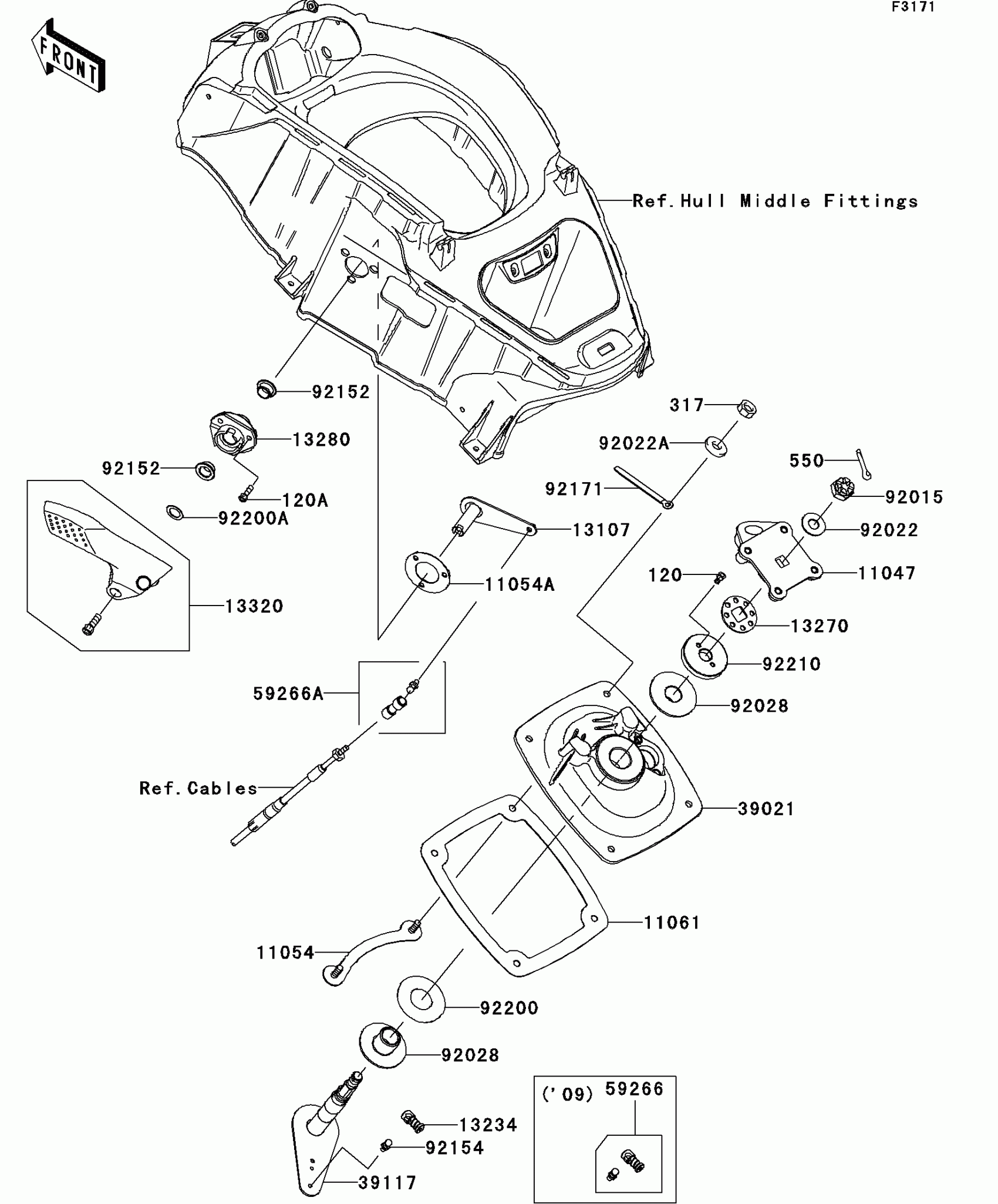

Kawasaki JET SKI® Ultra® LX Handle Pole Diagram

BRACKET,HANDLE HOLDER

BRACKET,HANDLE POLE BRACKET

BRACKET

GASKET,HANDLE POLE BRACKET

SHAFT

SHAFT-COMP

PLATE,STEERING NUT

HOLDER

LEVER-ASSY,REVERSE

BRACKET-HANDLE POLE

SHAFT-STRG

JOINT-BALL

NUT,CASTLE,14MM

WASHER,15X34X2.0

WASHER,8.4X23X2.5

BUSHING,STEERING

COLLAR

BOLT,BALL,6MM

CLAMP,L=150

WASHER,32.5X70X2

WASHER,16.5X25X1

NUT,STEERING SHAFT,22MM

BOLT-SOCKET,5X10

BOLT-SOCKET,6X20

NUT

PIN-COTTER,3X35
