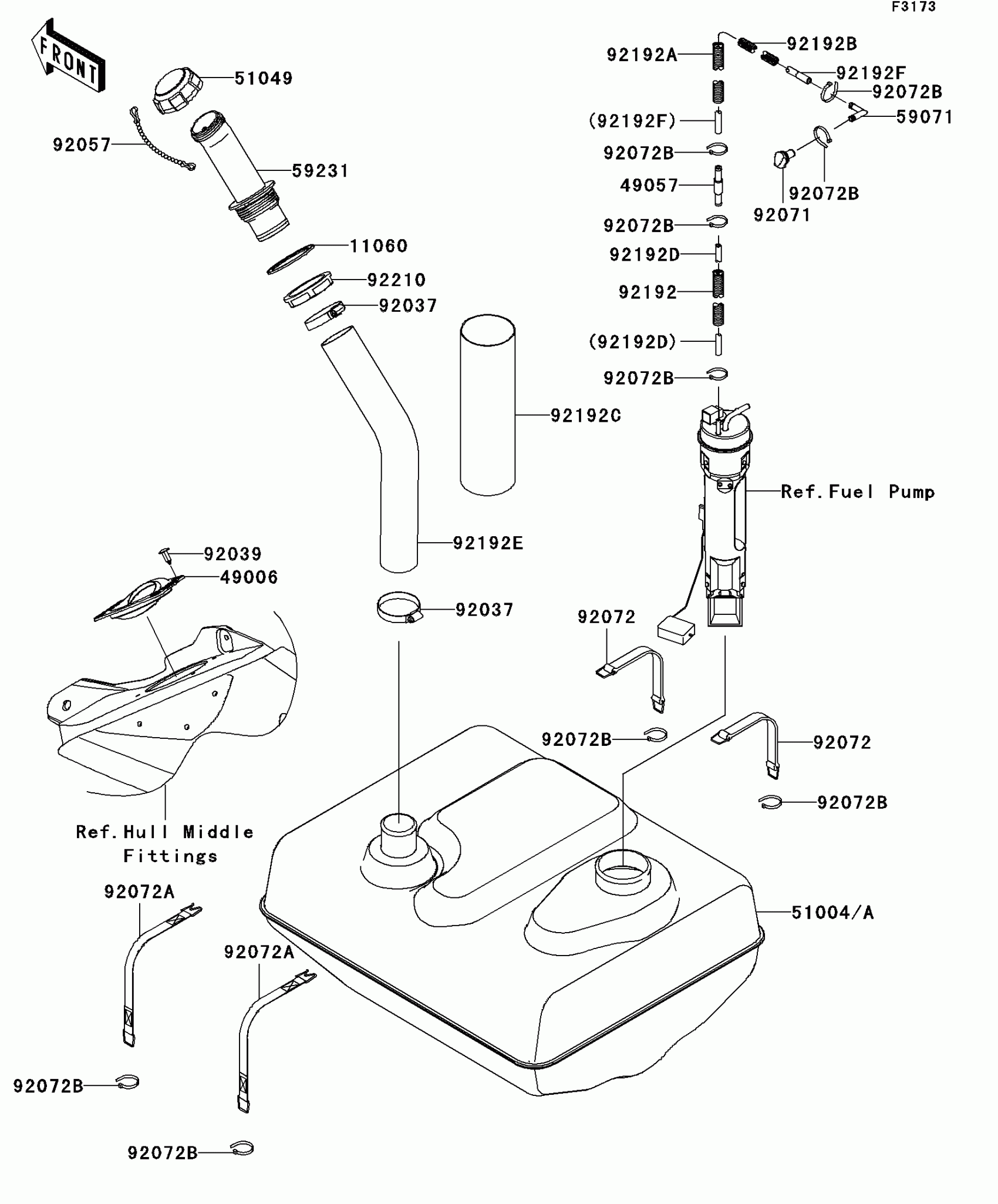

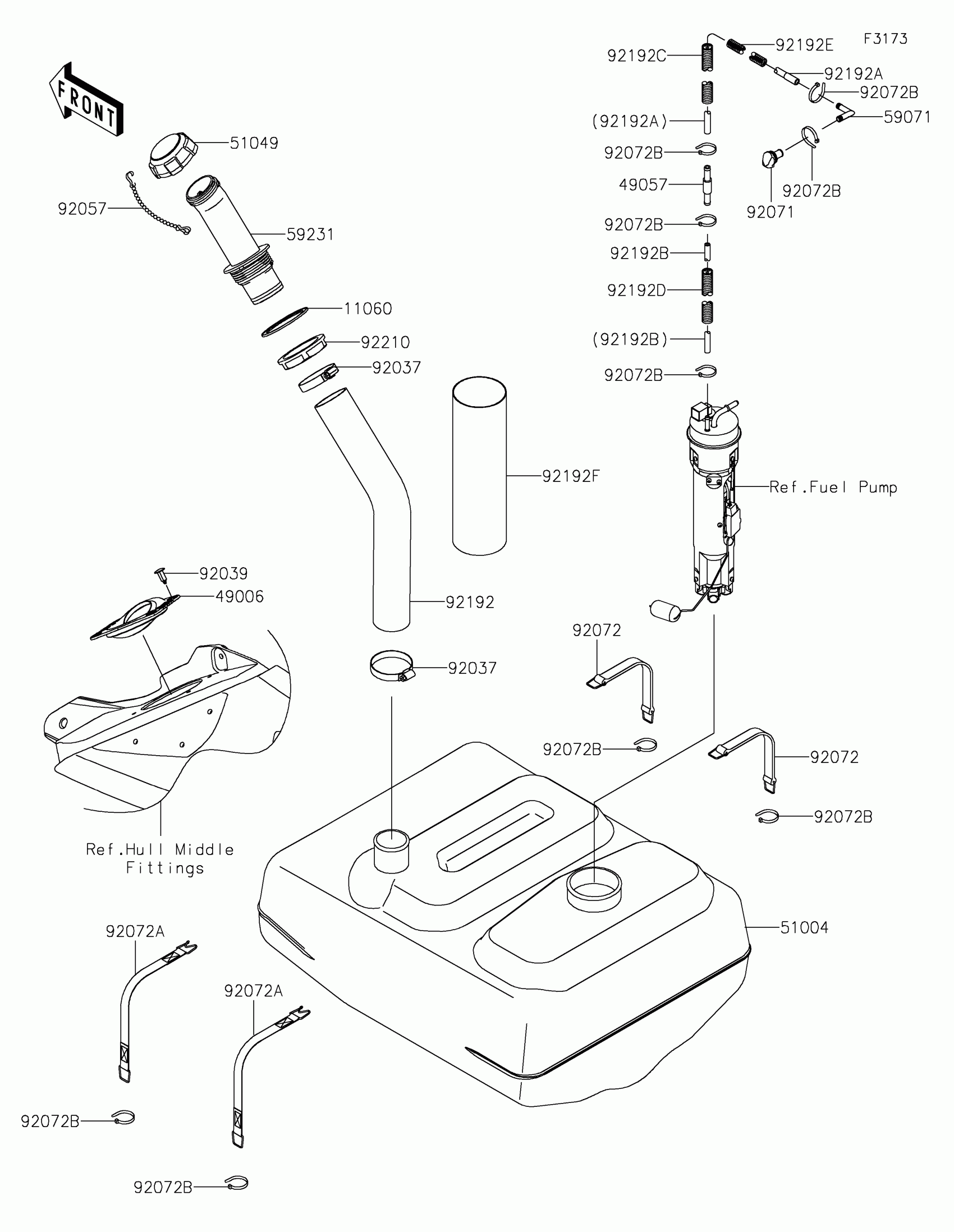

Kawasaki JET SKI® Ultra® LX Fuel Tank Diagram

Description

Price

11060

GASKET,FUEL-FILLER

11060-3780

$7.67

49006

BOOT

49006-3719

$34.55

49057

VALVE-RELIEF

49057-3707

$64.85

51004A

TANK-FUEL

51004-3749

$358.68

51049

CAP-TANK,FUEL

51049-3726

Unavailable

59071

JOINT

59071-3736

$12.96

59231

FILLER,FUEL TANK

59231-3727

$17.61

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3788

$3.39

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3841

$7.31

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3847

$24.01

92072B

BAND,L=100.08

92072-3882

$2.02

92192

TUBE,CORRUGATED,L=120

92192-3749

$3.82

92192A

TUBE,CORRUGATED,L=700

92192-3750

Unavailable

92192B

TUBE,CORRUGATED,L=350

92192-3788

$4.62

92192C

TUBE,86X89X300

92192-3822

$26.91

92192D

TUBE,5.8X10.8X100

92192-3840

$20.95

92192E

TUBE,FUEL TANK-FILLER

92192-3841

Unavailable

92192F

TUBE,5.8X10.8X1000

92192-3849

$25.16

92210

NUT,FILLER

92210-3751

$8.63
