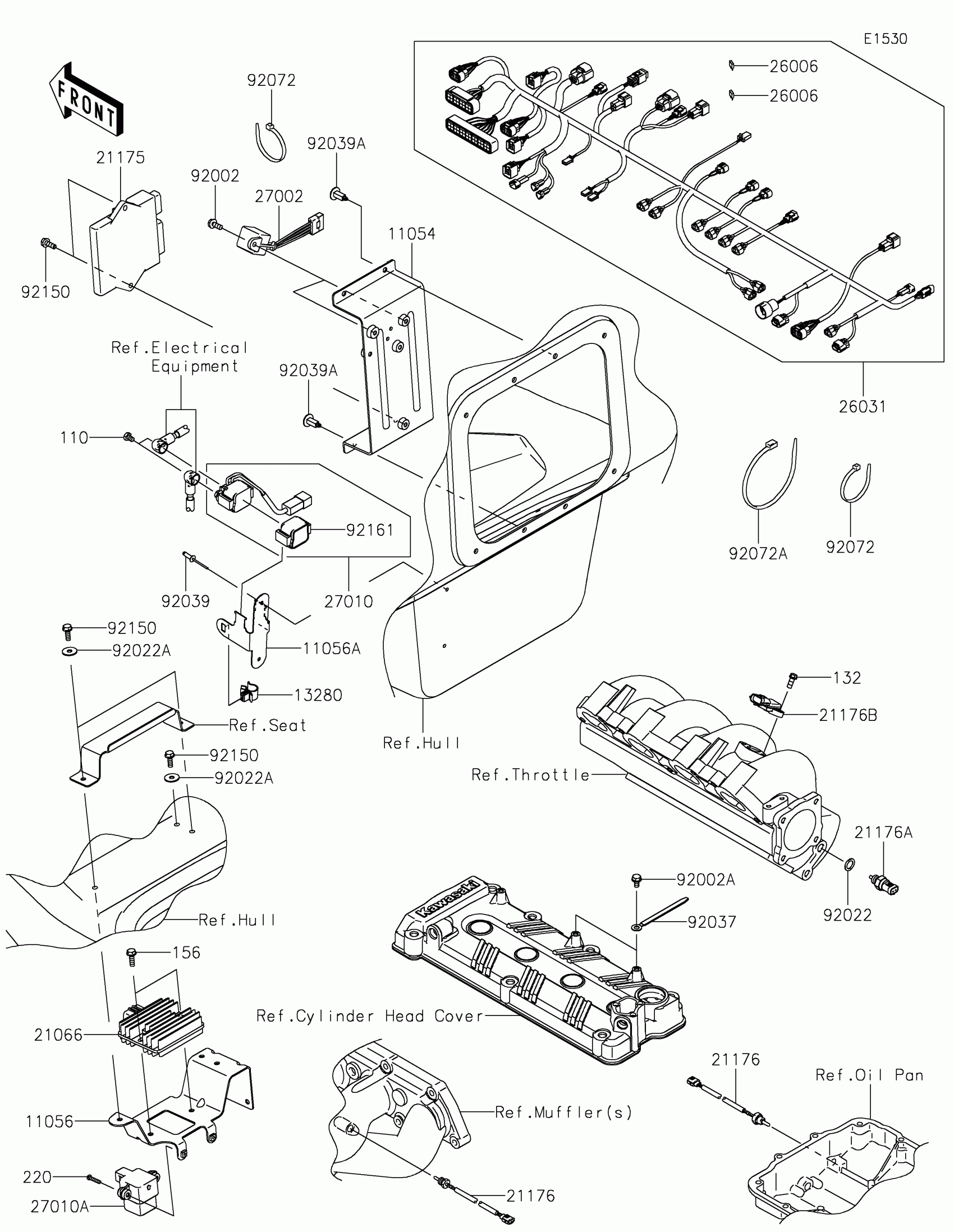

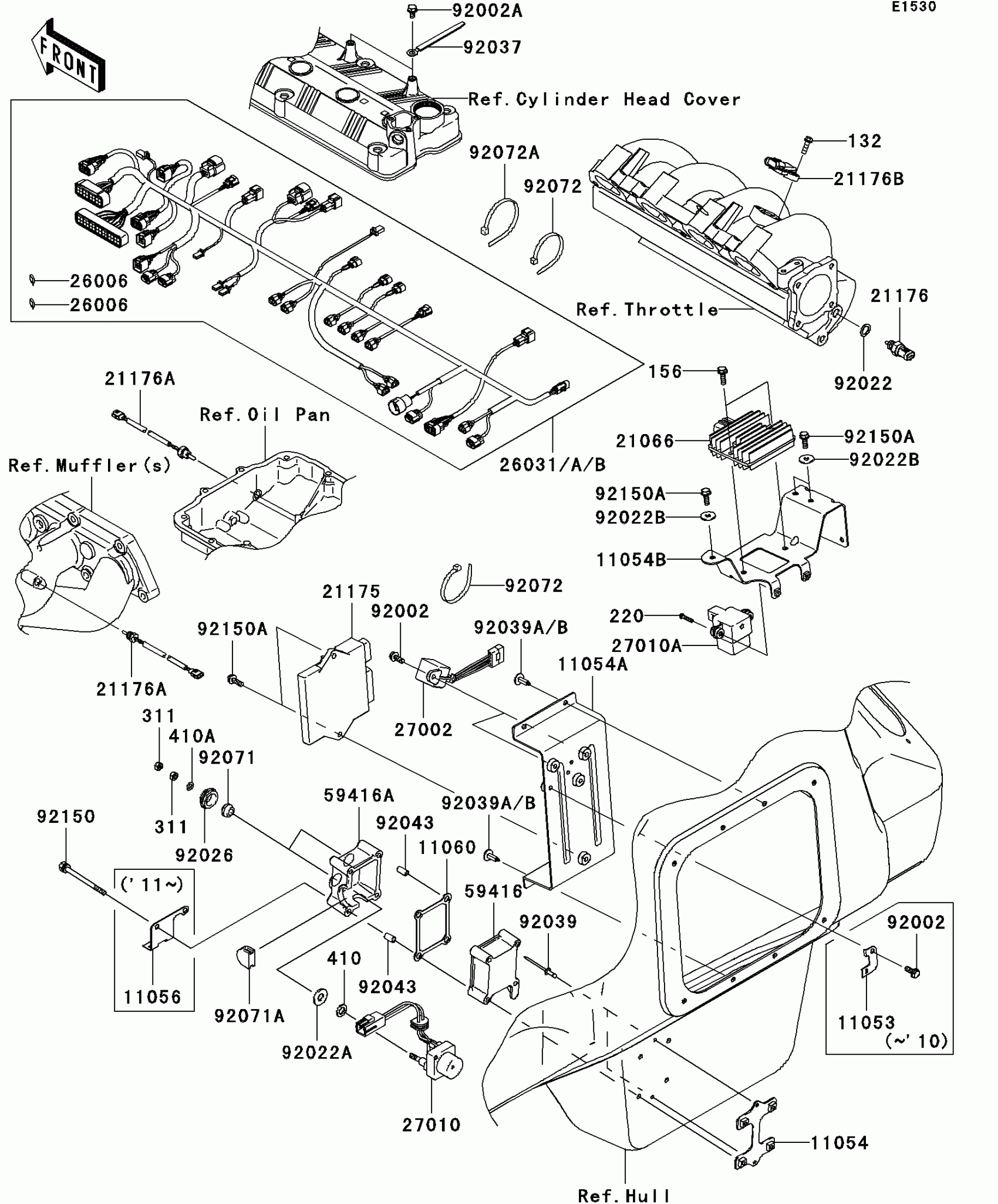

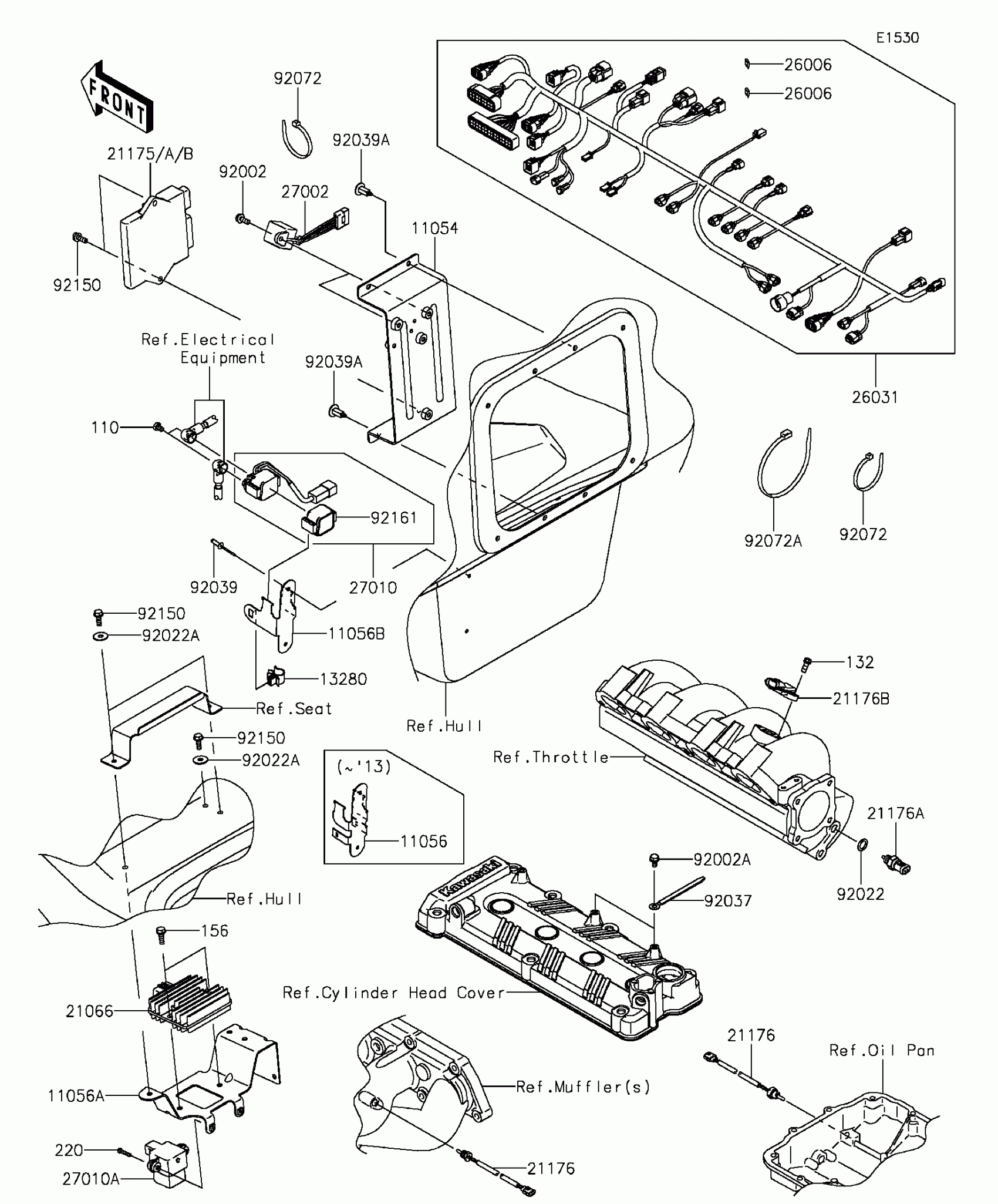

Kawasaki JET SKI® Ultra® LX Fuel Injection Diagram

#

Description
Price

11054

BRACKET,SWITCH

11054-3742

Unavailable

11054A

BRACKET,ECU&RELAY

11054-3743

$12.55

11054B

BRACKET,REGULATOR&VDS

11054-3749

$106.64

11056

BRACKET,FUSE

11056-3701

$30.46

11060

GASKET

11060-3709

$13.41

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-3734

$898.49

21176

SENSOR,AIR TEMPERATURE

21176-1086

$68.42

21176A

SENSOR,TEMP

21176-3758

$133.71

21176B

SENSOR,PRESSURE

21176-3765

$245.34

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26031B

HARNESS,ENGINE

26031-3731

$626.48

27002

RELAY-ASSY

27002-3703

$51.63

27010

SWITCH

27010-3777

$164.03

27010A

SWITCH,VDS

27010-3785

$259.40

59416

CASE-ELECTRIC

59416-3765

$65.38

59416A

CASE-ELECTRIC

59416-3766

$66.70

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92022

WASHER,12X18X1.0

92022-1211

$3.92

92022A

WASHER

92022-3035

$3.52

92022B

WASHER,6.5X20X1.5

92022-3710

$3.65

92026

SPACER

92026-3703

$4.69

92037

CLAMP,L=100

92037-3736

$5.52

92039

RIVET

92039-3714

$0.95

92039B

RIVET

92039-3788

$3.39

92043

PIN

92043-3715

$7.34

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3837

$3.23

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=372.24

92072-3883

$1.59

92150

BOLT,6X80

92150-3711

$13.04

92150A

BOLT,6X18

92150-3729

$4.69

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

156

BOLT-WP,6X20

156R0620

$3.65

220

SCREW-PAN-CROS,4X20

220R0420

$2.41

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
