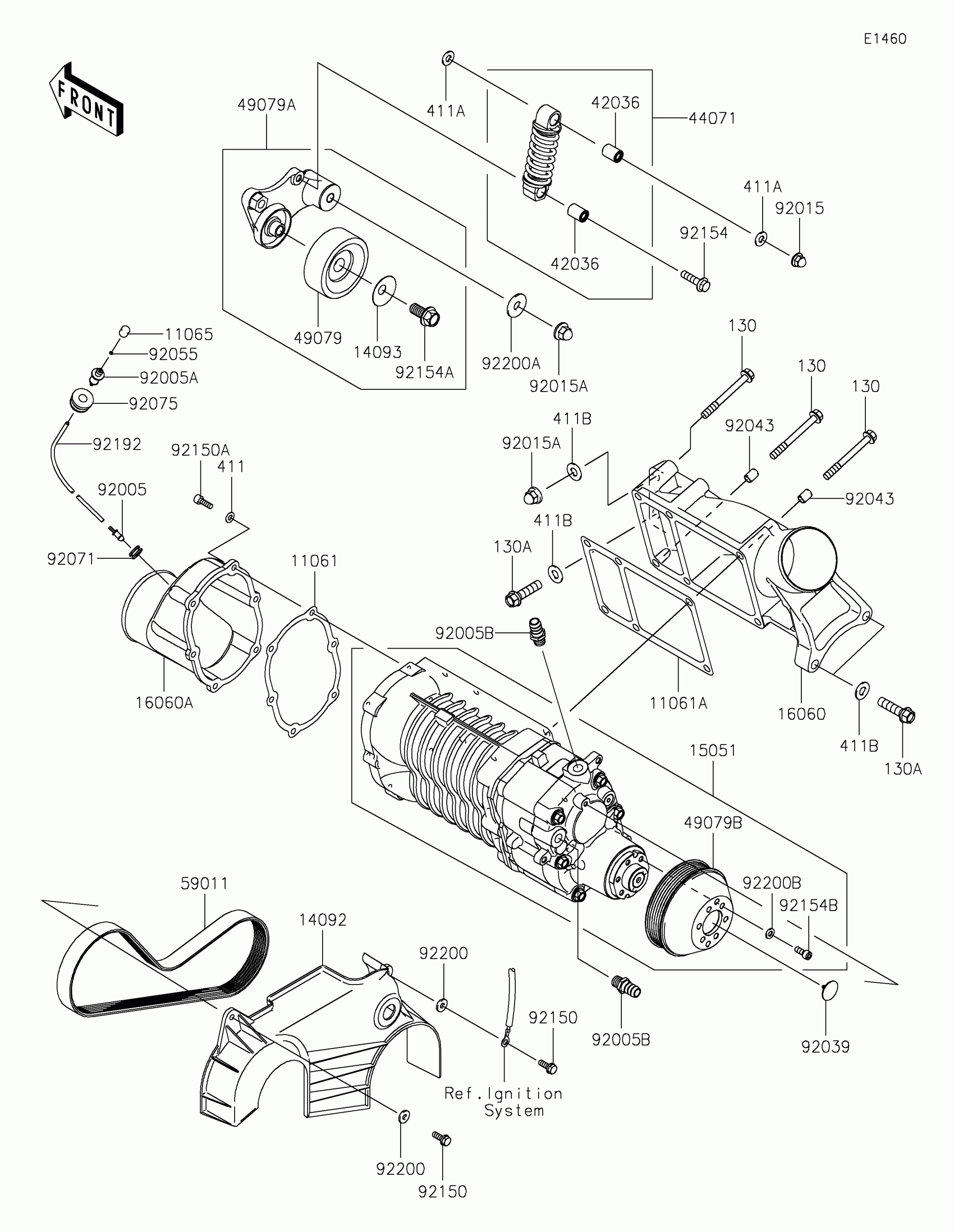

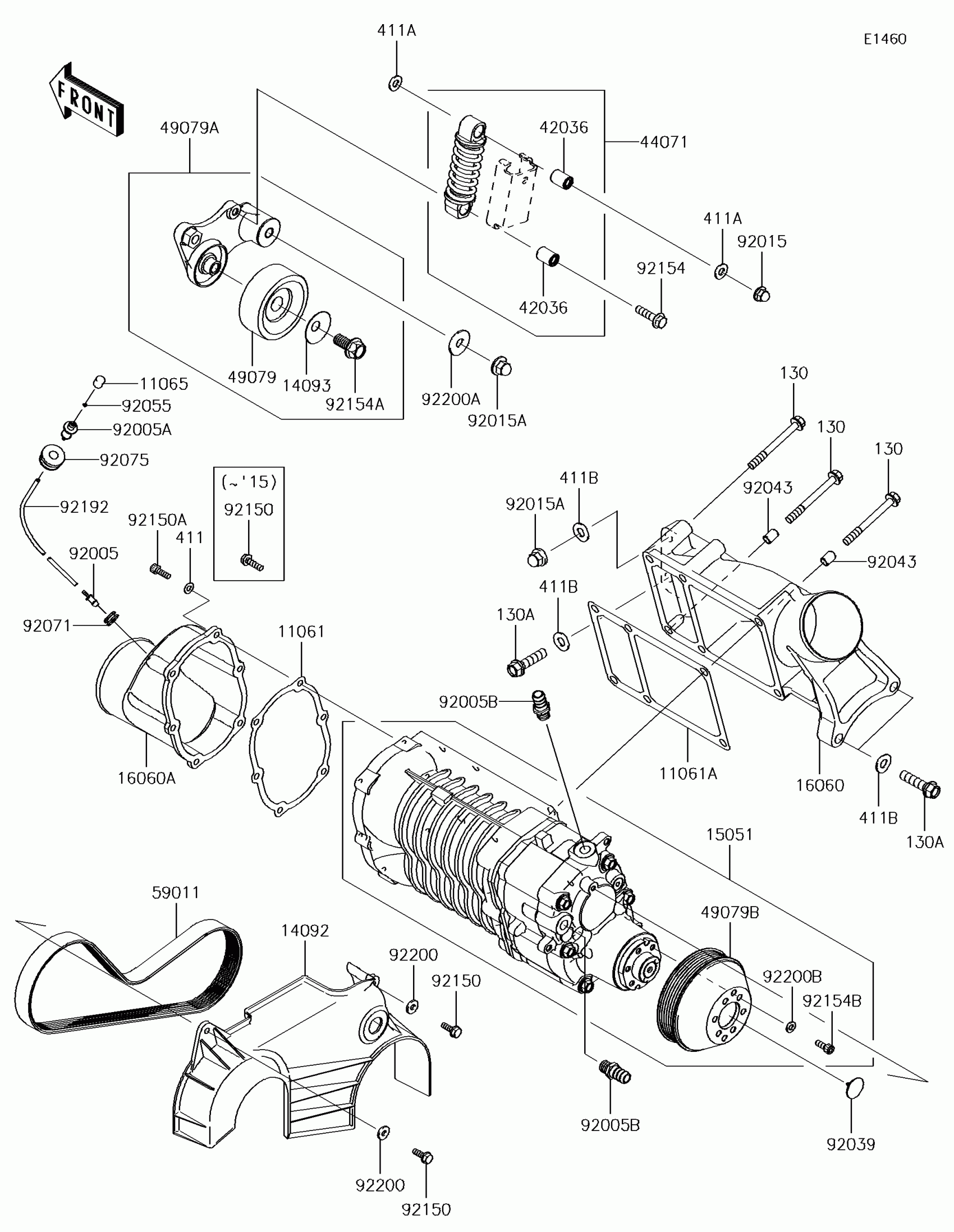

Kawasaki JET SKI® ULTRA® 310X Super Charger Diagram

#

Description
Price

11061

GASKET,COMPRESSOR INLET

11061-0760

$29.57

11061A

GASKET,COMPRESSOR OUT

11061-3763

$9.34

11065

CAP

11065-0156

$2.13

130

BOLT-FLANGED,8X75

130CD0875

$9.91

130A

BOLT-FLANGED,10X40

130CD1040

$2.49

14092

COVER,BELT

14092-0838

$27.47

14093

COVER

14093-0222

$6.68

15051

COMPRESSOR-AIR,SUPER CHARGER

15051-3704

$3,441.27

16060

PIPE-INTAKE,COMPRESSOR OUT

16060-0028

$218.95

16060A

PIPE-INTAKE,COMPRESSOR INLET

16060-0738

$41.95

411

WASHER-PLAIN,6MM

411S0600

$2.06

411A

WASHER-PLAIN,8MM

411S0800

$3.09

411B

WASHER-PLAIN,10MM

411S1000

$2.67

42036

SLEEVE

42036-0713

$21.48

44071

DAMPER-ASSY

44071-0776

$247.62

49079

PULLEY-BELT

49079-0025

$58.63

49079A

PULLEY-BELT

49079-0703

$267.17

49079B

PULLEY-BELT

49079-3704

$234.95

59011

BELT,6PK845

59011-0032

$82.13

92005

FITTING

92005-0722

$30.70

92005A

FITTING

92005-0723

$48.33

92005B

FITTING

92005-3714

$18.72

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,10MM

92015-1649

$5.52

92039

RIVET

92039-3795

$1.94

92043

PIN,8.2X10.5X14

92043-3764

$11.77

92055

RING-O,2X1

92055-0718

$2.32

92071

GROMMET

92071-3733

$4.14

92075

DAMPER,FUEL TANK

92075-1424

$5.52

92150

BOLT,6X18

92150-3729

$4.69

92150A

BOLT,SOCKET,6X18

92150-3775

$4.69

92154

BOLT

92154-0865

$9.17

92154A

BOLT

92154-1626

$13.60

92154B

BOLT,SOCKET,6X16

92154-3714

$3.19

92192

TUBE,3X4X600

92192-1004

$32.72

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER

92200-3762

$2.61

92200B

WASHER,6.5X13X1.5

92200-3814

$2.67
