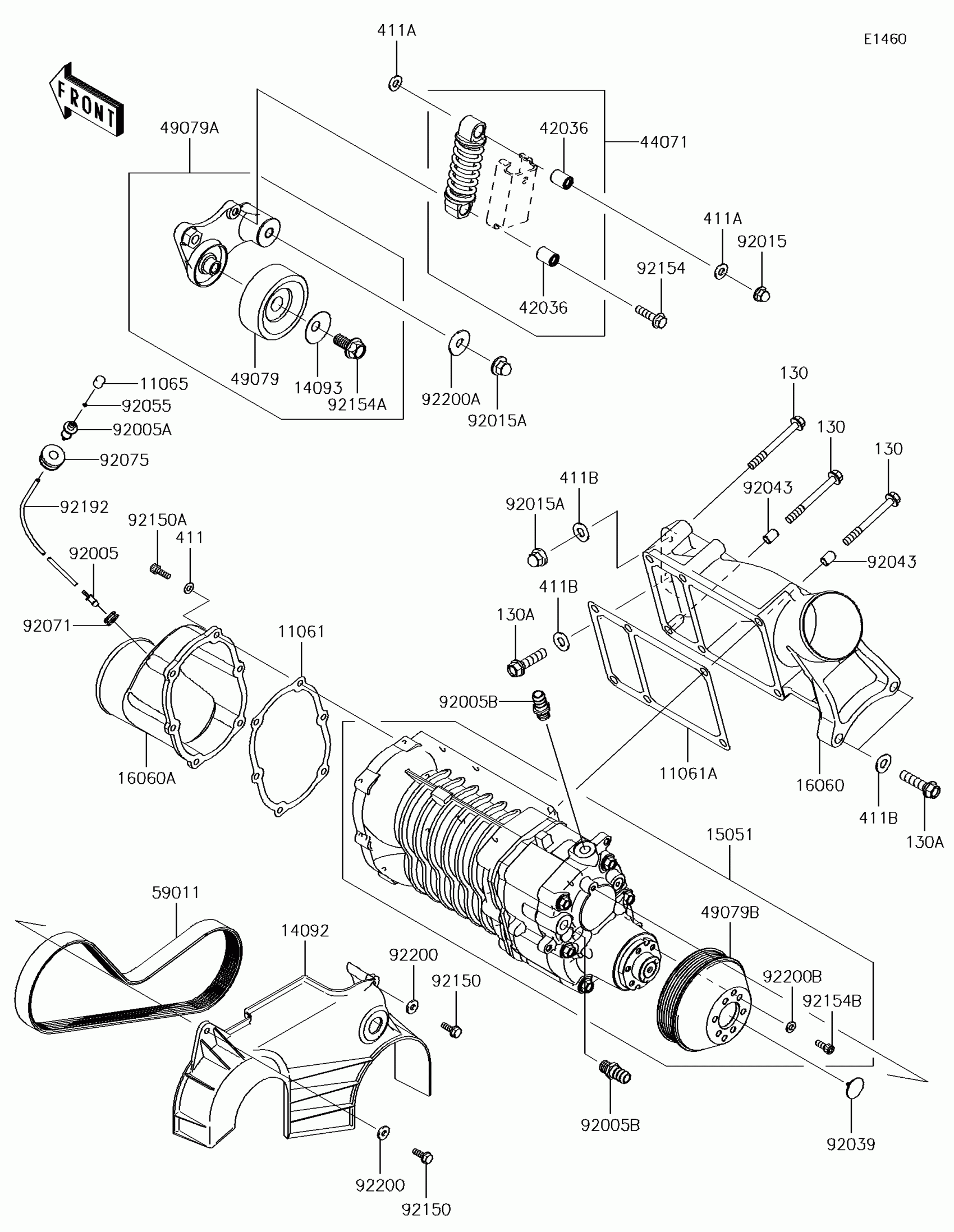

Kawasaki JET SKI® ULTRA® 310X SE Super Charger Diagram

#

Description
Price

11061

GASKET,COMPRESSOR INLET

11061-0760

$30.14

11061A

GASKET,COMPRESSOR OUT

11061-3763

$7.12

11065

CAP

11065-0156

$1.55

130

BOLT-FLANGED,8X75

130CD0875

$7.54

130A

BOLT-FLANGED,10X40

130CD1040

$2.05

14092

COVER,BELT

14092-0838

$24.95

14093

COVER

14093-0222

$5.80

15051

COMPRESSOR-AIR,SUPER CHARGER

15051-3704

$3,526.85

16060

PIPE-INTAKE,COMPRESSOR OUT

16060-0028

$223.58

16060A

PIPE-INTAKE,COMPRESSOR INLET

16060-0738

$39.63

411

WASHER-PLAIN,6MM

411S0600

$1.49

411A

WASHER-PLAIN,8MM

411S0800

$2.15

411B

WASHER-PLAIN,10MM

411S1000

$1.89

42036

SLEEVE

42036-0713

$20.15

44071

DAMPER-ASSY

44071-0776

$236.01

49079

PULLEY-BELT

49079-0025

$59.77

49079A

PULLEY-BELT

49079-0703

$254.56

49079B

PULLEY-BELT

49079-3704

$239.92

59011

BELT,6PK845

59011-0032

$74.11

92005

FITTING

92005-0722

$31.30

92005A

FITTING

92005-0723

$49.27

92005B

FITTING

92005-3714

$14.12

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,10MM

92015-1649

$3.79

92039

RIVET

92039-3795

$1.66

92043

PIN,8.2X10.5X14

92043-3764

$11.27

92055

RING-O,2X1

92055-0718

$1.93

92071

GROMMET

92071-3733

$3.71

92075

DAMPER,FUEL TANK

92075-1424

$4.85

92150

BOLT,6X18

92150-3729

$3.57

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92154

BOLT

92154-0865

$8.92

92154A

BOLT

92154-1626

$12.95

92154B

BOLT,SOCKET,6X16

92154-3714

$2.58

92192

TUBE,3X4X600

92192-1004

$33.34

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER

92200-3762

$1.64

92200B

WASHER,6.5X13X1.5

92200-3814

$1.89
