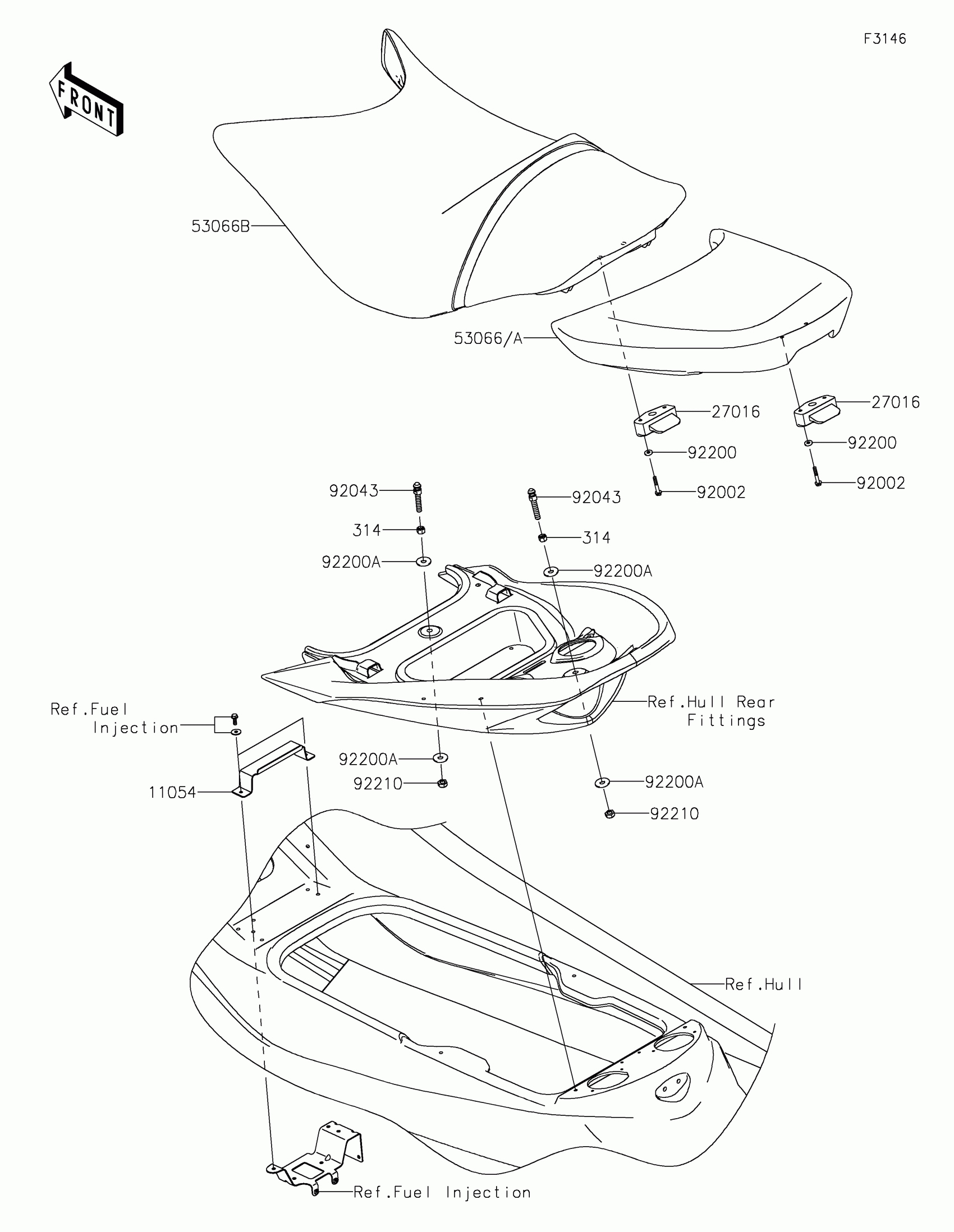

Kawasaki JET SKI® ULTRA® 310X SE Seat Diagram

Description

Price

11054

BRACKET,FRONT SEAT

11054-3702

$41.62

27016

LOCK-ASSY,SEAT

27016-3758

$100.25

314

NUT-HEX-FINE,10MM

314R1000

$1.68

53066A

SEAT-ASSY,RR,C.B.ORANGE

53066-0386-41G

$913.79

53066C

SEAT-ASSY,RR,C.B.ORANGE

53066-0387-41G

$894.93

53066E

SEAT-ASSY,FR,ORG/BLK+BAND ORG

53066-0424-49G

$1,433.01

92002

BOLT,6X40

92002-3716

$3.79

92043

92043-3763

$47.69

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER

92200-3762

$1.64

92210

NUT,LOCK,10MM

92210-3792

$5.91

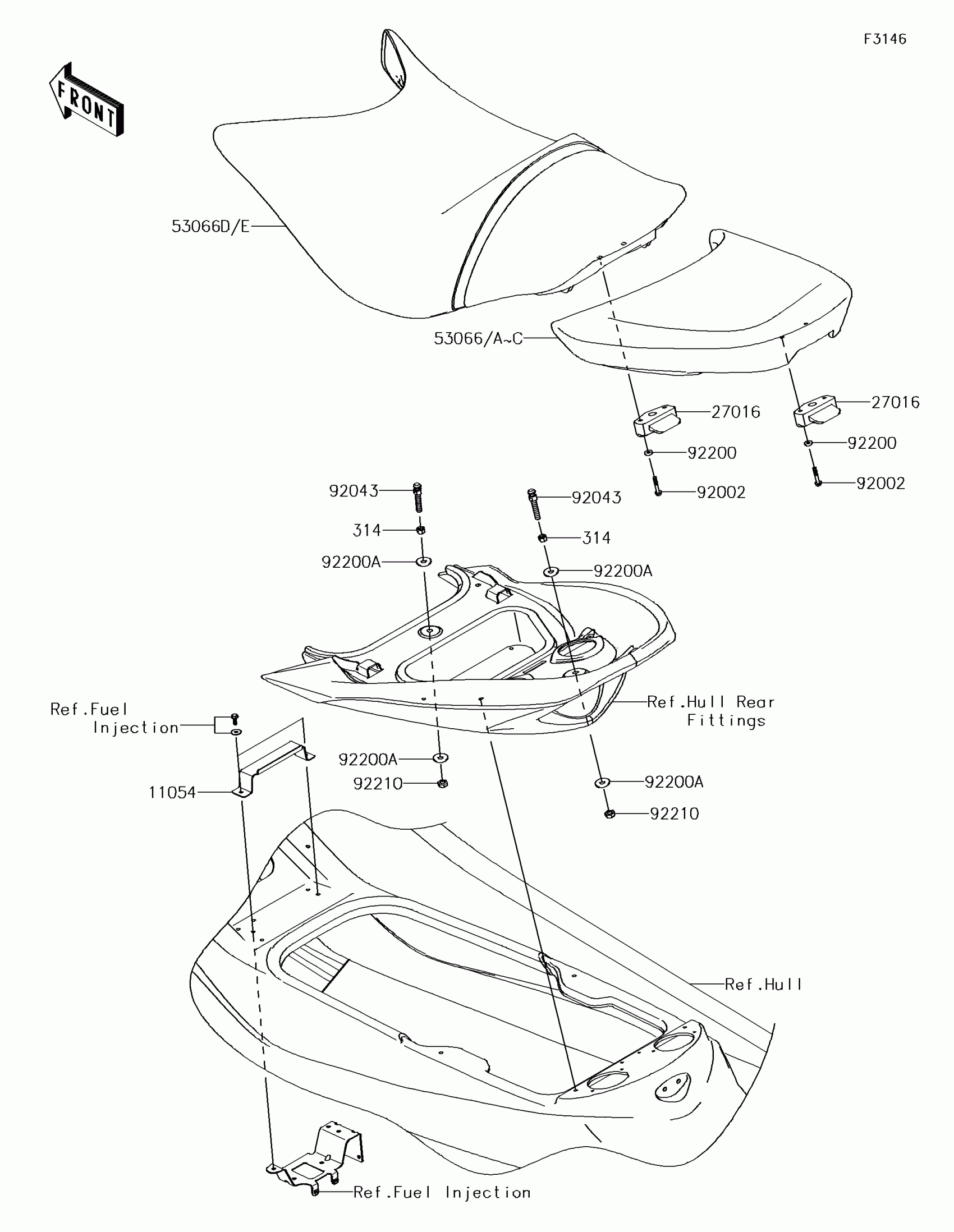

Kawasaki JET SKI® ULTRA® 310X SE Seat Diagram

BRACKET,FRONT SEAT

LOCK-ASSY,SEAT

NUT-HEX-FINE,10MM

SEAT-ASSY,RR,C.B.ORANGE

SEAT-ASSY,RR,C.B.ORANGE

SEAT-ASSY,FR,ORG/BLK+BAND ORG

BOLT,6X40

PIN

WASHER,6.5X16X2.0

WASHER

NUT,LOCK,10MM
