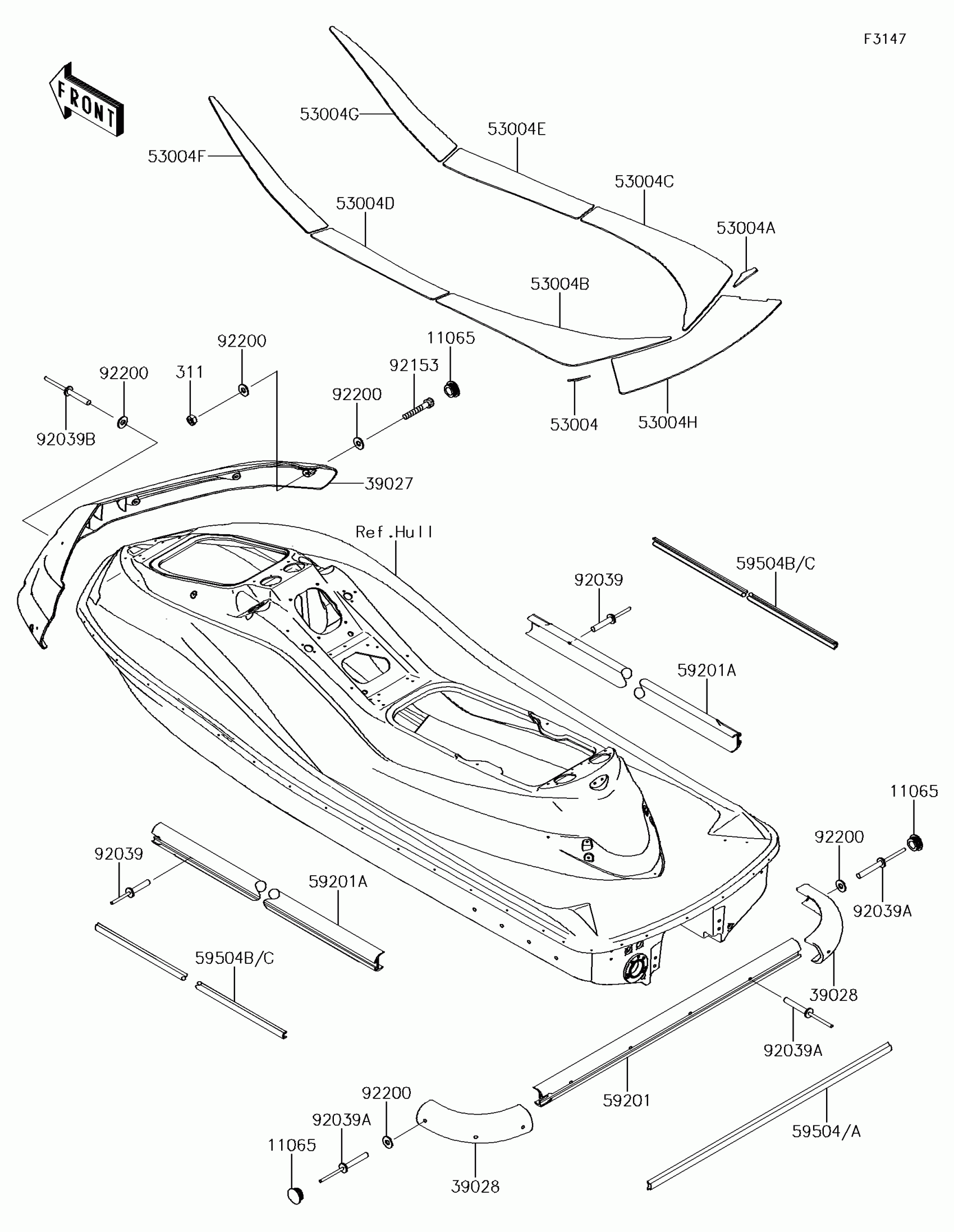

Kawasaki JET SKI® ULTRA® 310X SE Pads Diagram

Description

Price

11065

CAP,F.BLACK

11065-3707-6Z

$4.96

311

NUT-HEX,5MM

311R0500

$1.75

39027

BUMPER-FRONT,F.BLACK

39027-3747-6Z

$93.18

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$50.51

53004

MAT,RR,LH

53004-0580

$8.10

53004A

MAT,RR,RH

53004-0581

$8.10

53004B

MAT,FLOOR,MIDDLE,LH

53004-0583

$44.07

53004C

MAT,FLOOR,MIDDLE,RH

53004-0584

$44.07

53004D

MAT,FLOOR,FR,LH

53004-0585

$14.83

53004E

MAT,FLOOR,FR,RH

53004-0586

$14.83

53004F

MAT,FR,LH

53004-0587

$12.30

53004G

MAT,FR,RH

53004-0588

$12.30

53004H

MAT,FLOOR,RR

53004-0597

$34.19

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

$47.55

59201A

BUMPER,SIDE,F.BLACK

59201-3791-6Z

Unavailable

59504

INSERT-BOAT FENDER,RR,C.B.ORG

59504-3732-46Z

$33.60

59504B

INSERT-BOAT FENDER,SIDE,CB.ORG

59504-3733-46Z

$79.41

92039

RIVET

92039-3771

$0.95

92039A

RIVET

92039-3773

$1.08

92039B

RIVET

92039-3794

$7.71

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92200

WASHER,5X12X1

92200-3796

$2.15
