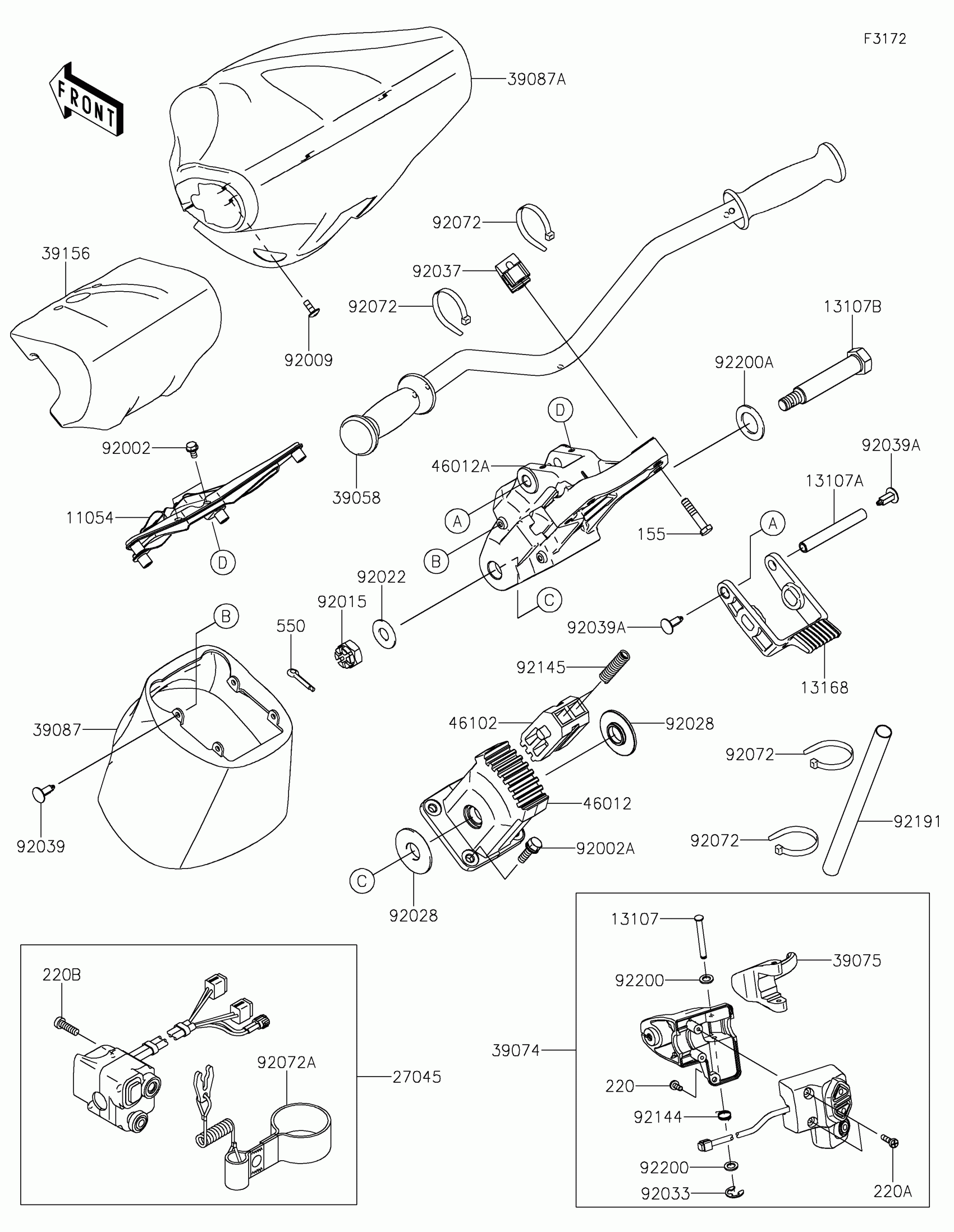

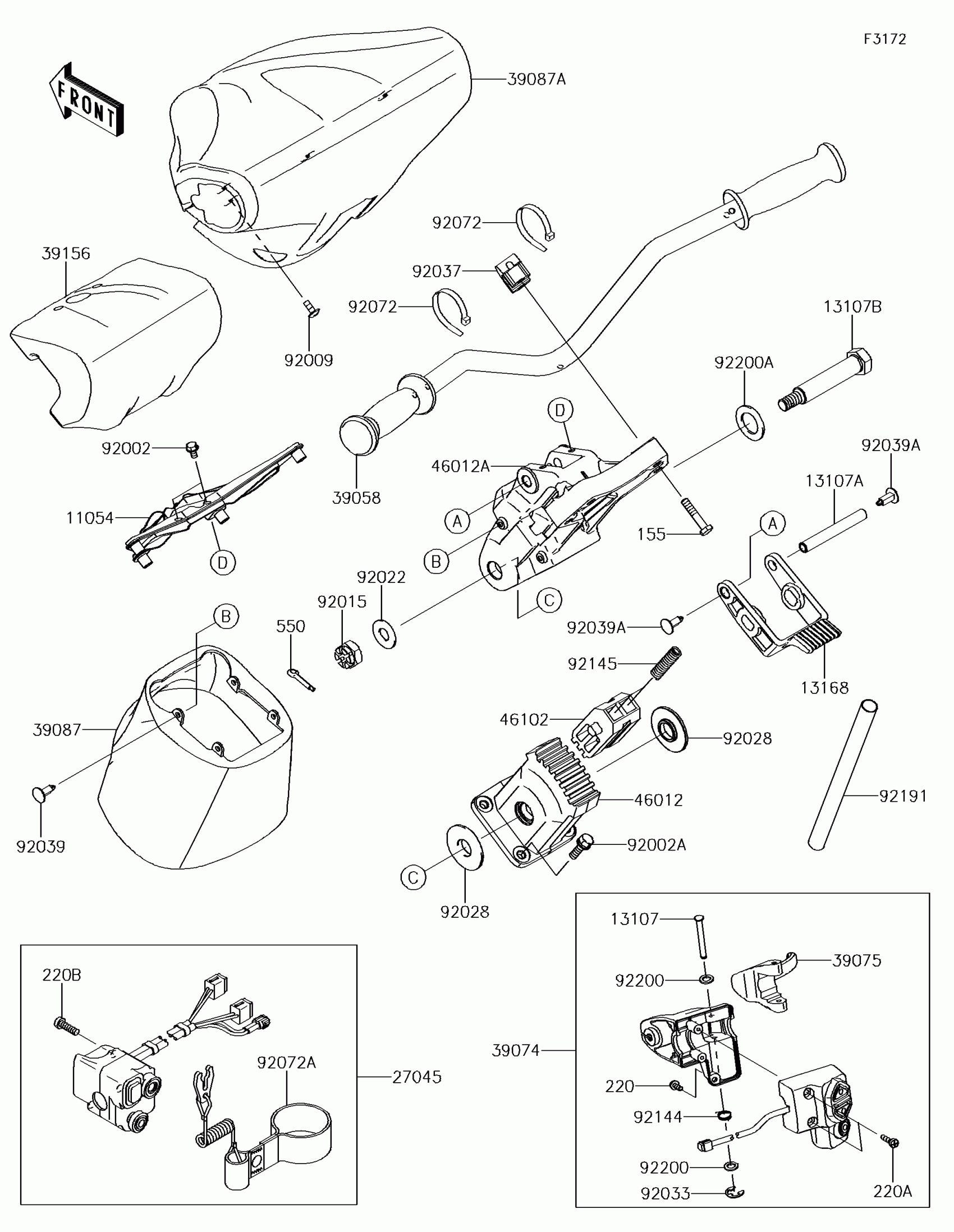

Kawasaki JET SKI® ULTRA® 310X SE Handlebar Diagram
#
11054
BRACKET,HANDLE PAD
11054-3710
$23.59
13107
SHAFT
13107-3766
$9.52
13107A
SHAFT
13107-3795
$31.86
13107B
SHAFT,HANDLE HOLDER PIVOT
13107-3803
$73.22
13168
LEVER
13168-3754
$12.67
155
BOLT-WSP-SMALL,8X50
155R0850
$5.65
220
SCREW-PAN-CROS,5X14
220R0514
$3.74
220A
SCREW-PAN-CROS,5X25
220R0525
$5.57
220B
SCREW-PAN-CROS,5X30
220R0530
$4.87
27045
SWITCH-ASSY,STOP&START
27045-3767
$427.72
39058
HANDLE-COMP,F.BLACK
39058-0022-6Z
$161.20
39074
LEVER-ASSY-THROTTLE
39074-3729
$464.75
39075
LEVER-THROTTLE
39075-3715
$40.86
39087
PAD-HANDLE,F.BLACK
39087-0007-6Z
$32.22
39087A
PAD-HANDLE,F.BLACK
39087-3735-6Z
$153.76
39156
PAD
39156-1752
$63.99
46012
HOLDER-HANDLE,LWR
46012-3730
$103.01
46012A
HOLDER-HANDLE,UPP
46012-3733
$69.28
46102
ROD,HANDLE POSITION
46102-3733
$19.74
550
PIN-COTTER,3X35
550S3035
$4.22
92002
BOLT,6X12
92002-3763
$4.69
92002A
BOLT,8X25
92002-3774
$7.91
92009
SCREW,6X20
92009-3781
$6.57
92015
NUT,CASTLE,14MM
92015-3805
$35.50
92022
WASHER,15X34X2.0
92022-3738
$6.57
92028
BUSHING
92028-3743
$10.56
92033
RING-SNAP
92033-3723
$3.29
92037
CLAMP,HANDLEBAR
92037-503
$16.01
92039
RIVET
92039-3787
$3.90
92039A
RIVET
92039-3788
$3.39
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,TETHER SWITCH
92072-3809
$57.31
92144
SPRING
92144-3749
$4.26
92145
SPRING
92145-3723
$5.60
92191
TUBE,22X24X200
92191-3792
$30.46
92200
WASHER
92200-3738
$3.32
92200A
WASHER,21X34X2
92200-3802
$6.22
