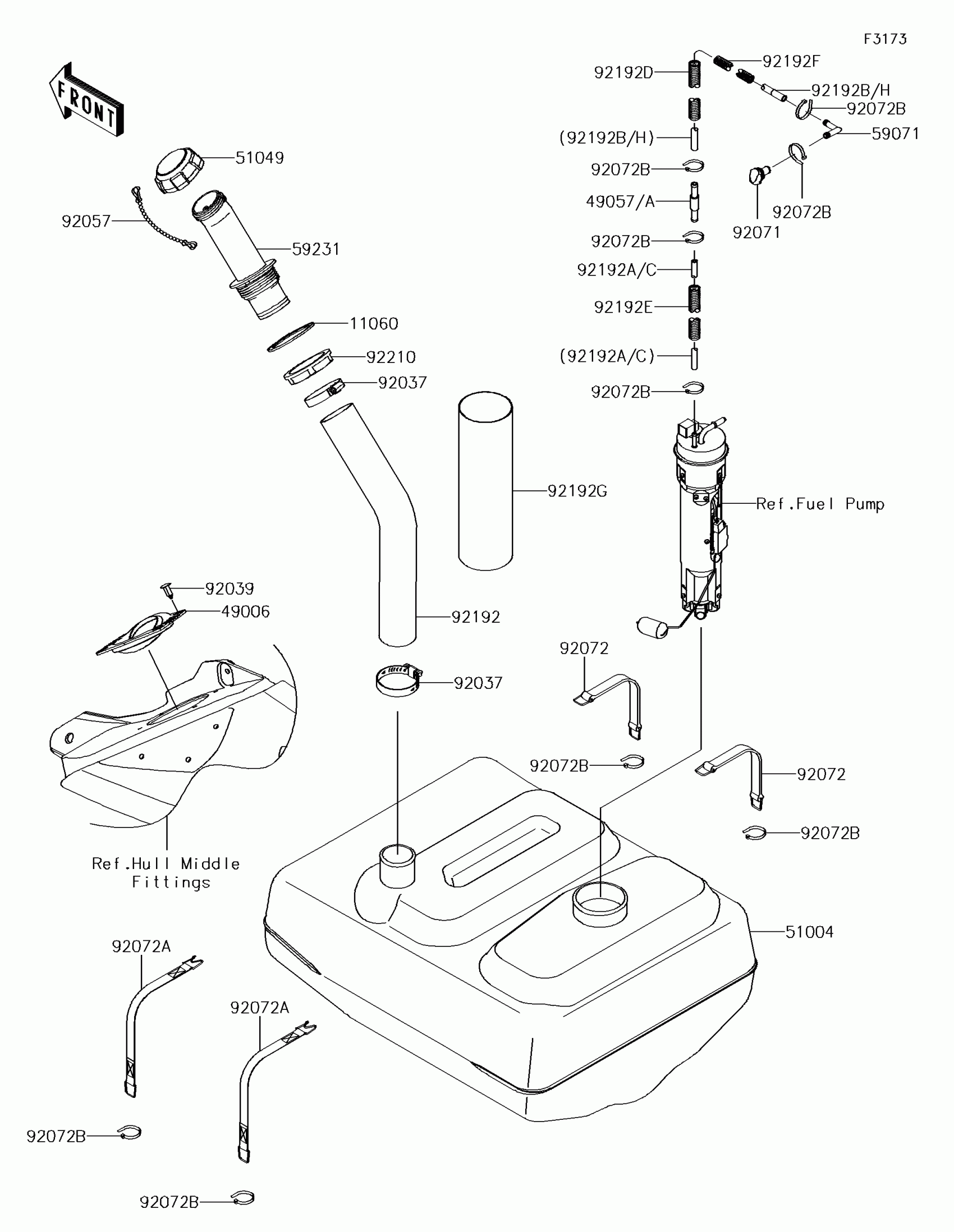

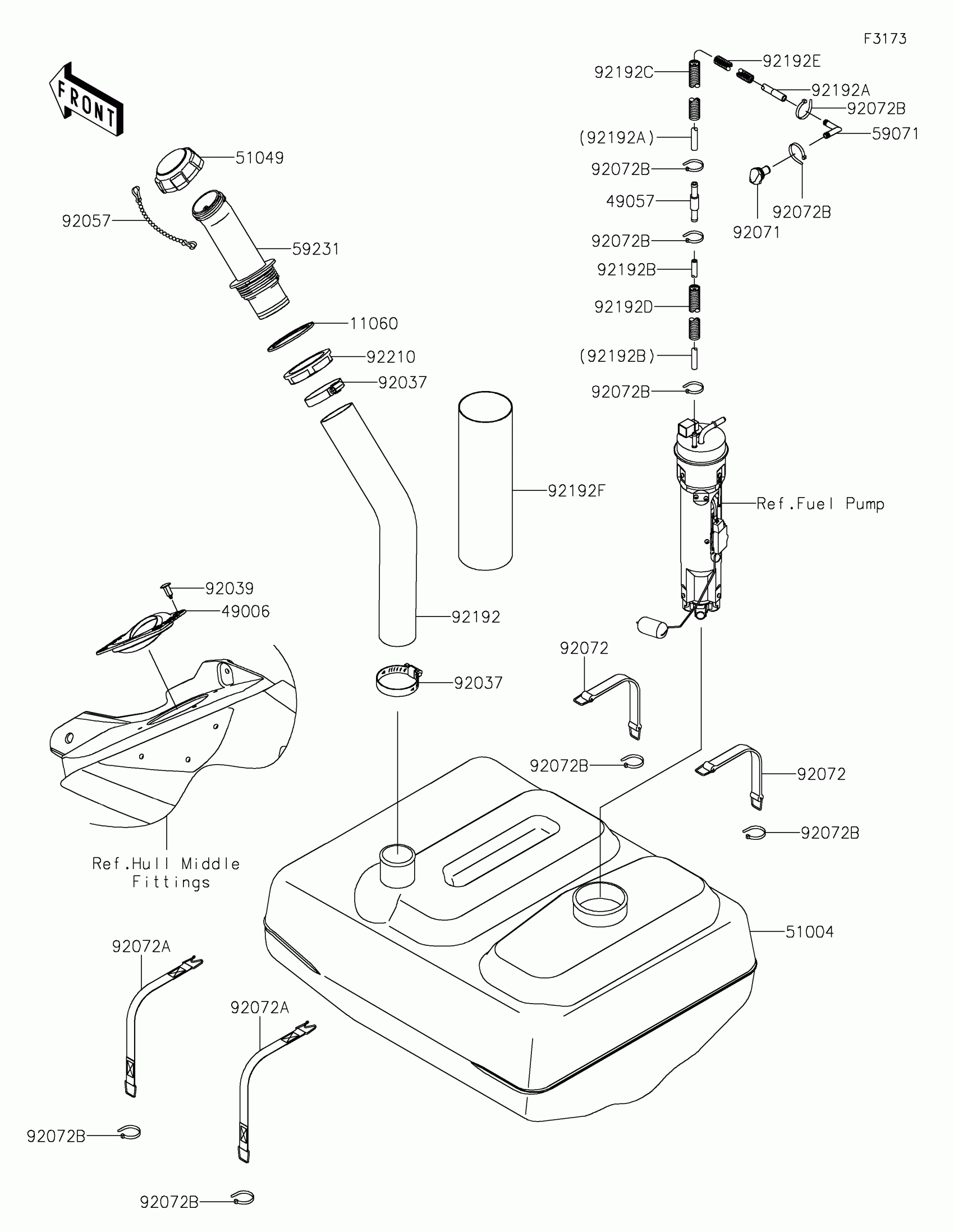

Kawasaki JET SKI® ULTRA® 310X SE Fuel Tank Diagram

Description

Price

11060

GASKET,FUEL-FILLER

11060-3780

$7.98

49006

BOOT

49006-3719

$36.74

49057

VALVE-RELIEF

49057-0002

$58.19

51004

TANK-FUEL

51004-0710

$371.73

51049

CAP-TANK,FUEL

51049-0713

$76.29

59071

JOINT

59071-3736

$12.36

59231

FILLER,FUEL TANK

59231-3727

$16.95

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3788

$2.34

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3841

$7.22

92072

BAND

92072-3845

$17.34

92072A

BAND

92072-3847

$22.61

92072B

BAND,L=100.08

92072-3882

$1.71

92192

TUBE,FUEL TANK-FILLER

92192-1044

$134.56

92192B

TUBE,5.8X10.8X1000

92192-1515

$24.64

92192C

TUBE,5.8X11X100

92192-1795

$17.36

92192D

TUBE,CORRUGATED,15.3X20.6X650

92192-3748

$4.02

92192E

TUBE,CORRUGATED,L=120

92192-3749

$3.47

92192F

TUBE,CORRUGATED,L=350

92192-3788

$4.27

92192G

TUBE,86X89X300

92192-3822

$28.53

92210

NUT,FUEL FILLER

92210-3802

$7.76
