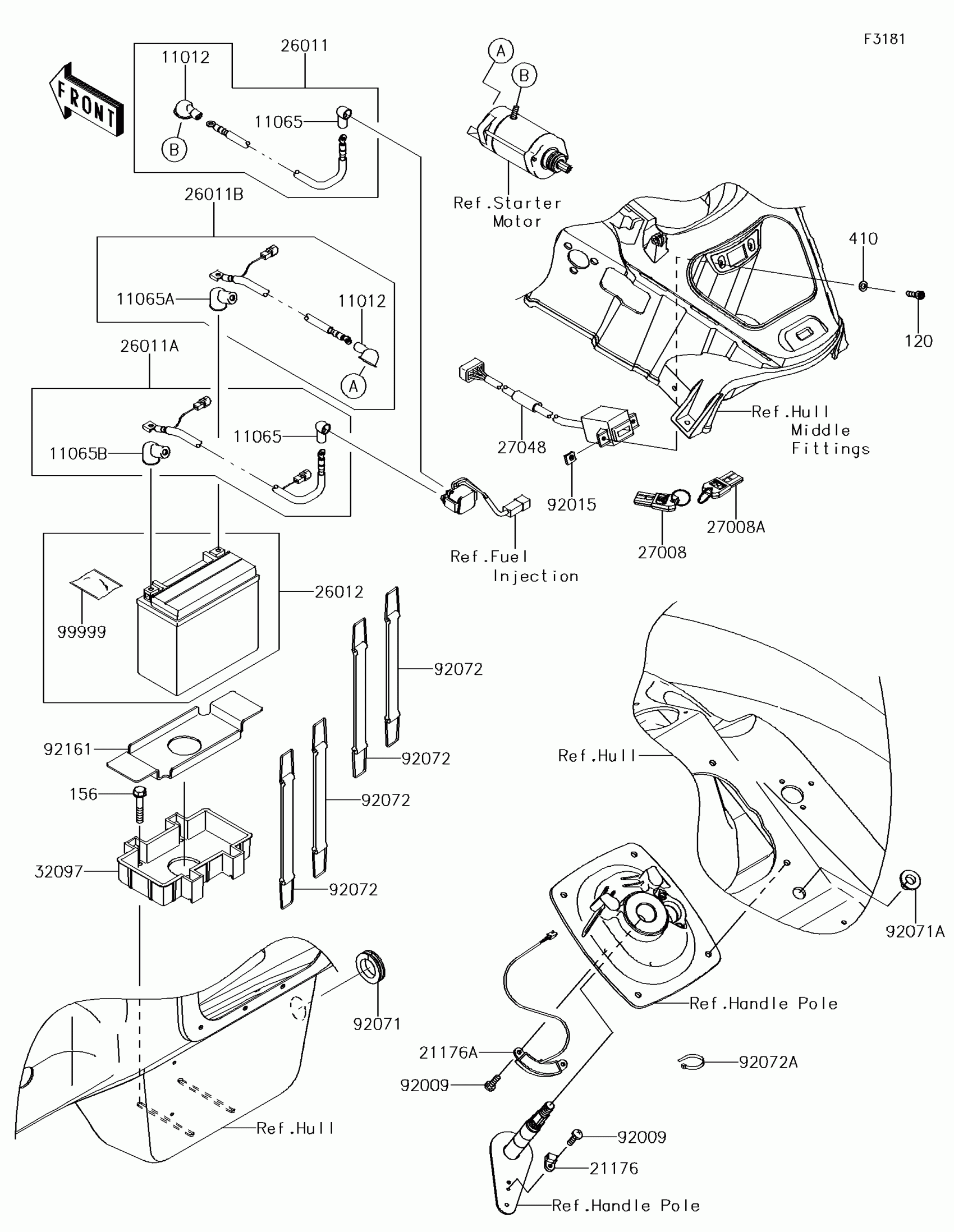

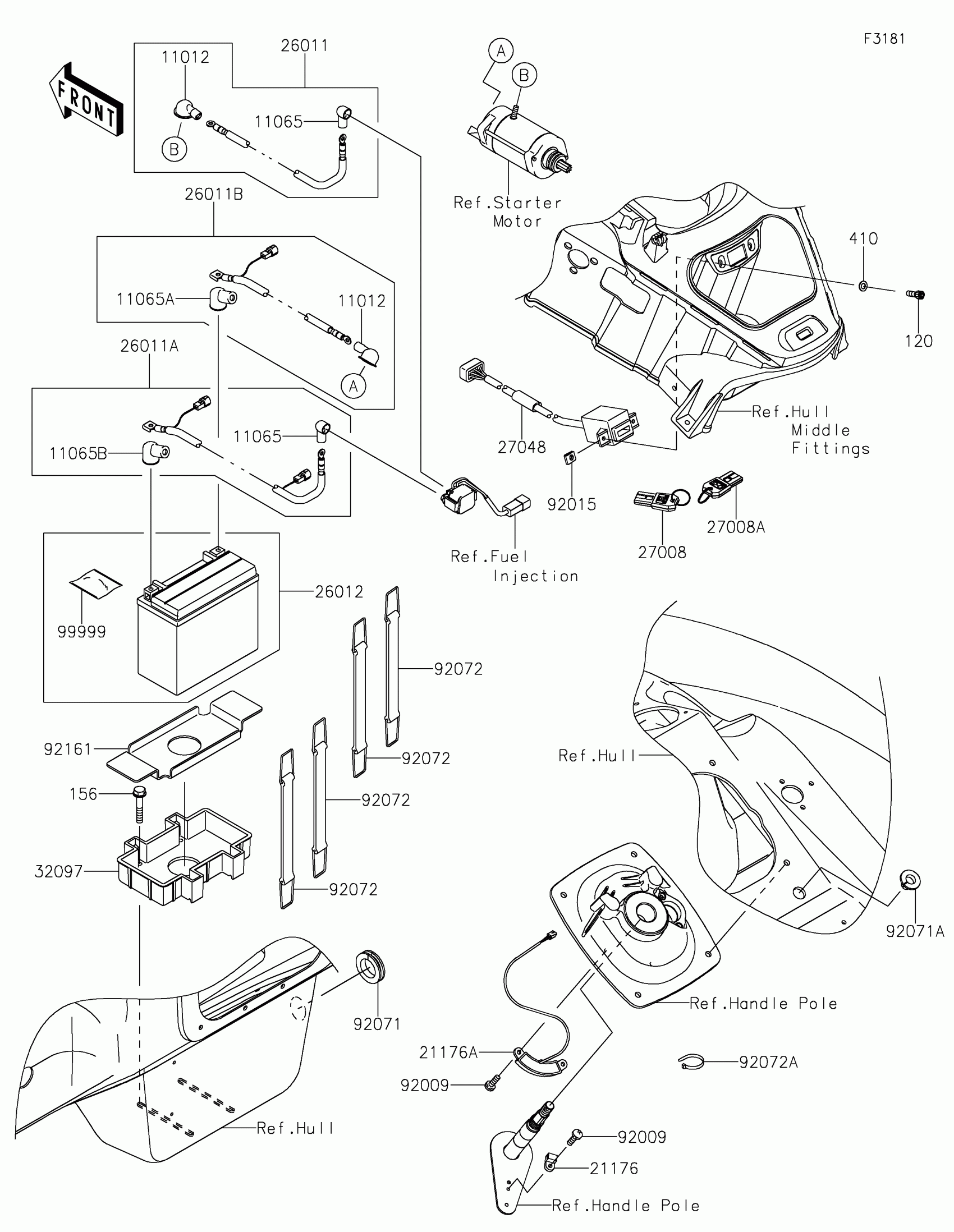

Kawasaki JET SKI® ULTRA® 310X SE Electrical Equipment Diagram

Description

Price

11012

CAP

11012-3004

Unavailable

11065

CAP

11065-3716

$2.80

11065A

CAP,TERMINAL

11065-3729

$8.98

11065B

CAP,TERMINAL

11065-3732

$11.32

120

BOLT-SOCKET,5X16

120R0516

$0.80

156

BOLT-WP,6X35

156R0635

$4.17

21176

SENSOR,MAGNET

21176-3746

$29.97

21176A

SENSOR,HOLE IC

21176-3748

$159.42

26011

WIRE-LEAD,RELAY-STARTER

26011-0723

$100.26

26011A

WIRE-LEAD,BATTERY(+)

26011-0834

$68.35

26011B

WIRE-LEAD,BATTERY(-)

26011-0835

$175.90

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

27008

FPO MODE KEY

27008-0566

$68.16

27008A

SLO MODE KEY

27008-3768

$78.01

27048

SWITCH-ASSY

27048-0004

$794.60

32097

CASE-BATTERY

32097-3709

$12.92

410

W-PLAIN-S,5MM

410S0500

$1.20

92009

SCREW,5X16

92009-3868

$1.36

92015

NUT,CLIP,5MM

92015-3830

$6.04

92071

GROMMET,31.5X50X11

92071-0737

$7.42

92071A

GROMMET

92071-3826

$2.75

92072

BAND,340X22

92072-3805

$11.31

92072A

BAND,L=100.08

92072-3882

$1.71

92161

DAMPER,BATTERY CASE

92161-1388

$8.12

99999

BOLT NUT KIT

99999-0311

$10.14
