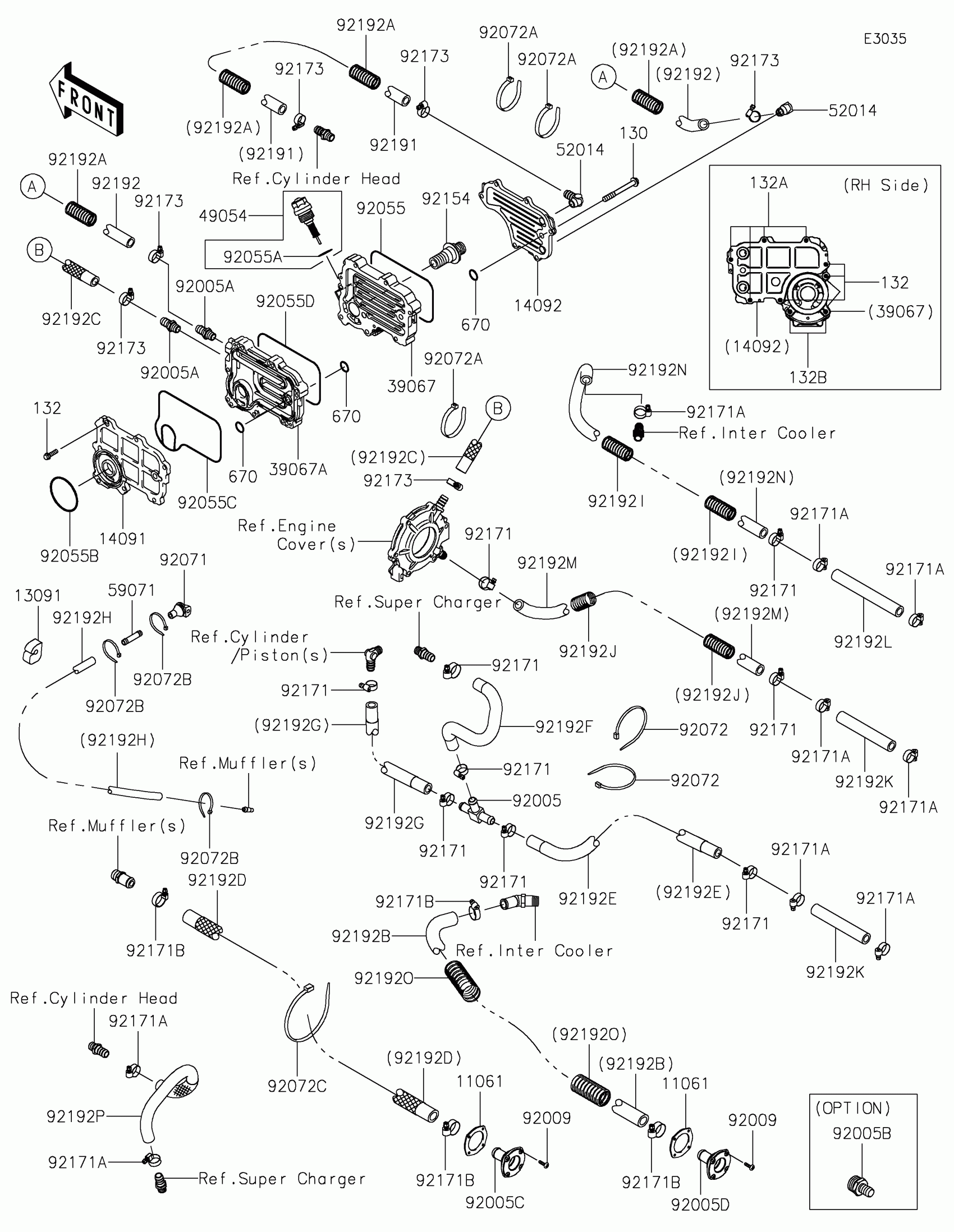

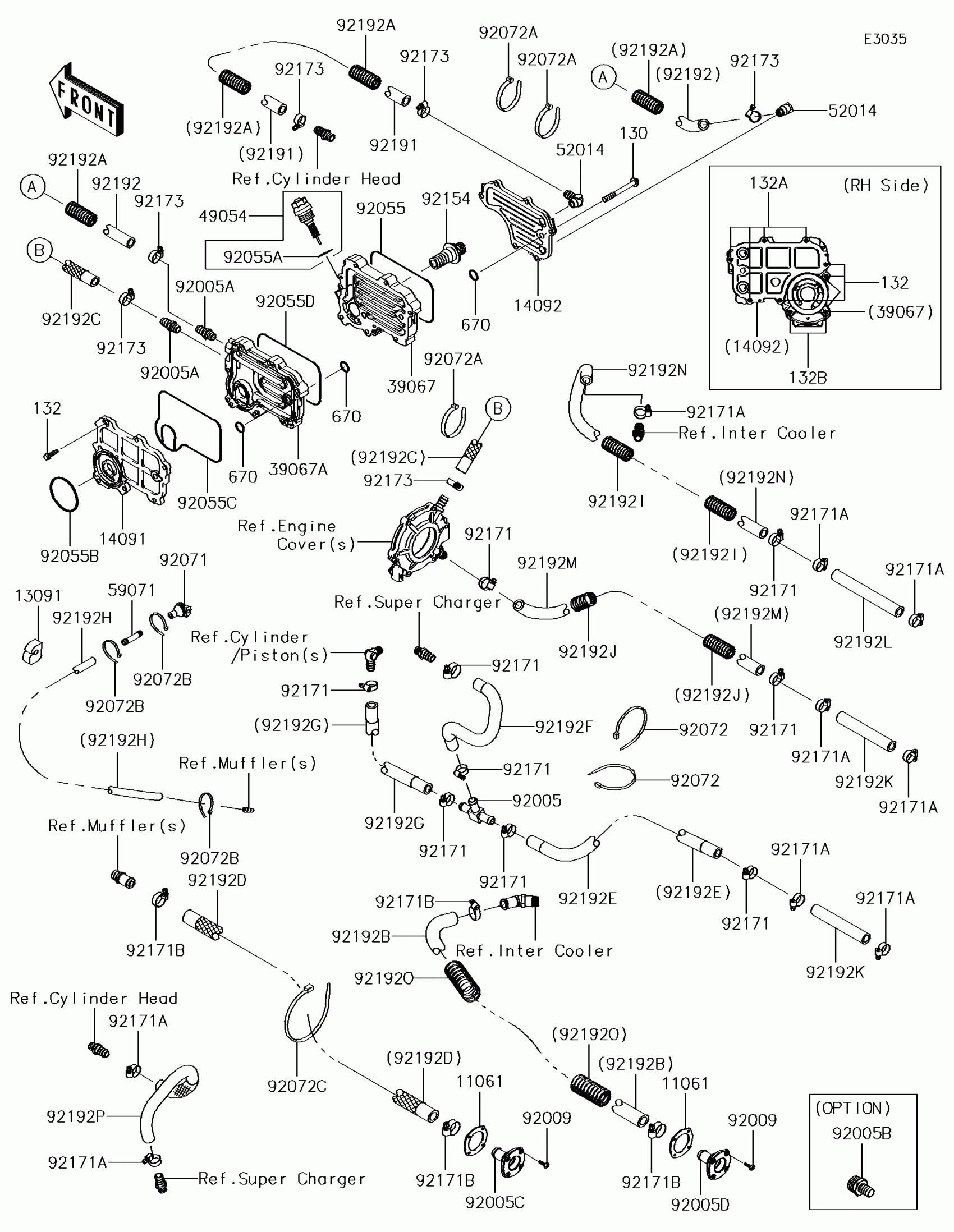

Kawasaki JET SKI® Ultra® 310X SE Cooling Diagram
#
11061
GASKET
11061-3769
$4.68
13091
HOLDER
13091-3712
$4.65
14091
COVER,INSIDE
14091-3755
$85.68
14092
COVER,OUTSIDE
14092-0765
$67.02
39067
COOLER-OIL,OUTSIDE
39067-0708
$278.45
39067A
COOLER-OIL
39067-3704
$259.71
49054
THERMOSTAT
49054-3701
$173.79
52014
ELBOW
52014-3711
$30.12
59071
JOINT
59071-3764
$7.64
92005
FITTING
92005-0755
$69.36
92005A
FITTING
92005-3714
$18.72
92005B
FITTING,FLUSH
92005-3748
$9.68
92005C
FITTING,BLACK
92005-3770
$5.28
92005D
FITTING,GRAY
92005-3771
$5.42
92009
SCREW,TAPPING,4X16
92009-3849
$1.59
92055
RING-O
92055-0708
$14.04
92055A
RING-O
92055-0727
$6.00
92055B
RING-O,58X3
92055-3767
$6.18
92055C
RING-O
92055-3770
$21.99
92055D
RING-O
92055-3772
$13.06
92071
GROMMET
92071-3815
$5.46
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,L=200
92072-0106
$5.65
92072B
BAND,L=100.08
92072-3882
$2.02
92072C
BAND,L=372.24
92072-3883
$1.59
92154
BOLT
92154-3719
$46.70
92171
CLAMP
92171-3701
$7.43
92171A
CLAMP
92171-3714
$9.49
92171B
CLAMP,26MM
92171-3720
$5.04
92173
CLAMP
92173-1482
$16.35
92191
TUBE,12X18X520
92191-3919
$11.52
92192
TUBE,OIL COOLER-ELBOW
92192-0971
$27.54
92192A
TUBE,CORRUGATED,19.5X23.8X460
92192-0986
$3.70
92192B
TUBE,INTER COOLER-HULL
92192-1192
$54.07
92192C
TUBE,GENE.COVER-O/C
92192-1202
$69.60
92192D
TUBE,16X23X950
92192-1215
$111.76
92192E
TUBE,HULL-FITTING
92192-1297
$82.29
92192F
TUBE,FITTING-COMPRESSOR
92192-1298
$39.77
92192G
TUBE,FITTING-CYLINDER
92192-1299
$56.43
130
BOLT-FLANGED,8X70
130BD0870
$3.35
132
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
132A
BOLT-FLANGED-SMALL,6X40
132BD0640
$5.25
132B
BOLT-FLANGED-SMALL,6X45
132BD0645
$4.69
670
O RING,14MM
670D2014
$5.52
92192H
TUBE,7X12X1590/30
92192-1509
$41.96
92192I
TUBE,CORRUGATED,19.5X23.8X380
92192-3714
$2.67
92192J
TUBE,CORRUGATED,19.5X23.8X500
92192-3783
$4.62
92192K
TUBE,12X19X120
92192-3796
$10.21
92192L
TUBE,12X19X150
92192-3797
$11.82
92192M
TUBE,12X19X55&620
92192-3798
$37.51
92192N
TUBE,HULL-I/C
92192-3800
$37.51
92192O
TUBE,CORRUGATED,L=870
92192-3862
$6.96
92192P
TUBE,COMPRESSOR-HEAD
92192-3866
$37.95
