2018 Kawasaki Jet Ski® Ultra® 310X Pads Diagram

← All diagrams

Find the part on the Pads diagram for your 2018 Kawasaki Jet Ski® Ultra® 310X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

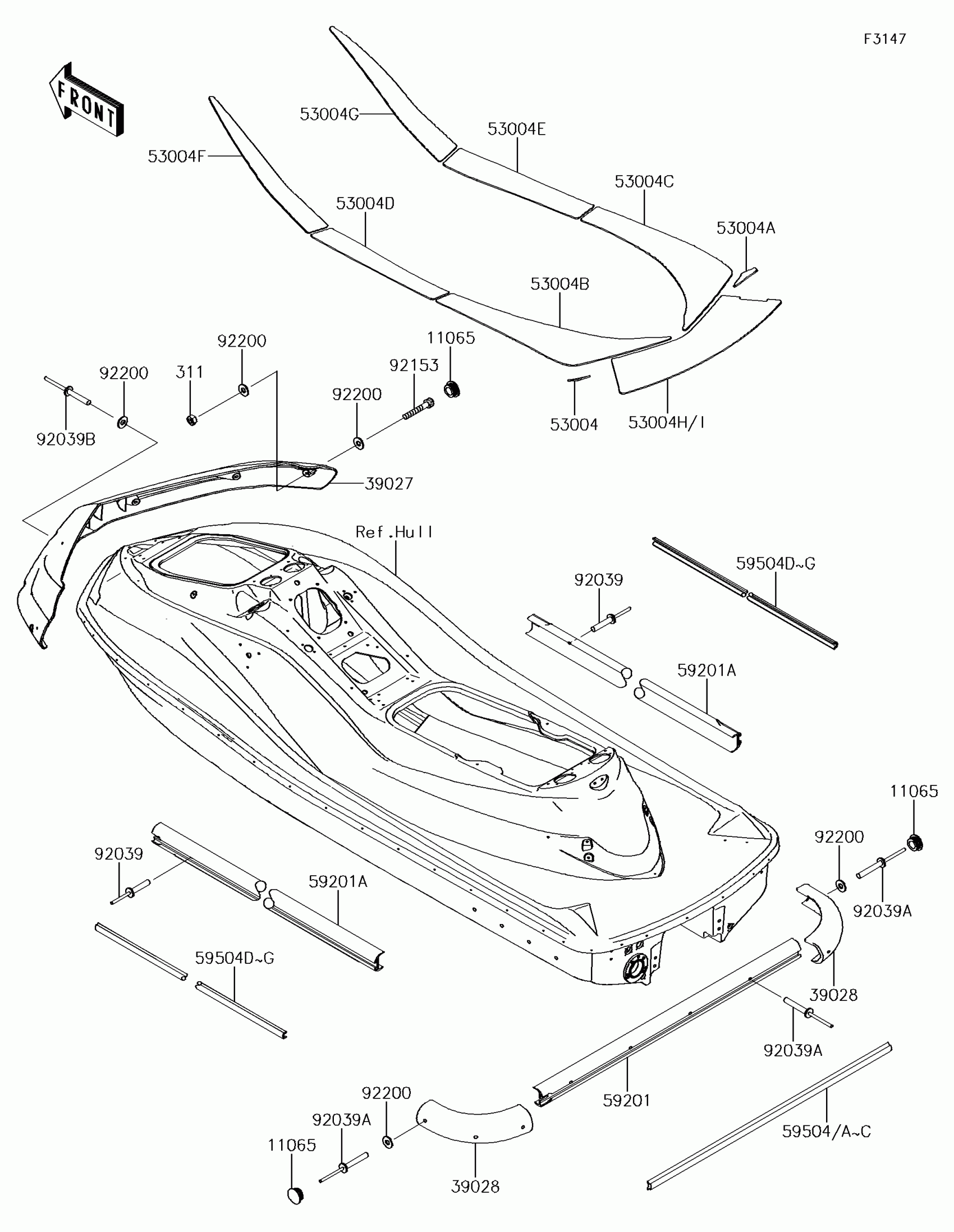

2018 Kawasaki Jet Ski® Ultra® 310X Pads Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,F.BLACK

11065-3707-6Z

1
Out of stock

311

NUT-HEX,5MM

311R0500

1
Out of stock

39027

BUMPER-FRONT,F.BLACK

39027-3747-6Z

1
Out of stock

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

1
Out of stock

53004

MAT,RR,LH

53004-0580

1
Out of stock

53004A

MAT,RR,RH

53004-0581

1
Out of stock

53004B

MAT,FLOOR,MIDDLE,LH

53004-0583

1
Out of stock

53004C

MAT,FLOOR,MIDDLE,RH

53004-0584

1
Out of stock

53004D

MAT,FLOOR,FR,LH

53004-0585

1
Out of stock

53004E

MAT,FLOOR,FR,RH

53004-0586

1
Out of stock

53004F

MAT,FR,LH

53004-0587

1
Out of stock

53004G

MAT,FR,RH

53004-0588

1
Out of stock

53004I

MAT,FLOOR,RR

53004-0597

1
Out of stock

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

1
Out of stock

59201A

BUMPER,SIDE,F.BLACK

59201-3791-6Z

1
Out of stock

59504C

INSERT-BOAT FENDER,RR,F.SILVER

59504-3732-AG

1
Out of stock

59504G

INSERT-BOAT FENDER,SIDE,SILVER

59504-3733-AG

1
Out of stock

92039

RIVET

92039-3771

1
Out of stock

92039A

RIVET

92039-3773

1
Out of stock

92039B

RIVET

92039-3794

1
Out of stock

92153

BOLT,SOCKET,5X30

92153-3742

1
Out of stock

92200

WASHER,5X12X1

92200-3796

1
Out of stock
