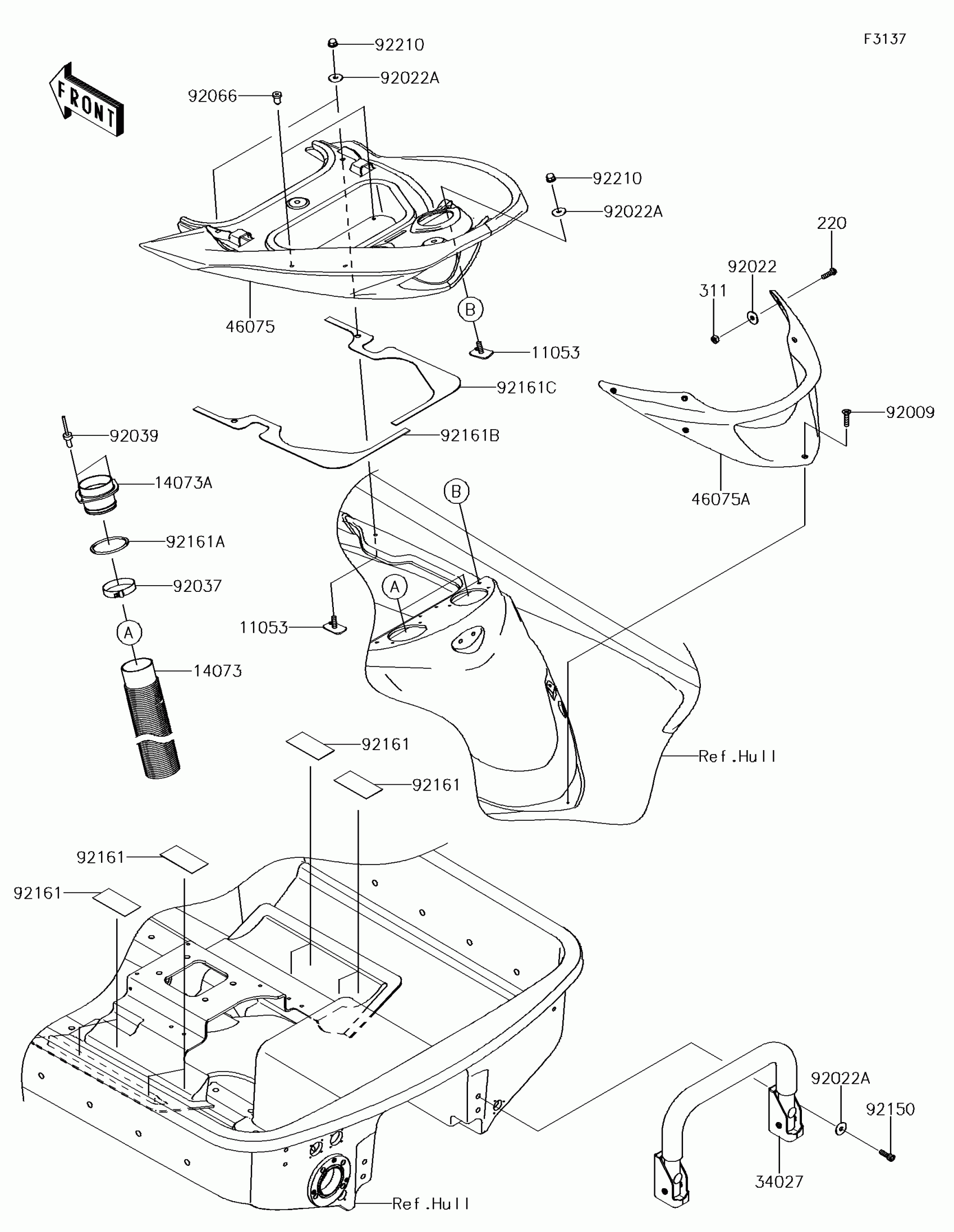

Kawasaki JET SKI® ULTRA® 310X Hull Rear Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.17

14073

DUCT,L=800

14073-3804

$21.41

14073A

DUCT

14073-3805

$5.76

220

SCREW-PAN-CROS,6X20

220R0620

$4.07

311

NUT-HEX,6MM

311AA0600

$0.81

34027

STEP-ASSY

34027-0067

$399.34

46075

GRIP,RR

46075-0589

$347.30

46075A

GRIP,HANDLE

46075-3765

$26.76

92009

SCREW,TAPPING,6X20

92009-3842

$1.35

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3775

$1.25

92066

PLUG

92066-3773

$1.58

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92161

DAMPER

92161-3728

$4.92

92161A

DAMPER

92161-3769

$3.37

92161B

DAMPER

92161-3781

$19.95

92161C

DAMPER

92161-3782

$19.95

92210

NUT,CAP,6MM

92210-3785

$4.27
