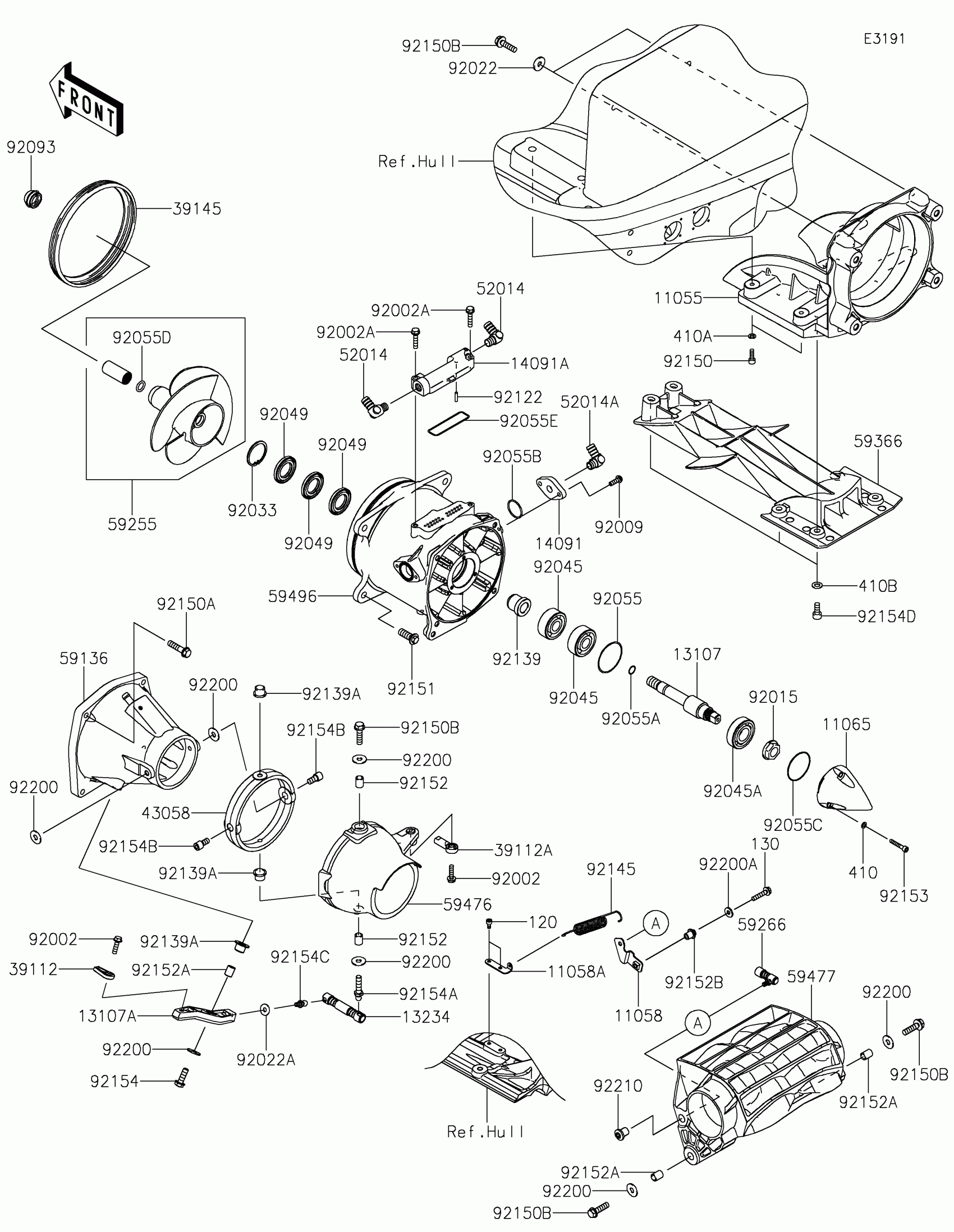

Kawasaki JET SKI® ULTRA® 310X Jet Pump Diagram
#
11055
BRACKET,PUMP
11055-3710
$566.06
11058
BRACKET
11058-1250
$6.28
11058A
BRACKET
11058-1251
$3.29
11065
CAP
11065-0888
$61.99
13107
SHAFT
13107-0764
$110.18
13107A
SHAFT
13107-3804
$45.39
13234
SHAFT-COMP
13234-3712
$65.53
14091
COVER,COOLING TUBE
14091-3808
$25.24
14091A
COVER,VANE GUIDE
14091-3817
$28.84
39112
RODEND-TIE
39112-3703
$22.16
39112A
RODEND-TIE
39112-3707
$23.25
39145
TRIM-SEAL
39145-3809
$30.12
43058
RING
43058-3735
$54.35
52014
ELBOW
52014-3711
$30.12
52014A
ELBOW
52014-3727
$38.71
59136
NOZZLE-PUMP
59136-3768
$182.11
59255
IMPELLER-COMP
59255-0001
$446.91
59266
JOINT-BALL
59266-3710
$39.65
59366
GRATE
59366-3724
$239.47
59476
NOZZLE-STRG
59476-0003
$263.90
59477
BUCKET-REVERSE
59477-0005
$231.12
59496
VANE-GUIDE
59496-0013
$504.88
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X30
92002-3726
$4.69
92009
SCREW,6X20
92009-3848
$2.61
92015
NUT,18MM
92015-1512
$18.89
92022
WASHER,8.4X23X2.5
92022-3744
$4.18
92022A
WASHER
92022-567
$2.67
92033
RING-SNAP
92033-3730
$9.11
92045
BEARING-BALL,6303R-6
92045-3740
$40.75
92045A
BEARING-BALL,62/222RS
92045-3743
$23.03
92049
SEAL-OIL
92049-3739
$28.94
92055
RING-O,49.7X2.4
92055-0183
$2.41
92055A
RING-O,12X1.5
92055-025
$4.69
92055B
RING-O,27.7X1.9
92055-1272
$5.52
92055C
RING-O
92055-3741
$3.32
92055D
RING-O
92055-3760
$4.52
92055E
RING-O,66.5X2.0
92055-3784
$7.45
92093
SEAL
92093-3749
$4.96
92122
ROLLER
92122-0044
$5.52
92139
BUSHING
92139-0767
$33.80
92139A
BUSHING
92139-3720
$8.81
92145
SPRING
92145-2321
$22.64
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,8X35
92150-3792
$7.34
92150B
BOLT,FLANGED,8X30
92150-3803
$7.34
92151
BOLT,10X30
92151-3706
$6.57
92152
COLLAR,8.2X11.8X13.5
92152-1694
$8.58
92152A
COLLAR,8.2X11.8X15
92152-3703
$7.68
92152B
COLLAR
92152-3802
$24.74
92153
BOLT,SOCKET,5X30
92153-3742
$2.97
92154
BOLT,FLANGED,8X25
92154-3705
$7.24
92154A
BOLT,BALL,8X30
92154-3706
$28.96
92154B
BOLT,SOCKET,8X15
92154-3707
$12.58
92154C
BOLT,BALL,6MM
92154-3710
$23.99
92154D
BOLT,SOCKET,8X18
92154-3711
$5.05
92200
WASHER,8.0X22.0X1.5
92200-0174
$2.61
92200A
WASHER,6.5X16X2.0
92200-1543
$2.34
92210
NUT,6MM
92210-3789
$20.70
120
BOLT-SOCKET,5X10
120R0510
$3.94
130
BOLT-FLANGED,6X30
130R0630
$2.15
410
W-PLAIN-S,5MM
410S0500
$1.59
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410B
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
