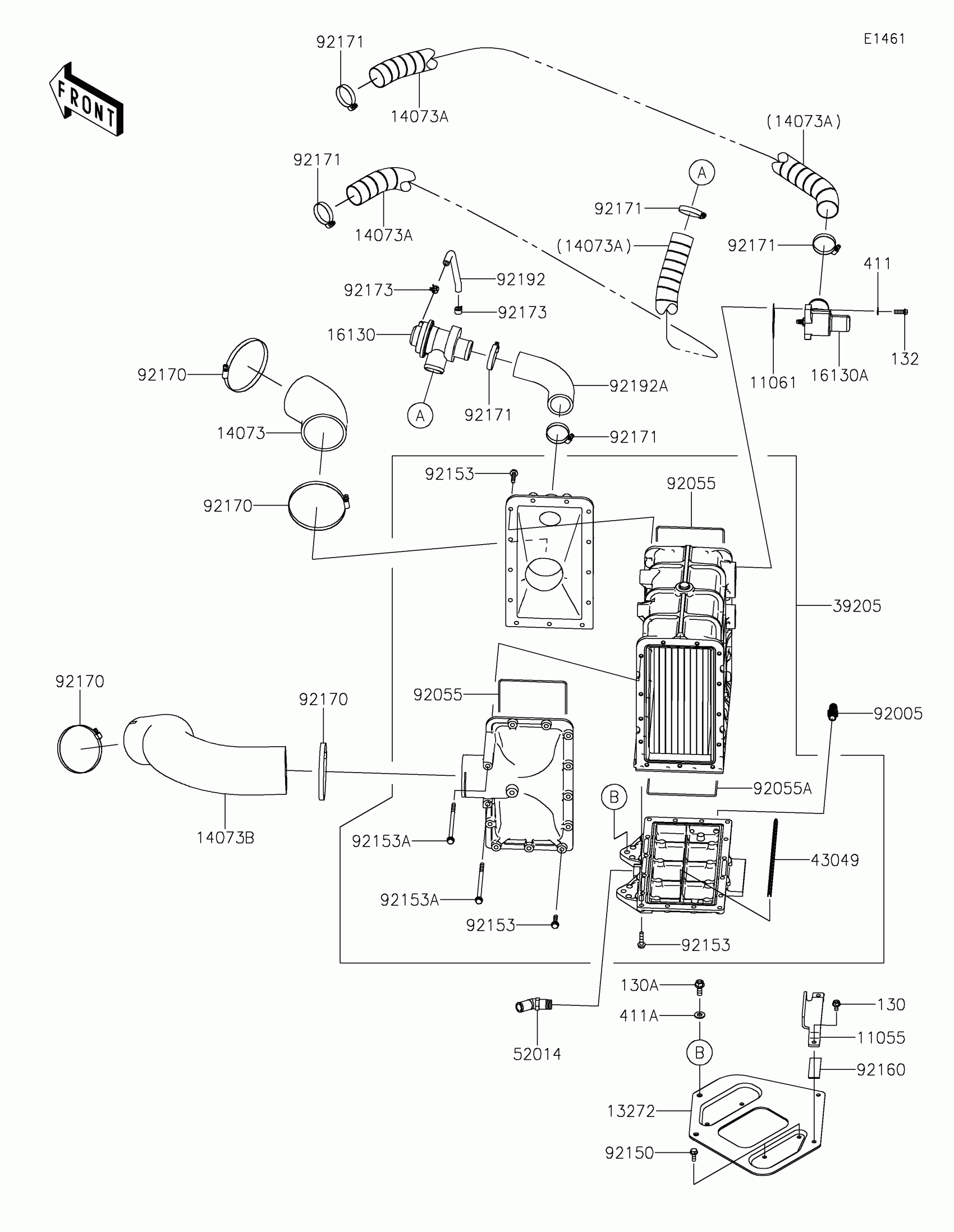

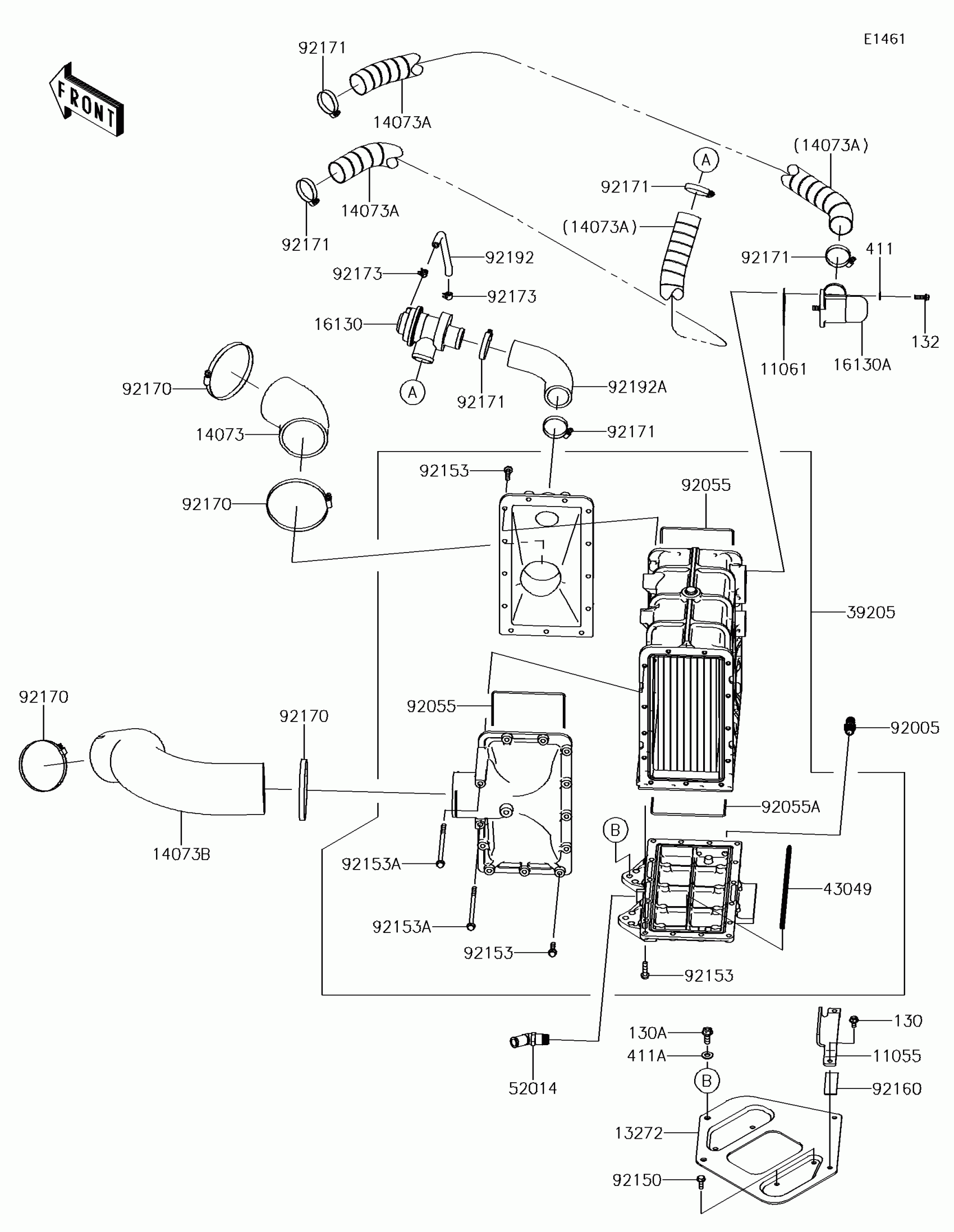

2018 Kawasaki JET SKI® Ultra® 310X Inter Cooler Diagram

← All diagrams

Find the part on the Inter Cooler diagram for your 2018 Kawasaki JET SKI® Ultra® 310X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki JET SKI® Ultra® 310X Inter Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-3714

1

$32.70

In stock

11061

GASKET

11061-3765

1
Out of stock

130

BOLT-FLANGED,6X12

130CD0612

1

$1.53

In stock

130A

BOLT-FLANGED,8X20

130CD0820

1

$2.20

In stock

132

1

$1.75

In stock

13272

PLATE

13272-3721

1

$124.76

In stock

14073

DUCT,I/C-TH.

14073-3823

1

$40.05

In stock

14073A

1

$30.89

In stock

14073B

DUCT,S/C-I/C

14073-3839

1

$149.42

In stock

16130

VALVE-ASSY-RELIEF,AIR BYPASS

16130-3703

1
Out of stock

16130A

VALVE-ASSY-RELIEF,BLOW OFF

16130-3707

1
Out of stock

39205

1

$2,633.83

In stock

411

WASHER-PLAIN,6MM

411S0600

1
Out of stock

411A

WASHER-PLAIN,8MM

411S0800

1
Out of stock

43049

PACKING

43049-3719

1
Out of stock

52014

ELBOW

52014-3714

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92055

RING-O

92055-3779

1
Out of stock

92055A

RING-O

92055-3780

1
Out of stock

92150

BOLT,6X18

92150-3729

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-3750

1
Out of stock

92153A

BOLT,FLANGED,6X110

92153-3751

1
Out of stock

92160

DAMPER

92160-1075

1
Out of stock

92170

CLAMP

92170-3764

1

$9.95

In stock

92171

CLAMP

92171-3725

1
Out of stock

92173

CLAMP

92173-1038

1
Out of stock

92192

TUBE,5.8X10.8X140

92192-1512

1
Out of stock

92192A

TUBE,I/C-ABV

92192-3784

1
Out of stock
