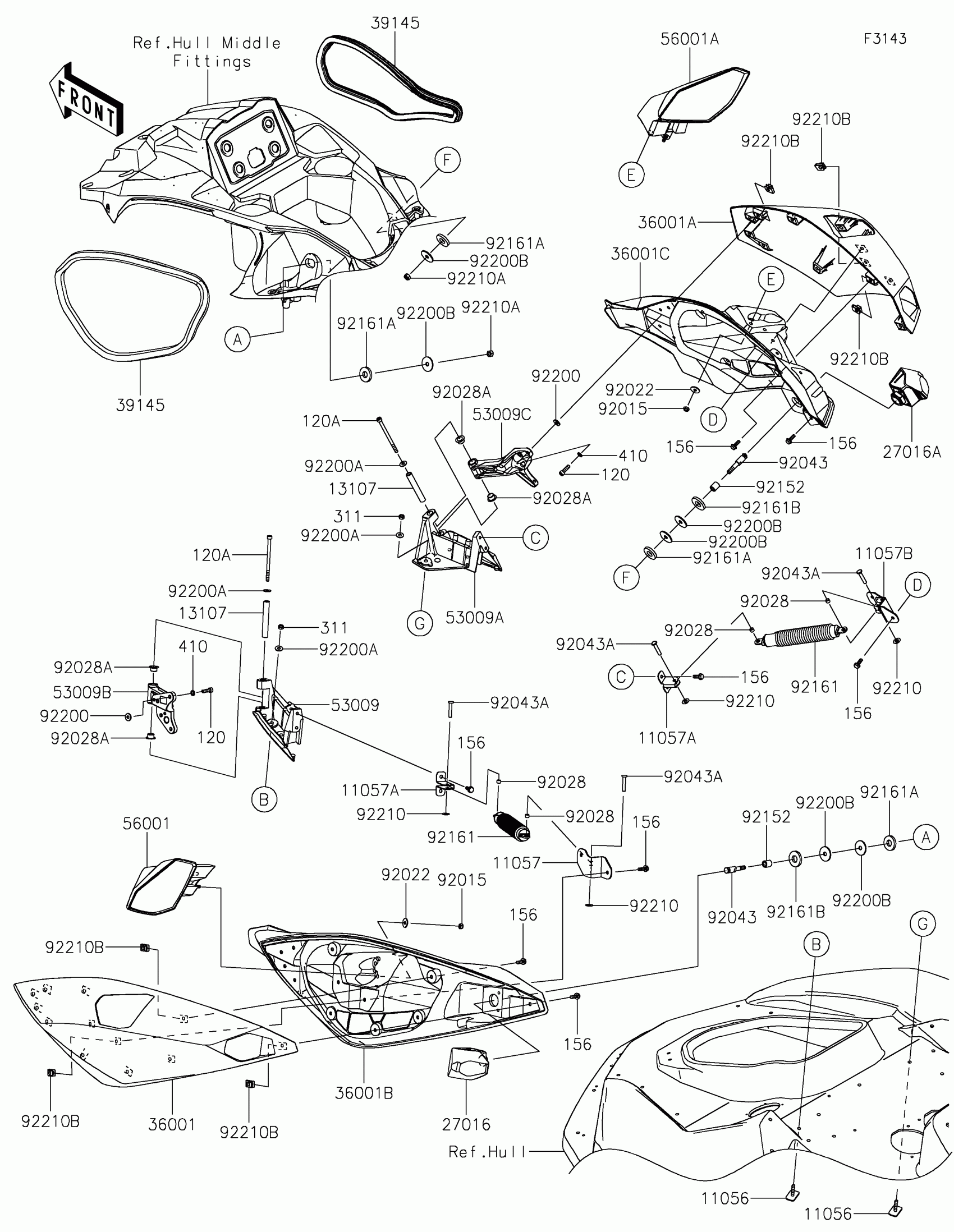

Kawasaki JET SKI® ULTRA® 310X Hull Fittings(Side Storage) Diagram

#

Description
Price

11056

BRACKET

11056-3724

$5.05

11057

BRACKET,HATCH SIDE

11057-7467

$32.77

11057A

BRACKET,DECK SIDE

11057-7469

$11.10

11057B

BRACKET,HATCH SIDE

11057-7470

$32.77

13107

SHAFT,FRONT HINGE

13107-0944

$15.39

27016

LOCK-ASSY,SIDE COVER,LH

27016-0103

$74.59

27016A

LOCK-ASSY,SIDE COVER,RH

27016-0104

$74.59

36001

COVER-SIDE,LH,N.RED

36001-0710-72A

$84.68

36001A

COVER-SIDE,RH,N.RED

36001-0711-72A

$84.68

36001B

COVER-SIDE,LH,INNER

36001-0712

$31.91

36001C

COVER-SIDE,RH,INNER

36001-0713

$31.91

39145

TRIM-SEAL

39145-0779

$13.20

53009

HINGE,DECK SIDE

53009-0308

$70.77

53009A

HINGE,DECK SIDE

53009-0309

$70.77

53009B

HINGE,HATCH SIDE

53009-0310

$89.13

53009C

HINGE,HATCH SIDE

53009-0311

$89.13

56001

MIRROR-ASSY,LH

56001-0440

$104.72

56001A

MIRROR-ASSY,RH

56001-0441

$104.72

92015

NUT,LOCK,6MM

92015-3766

$5.91

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3765

$3.29

92028A

BUSHING

92028-3770

$2.71

92043

PIN

92043-0754

$20.32

92043A

PIN,6X33

92043-3748

$11.20

92152

COLLAR,8.2X14X16.2

92152-0979

$13.49

92161

DAMPER,HATCH

92161-1581

$189.92

92161A

DAMPER

92161-3739

$6.18

92161B

DAMPER

92161-3747

$5.12

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER,6.5X16X1.0

92200-3712

$3.73

92200B

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,SPEED,6MM

92210-3739

$1.86

92210A

NUT,LOCK,8MM

92210-3742

$6.57

92210B

NUT,6MM

92210-3768

$5.79

120

BOLT-SOCKET,6X22

120R0622

$2.73

120A

BOLT-SOCKET,6X95

120R0695

$8.50

156

BOLT-WP,6X18

156R0618

$3.73

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
