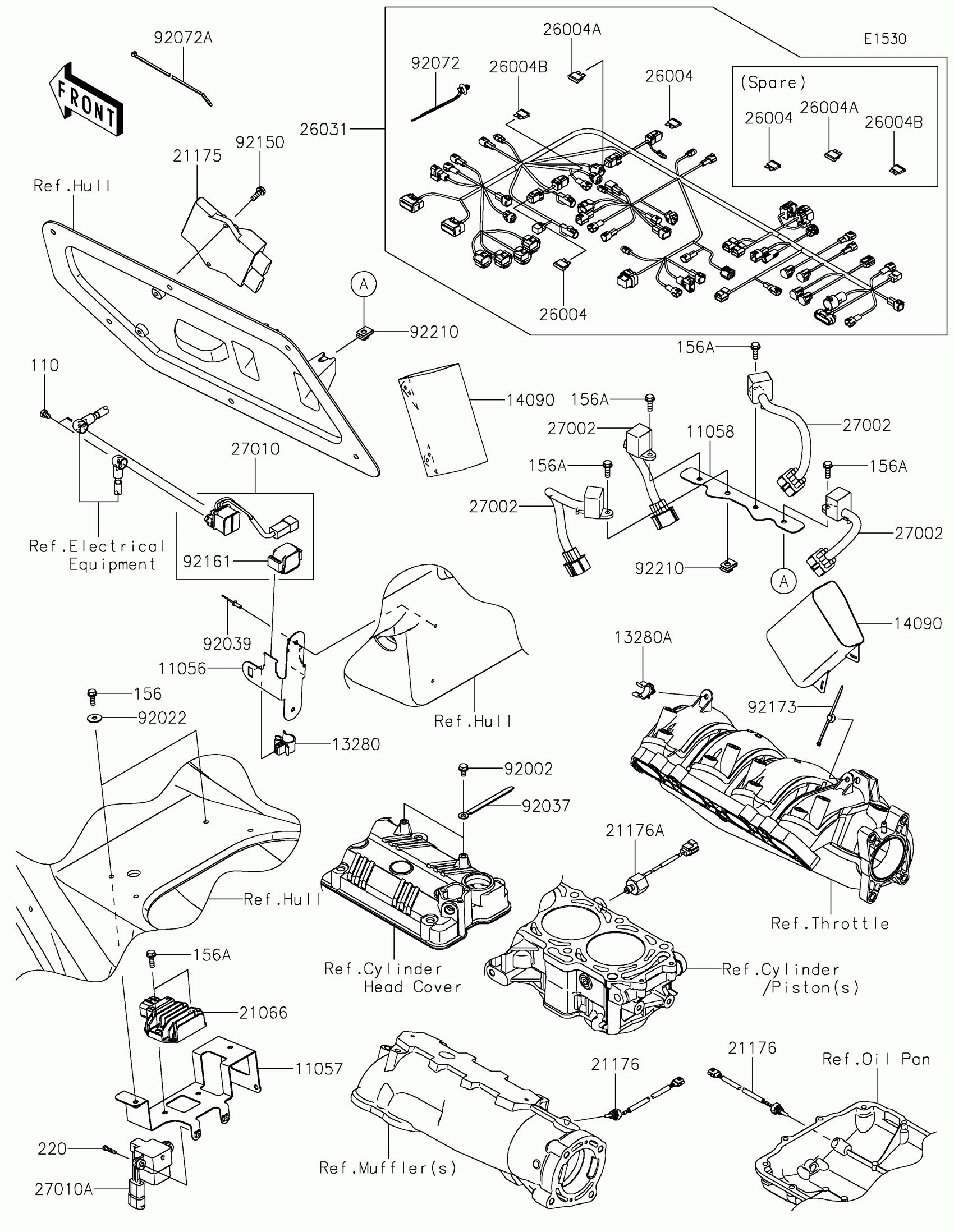

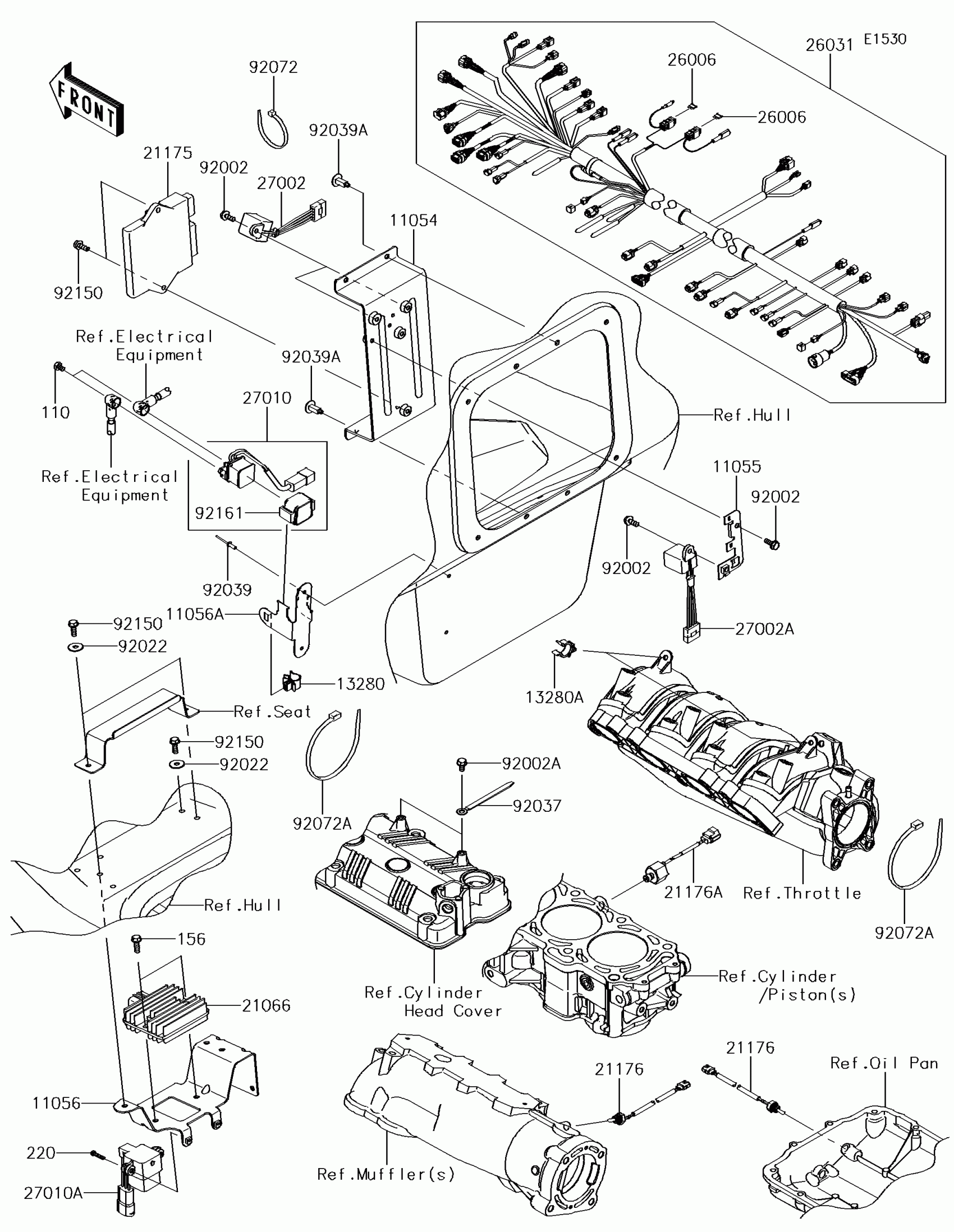

Kawasaki JET SKI® ULTRA® 310X Fuel Injection Diagram

Description

Price

110

BOLT,6X8

110R0608

$2.63

11054

BRACKET,ECU&RELAY

11054-3743

$12.55

11055

BRACKET,FUSE

11055-3713

$11.87

11056

BRACKET,REGULATOR&VDS

11056-3702

$104.12

11056A

BRACKET,SWITCH

11056-3855

$20.39

13280

HOLDER

13280-0789

$1.70

13280A

HOLDER,HARNESS

13280-3760

$3.70

156

BOLT-WP,6X20

156R0620

$3.65

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-0954

$970.79

21176

SENSOR,TEMP

21176-0741

$94.25

21176A

SENSOR,KNOCK

21176-0770

$122.77

220

SCREW-PAN-CROS,4X20

220R0420

$2.41

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26031

HARNESS,MAIN

26031-1698

$670.18

27002

RELAY-ASSY

27002-3703

$51.63

27002A

RELAY-ASSY

27002-3704

$135.96

27010

SWITCH

27010-0710

$156.25

27010A

SWITCH,VDS

27010-3785

$259.40

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP,L=100

92037-3736

$5.52

92039

RIVET

92039-3714

$0.95

92039A

RIVET

92039-3788

$3.39

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=372.24

92072-3883

$1.59

92150

BOLT,6X18

92150-3729

$4.69

92161

DAMPER,SWITCH

92161-1625

$6.75
