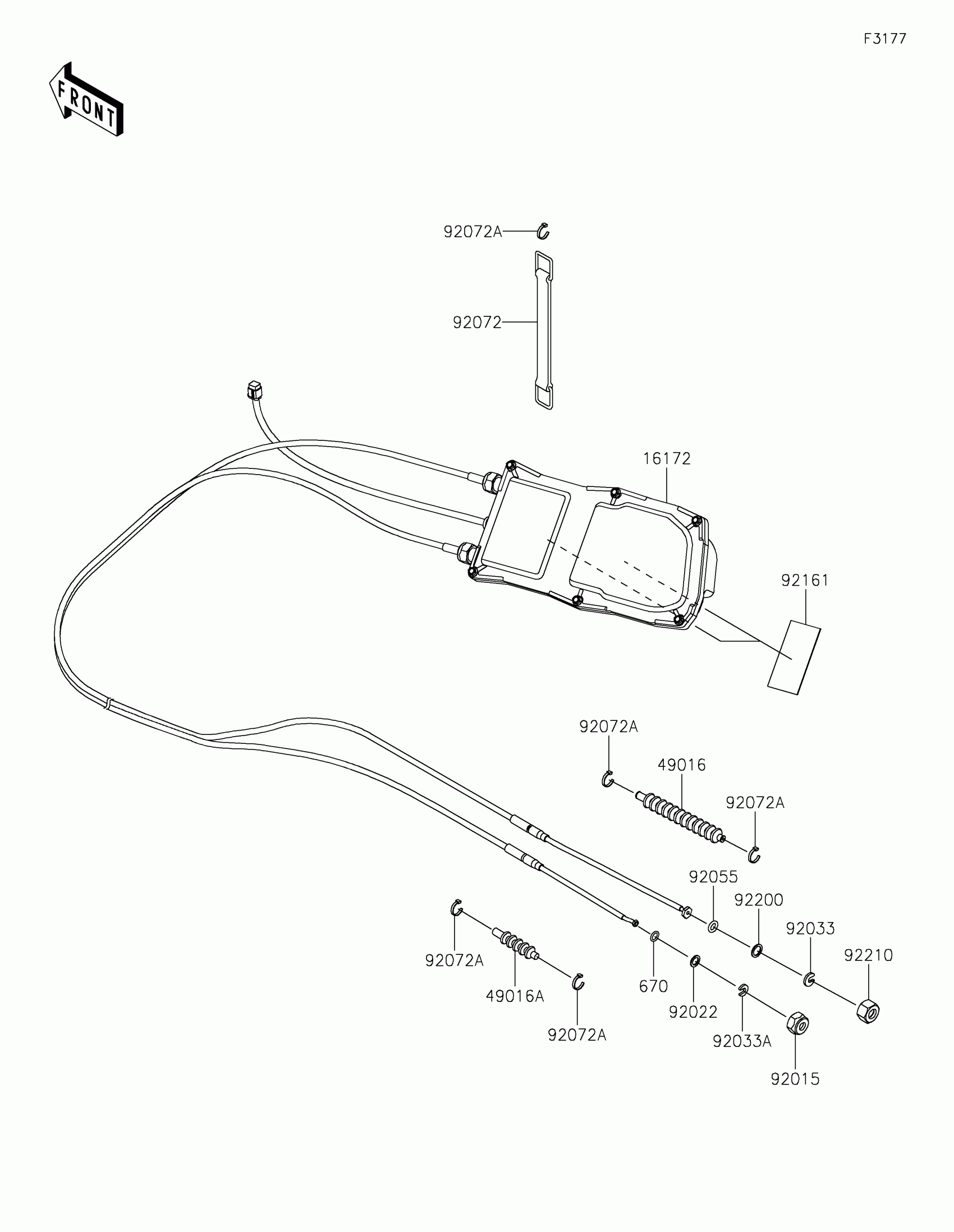

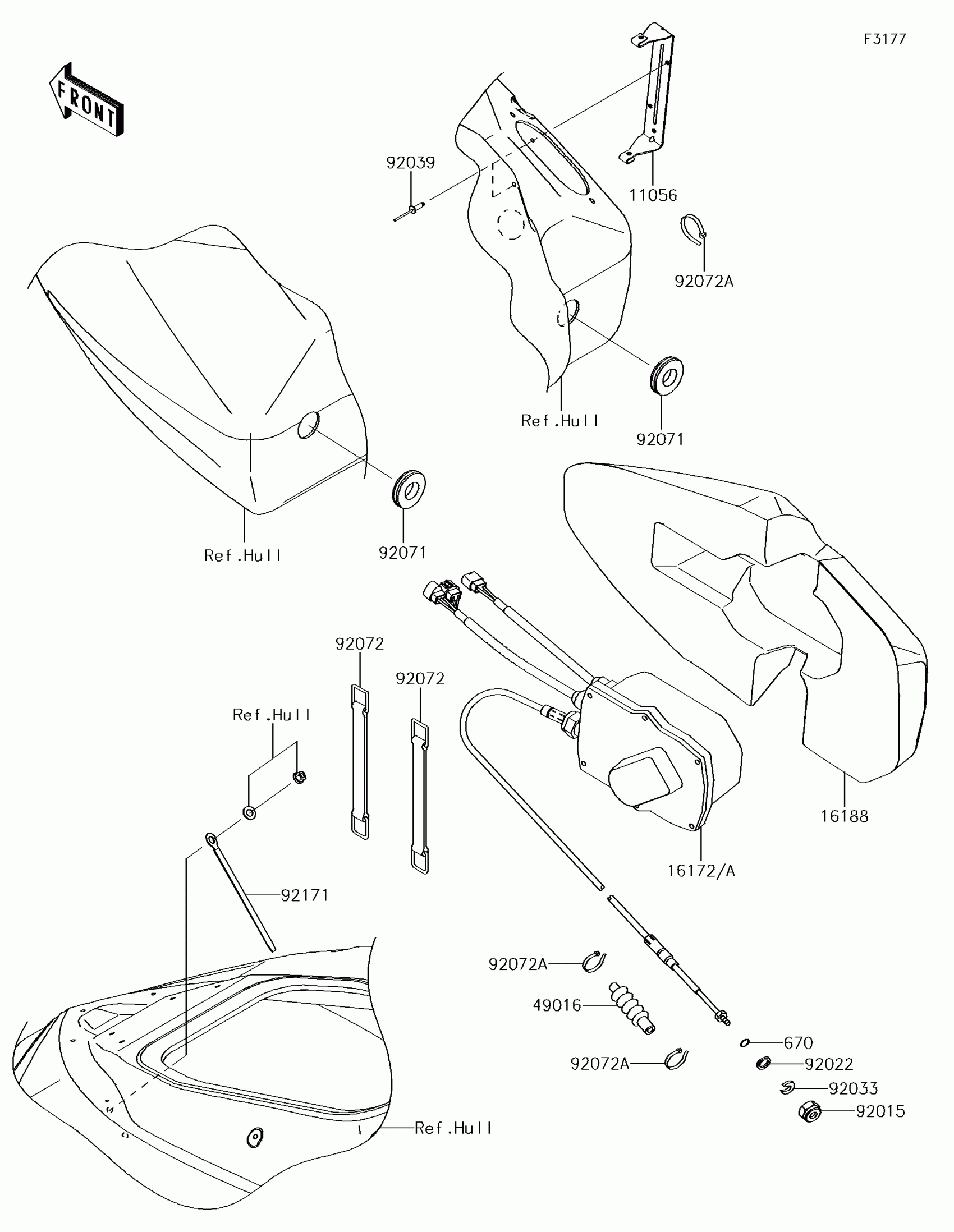

Kawasaki JET SKI® ULTRA® 310X Control Diagram

Description

Price

16172

ACTUATOR,JET PUMP

16172-0572

$1,439.20

49016

COVER-SEAL

49016-0695

$6.54

49016A

COVER-SEAL,TILT CABLE

49016-3702

$4.10

92015

NUT,20MM

92015-526

$29.72

92022

WASHER

92022-535

$7.34

92033

RING-SNAP

92033-3735

$7.69

92033A

RING-SNAP,7.7X17.5X3.0

92033-3737

$6.89

92055

RING-O

92055-3778

$1.34

92072

BAND,BATTERY

92072-3879

$35.74

92072A

BAND,L=100.08

92072-3882

$2.02

92161

DAMPER

92161-3728

$5.64

92200

WASHER,14.5X20X1.5

92200-3793

$2.61

92210

NUT,22MM

92210-3772

$13.60

670

O RING,11MM

670B2011

$1.28
