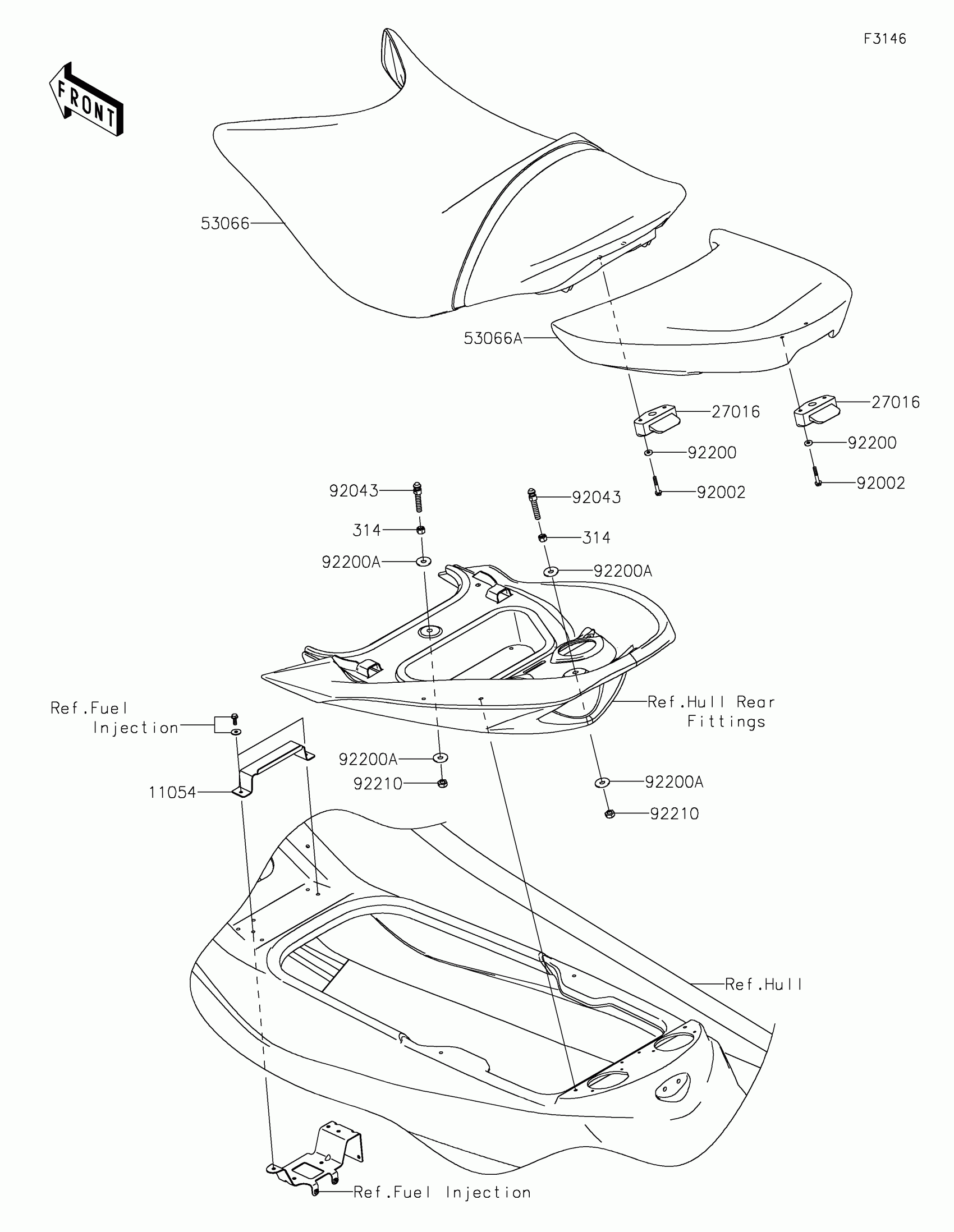

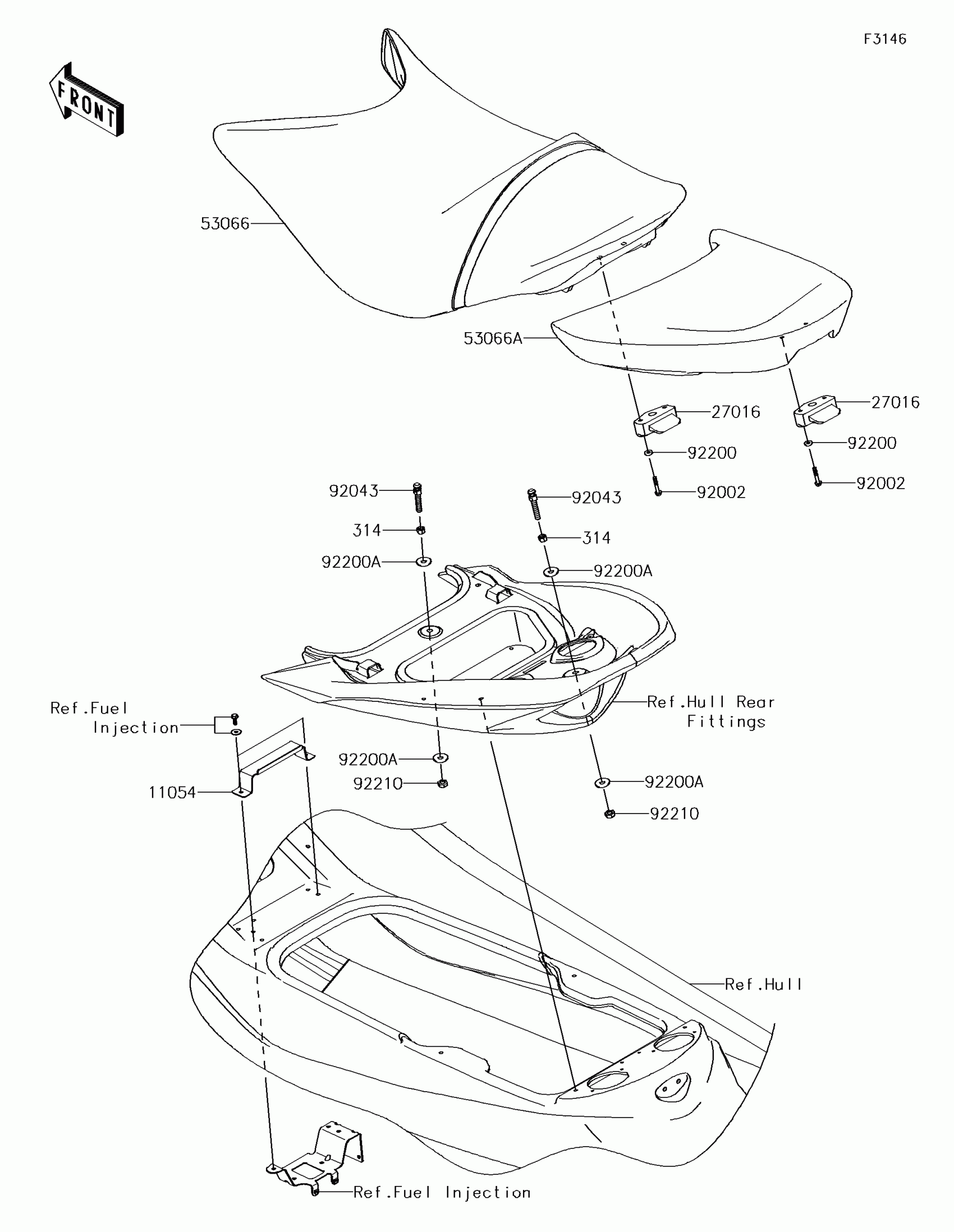

Kawasaki JET SKI® ULTRA® 310R Seat Diagram

Description

Price

11054

BRACKET,FRONT SEAT

11054-3702

$41.62

27016

LOCK-ASSY,SEAT

27016-3758

$100.25

314

NUT-HEX-FINE,10MM

314R1000

$1.68

53066

SEAT-ASSY,FR,GRN/BLK+BAND GRN

53066-0407-41P

$507.78

53066A

SEAT-ASSY,RR,GREEN/BLACK

53066-0419-336

$377.29

92002

BOLT,6X40

92002-3716

$3.79

92043

92043-3763

$47.69

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER

92200-3762

$1.64

92210

NUT,LOCK,10MM

92210-3792

$5.91
