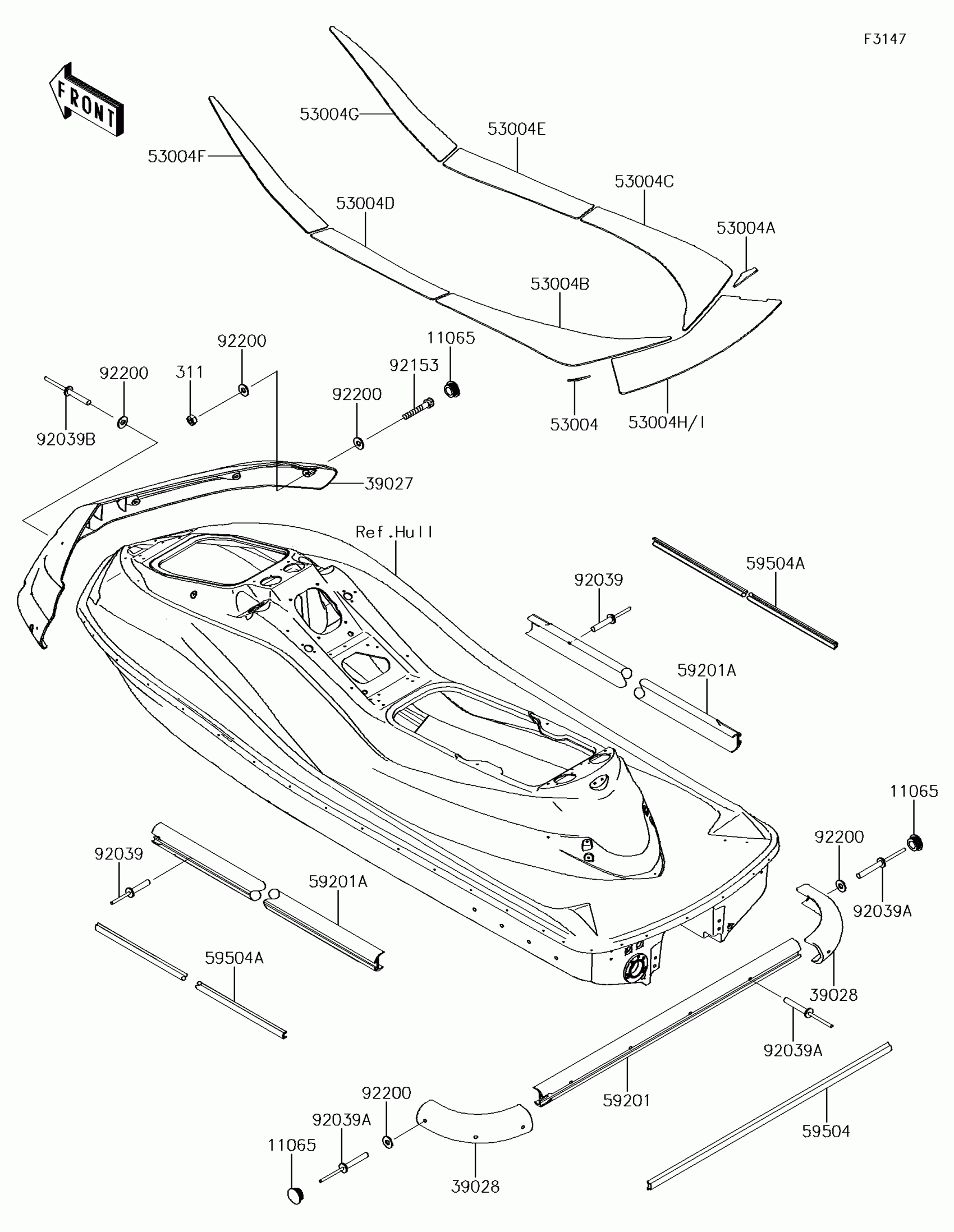

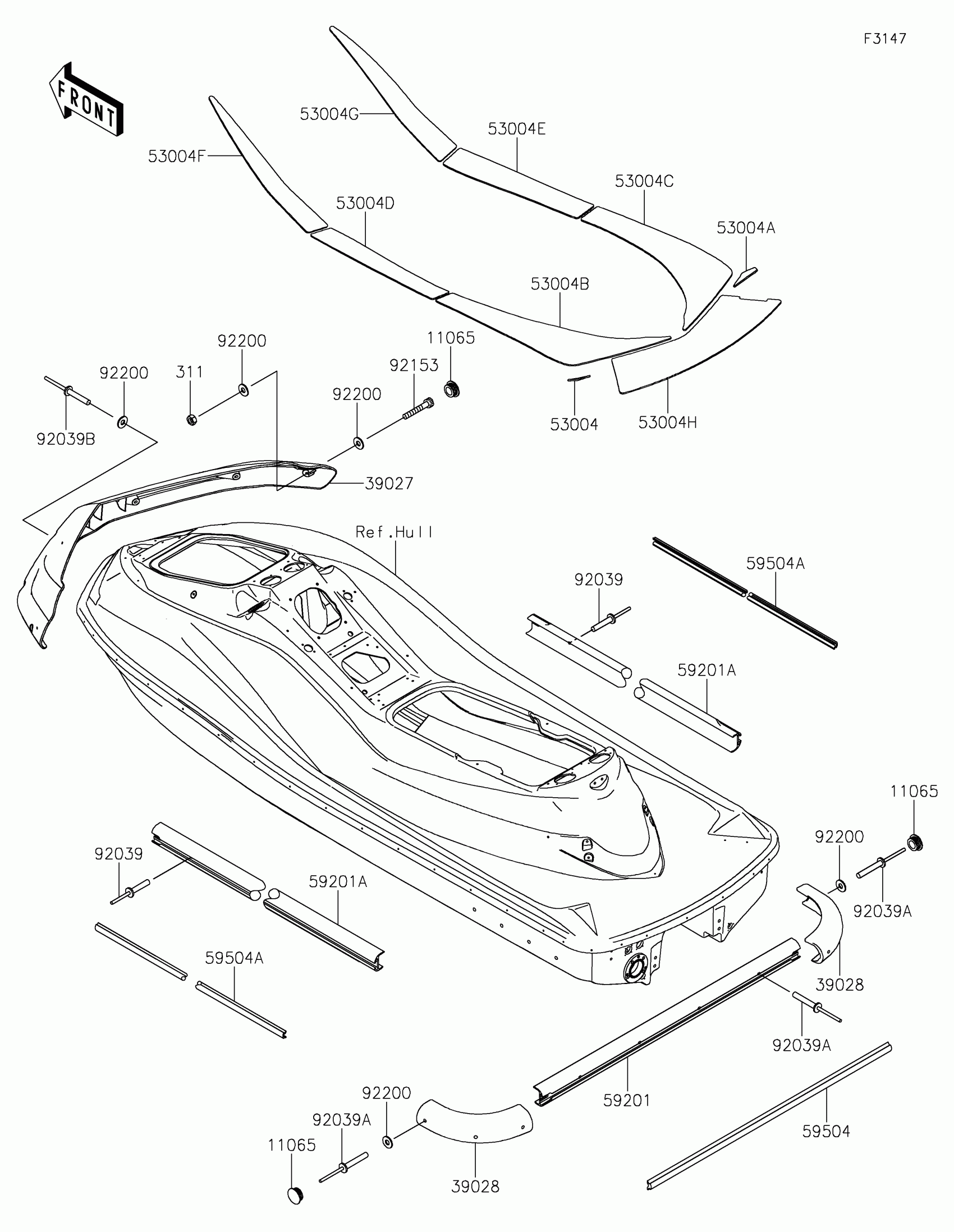

Kawasaki JET SKI® ULTRA® 310R Pads Diagram

#

Description
Price

11065

CAP,F.BLACK

11065-3707-6Z

$3.95

311

NUT-HEX,5MM

311R0500

$1.24

39027

BUMPER-FRONT,F.BLACK

39027-3747-6Z

$92.59

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$50.25

53004

MAT,RR,LH

53004-0580

$8.12

53004A

MAT,RR,RH

53004-0581

$8.12

53004B

MAT,FLOOR,MIDDLE,LH

53004-0583

$38.98

53004C

MAT,FLOOR,MIDDLE,RH

53004-0584

$44.87

53004D

MAT,FLOOR,FR,LH

53004-0585

$14.02

53004E

MAT,FLOOR,FR,RH

53004-0586

$14.02

53004F

MAT,FR,LH

53004-0587

Unavailable

53004G

MAT,FR,RH

53004-0588

Unavailable

53004I

MAT,FLOOR,RR

53004-0597

$34.80

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

$47.24

59201A

BUMPER,SIDE,F.BLACK

59201-3791-6Z

$170.18

59504

INSERT-BOAT FENDER,RR,L.GREEN

59504-3732-290

$37.44

59504A

INSERT-BOAT FENDER,SIDE,L.GRN

59504-3733-290

$80.85

92039

RIVET

92039-3771

$0.79

92039A

RIVET

92039-3773

$0.87

92039B

RIVET

92039-3794

$5.88

92153

BOLT,SOCKET,5X30

92153-3742

$2.09

92200

WASHER,5X12X1

92200-3796

$1.57
