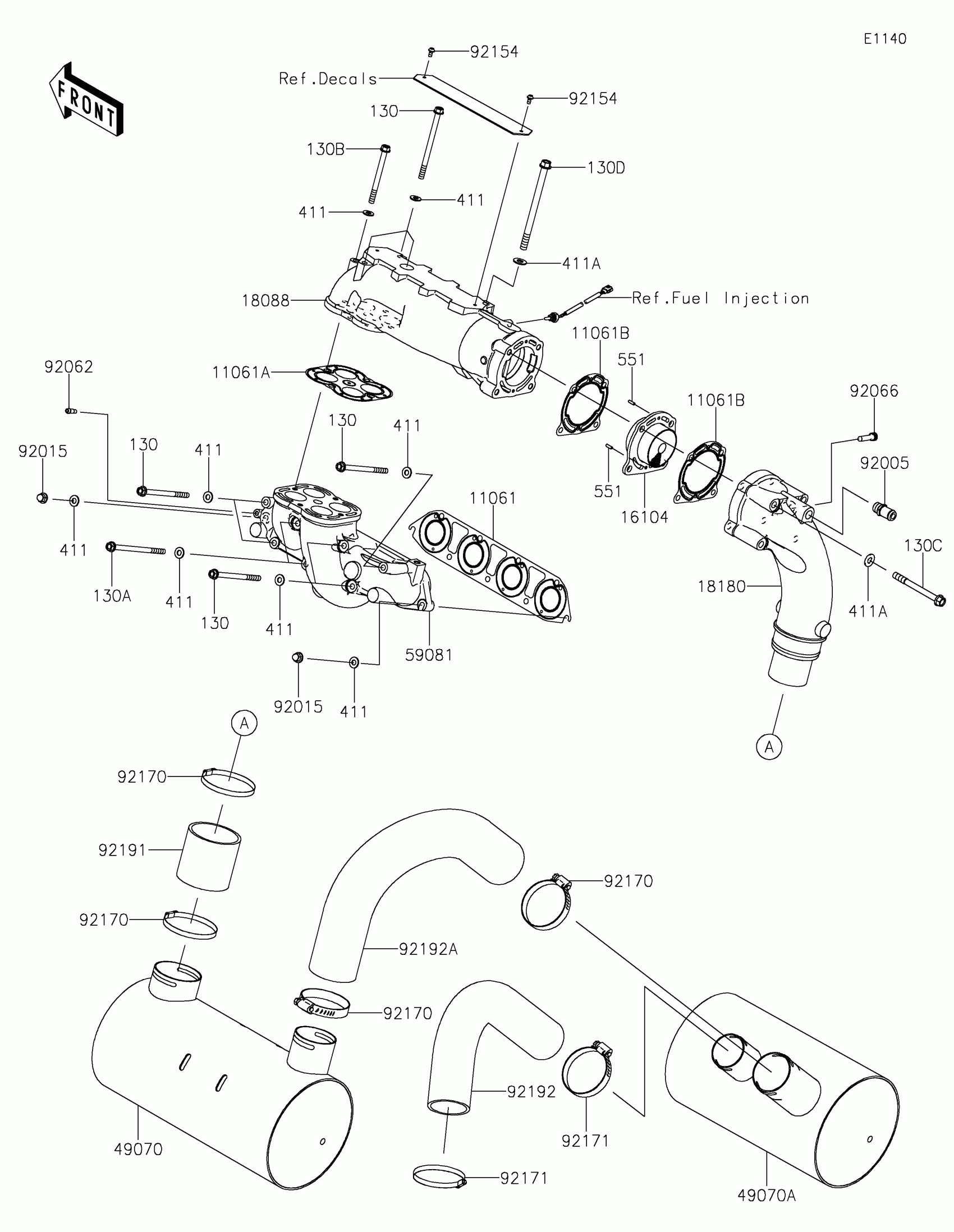

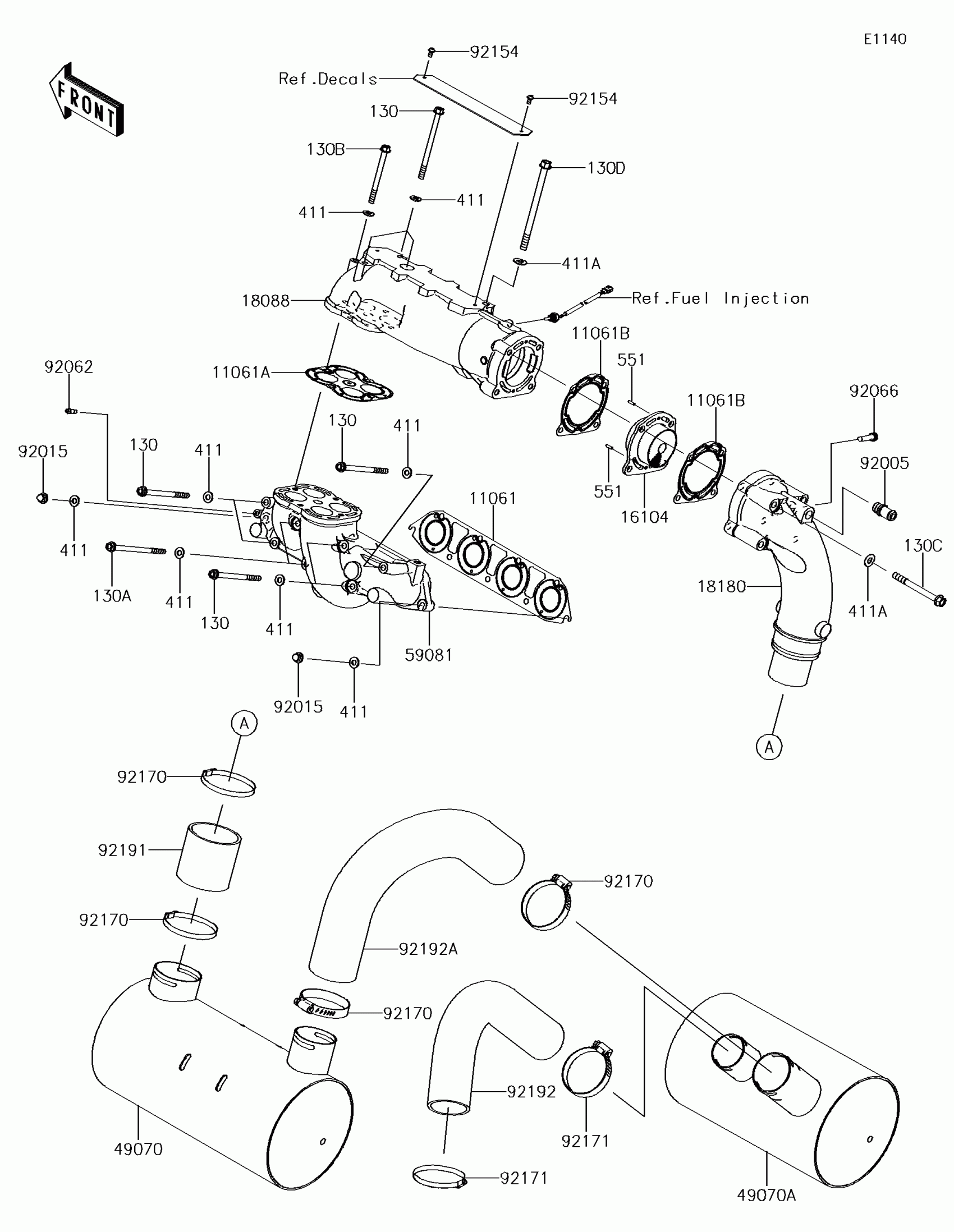

Kawasaki JET SKI® ULTRA® 310R Muffler(s) Diagram

#

Description
Price

11061

GASKET,MANIFOLD EXHAUST

11061-3742

$36.51

11061A

GASKET,PIPE EXHAUST

11061-3762

$27.18

11061B

GASKET,MUFFLER

11061-3768

$16.80

130

BOLT-FLANGED,8X120

130CD08120

$3.35

130A

BOLT-FLANGED,8X140

130CD08140

$3.35

130B

BOLT-FLANGED,8X95

130CD0895

$2.72

130C

BOLT-FLANGED,10X100

130CD10100

$5.67

130D

BOLT-FLANGED,10X150

130CD10150

$5.63

16104

FILTER-COMP,MUFFLER

16104-0012

$154.59

18088

PIPE-EXHAUST

18088-3730

$837.76

18180

BODY-MUFFLER

18180-0825

$573.65

411

WASHER-PLAIN,8MM

411S0800

$2.15

411A

WASHER-PLAIN,10MM

411S1000

$1.89

49070

MUFFLER-COMP,1ST

49070-0749

$562.12

49070A

MUFFLER-COMP,2ND

49070-0750

$562.12

551

PIN-DOWEL

551R0412

$3.86

59081

MANIFOLD-EXHAUST

59081-3744

$947.93

92005

FITTING

92005-0728

$19.97

92015

NUT,CAP,8MM

92015-1371

$3.81

92062

NOZZLE

92062-0562

$10.22

92066

PLUG,FILTER STOPPER

92066-0764

$33.85

92154

BOLT,SOCKET,5X10

92154-0211

$1.54

92170

CLAMP

92170-3764

$9.95

92171

CLAMP

92171-3715

$12.71

92191

TUBE,PIPE EX-MUFFLER

92191-3986

$17.36

92192

TUBE,2ND-TAIL PIPE

92192-3762

$35.92

92192A

TUBE,1ST-2ND

92192-3860

$90.13
