Crankshaft

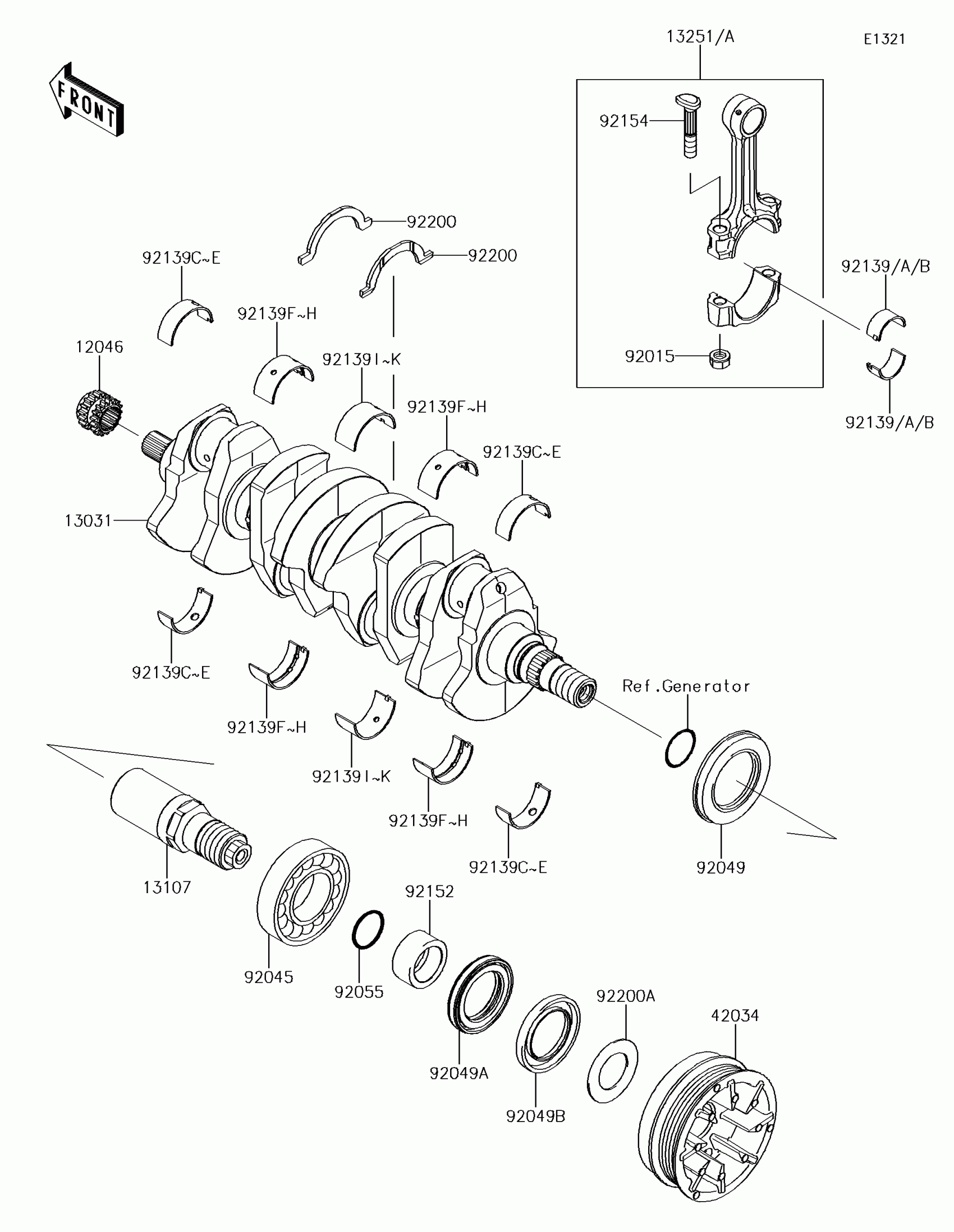

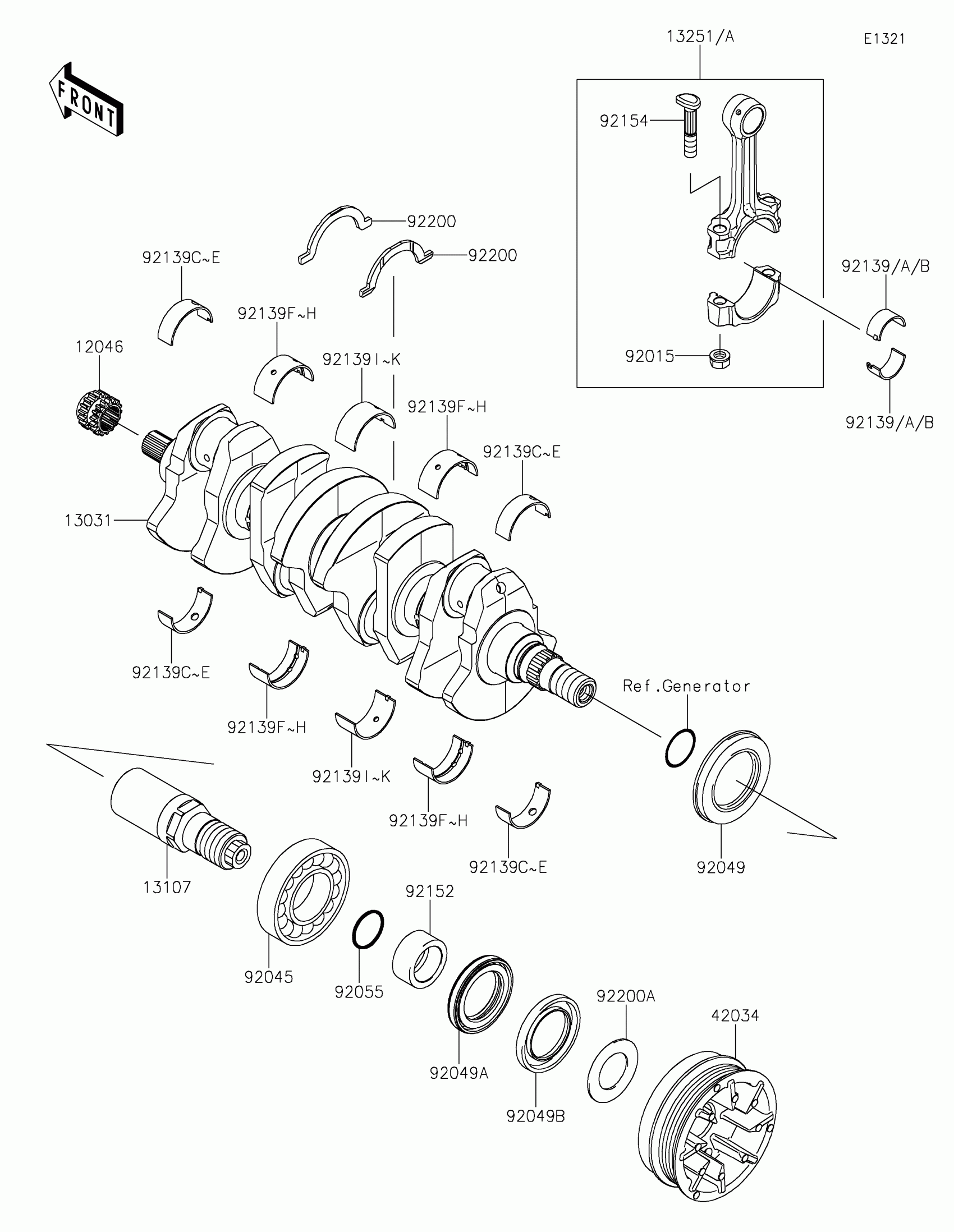

Kawasaki JET SKI® ULTRA® 310R Crankshaft Diagram
#
Description
Price
12046
SPROCKET,17T
12046-3711
$44.77
13031
CRANKSHAFT-COMP
13031-3743
$1,470.80
13107
SHAFT
13107-3810
$104.39
13251
ROD-ASSY-CONNECTING,I
13251-3703-II
$225.15
13251A
ROD-ASSY-CONNECTING,J
13251-3703-JJ
$218.84
42034
COUPLING
42034-3723
$234.95
92015
NUT,CONNECTING ROD
92015-1559
$6.22
92045
BEARING-BALL,6208ZZ AS2S
92045-3739
$57.63
92049
SEAL-OIL,SD347626LHS
92049-3736
$23.99
92049A
SEAL-OIL,FPJ740628.5ZS
92049-3737
$25.76
92049B
SEAL-OIL,S40626NS
92049-3738
$14.71
92055
RING-O,27.7X2.4
92055-091
$6.22
92139
BUSHING,CONNECTING ROD,GREEN
92139-0722
$17.74
92139A
BUSHING,CONNECTING ROD,YELLOW
92139-0723
Unavailable
92139B
BUSHING,CONNECTING ROD,PINK
92139-0724
Unavailable
92139C
BUSHING,CRANKSHAFT,#1,GREEN
92139-0725
$17.74
92139D
BUSHING,CRANKSHAFT,#1,YEL
92139-0726
Unavailable
92139E
BUSHING,CRANKSHAFT,#1,PINK
92139-0727
Unavailable
92139F
BUSHING,CRANKSHAFT,#2,GREEN
92139-0728
$17.74
92139G
BUSHING,CRANKSHAFT,#2,YEL
92139-0729
Unavailable
92139H
BUSHING,CRANKSHAFT,#2,PINK
92139-0730
Unavailable
92139I
BUSHING,CRANKSHAFT,#3,GREEN
92139-0731
$17.74
92139J
BUSHING,CRANKSHAFT,#3,YELLOW
92139-0732
Unavailable
92139K
BUSHING,CRANKSHAFT,#3,PINK
92139-0733
Unavailable
92152
COLLAR,30X40X18
92152-3759
$59.57
92154
BOLT,CONNECTING ROD,9MM
92154-3720
$4.10
92200
WASHER
92200-3789
$32.72
92200A
WASHER,30.5X52X1.5
92200-3808
$6.26
