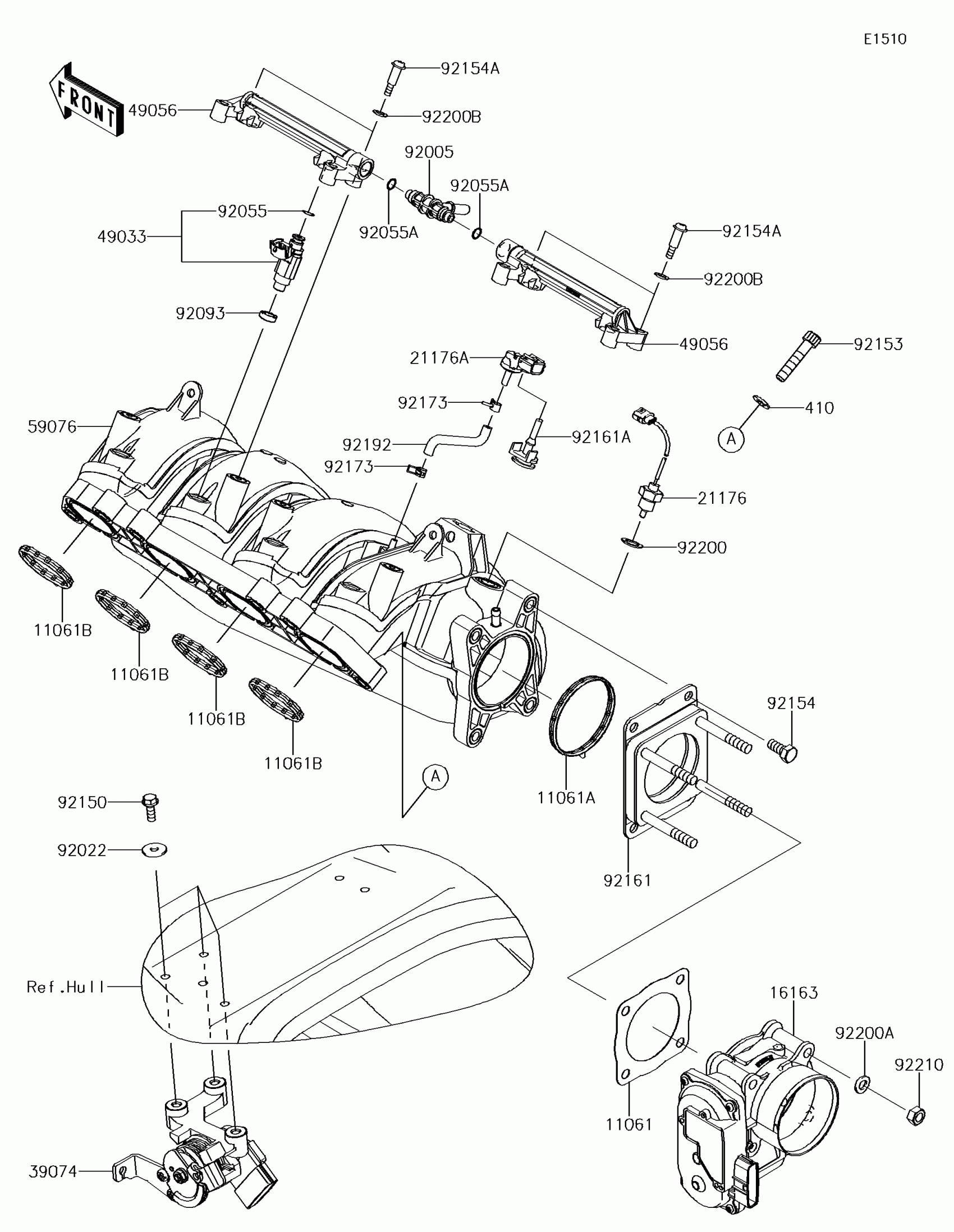

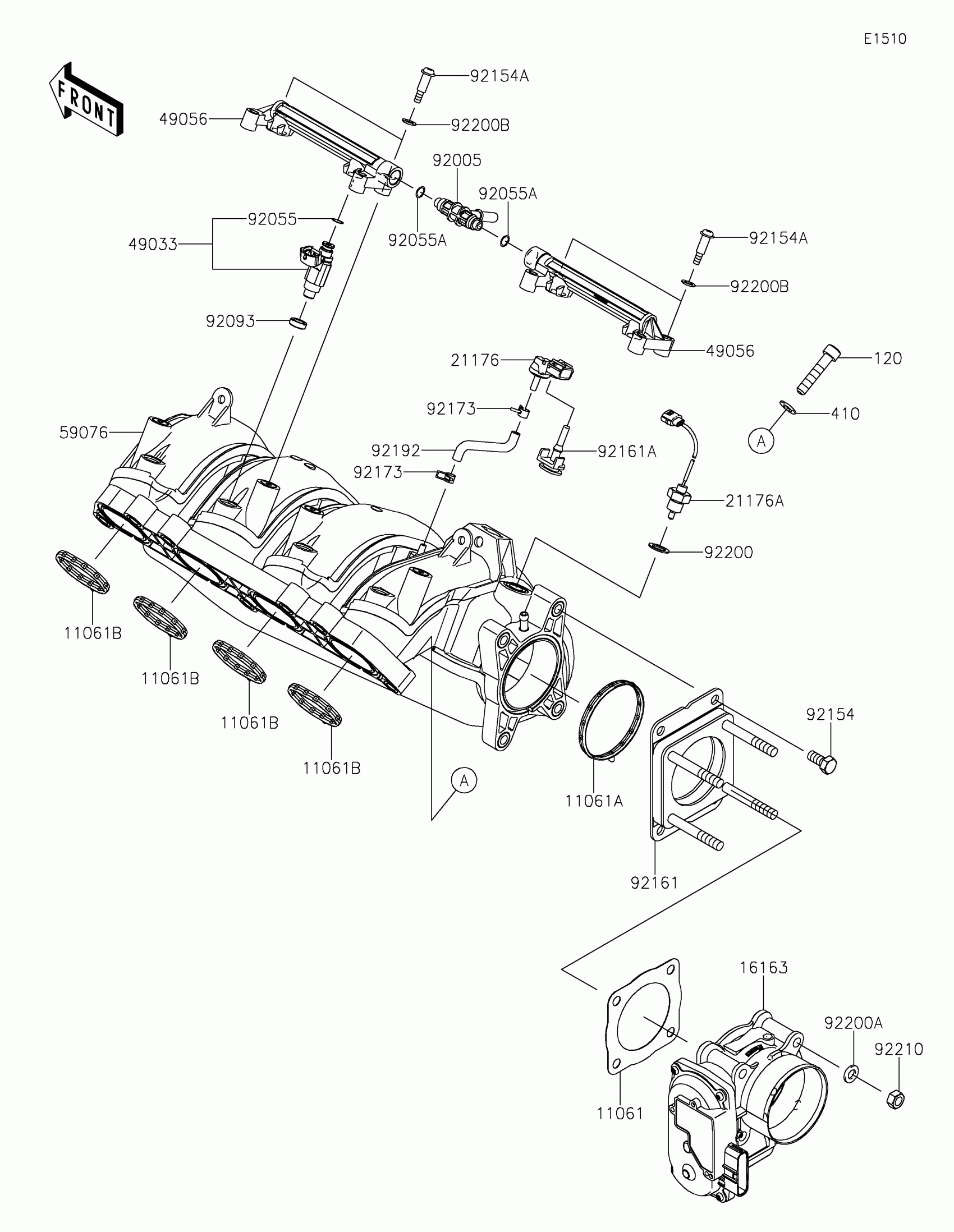

Kawasaki JET SKI® ULTRA® 310LX Throttle Diagram
#
Description
Price
11061
GASKET,THROTTLE
11061-0824
$55.37
11061A
GASKET,MANIFOLD
11061-3766
$15.06
11061B
GASKET,THROTTLE
11061-3767
$15.06
16163
THROTTLE-ASSY
16163-1168
$1,224.88
21176
SENSOR,PRESSURE
21176-0937
$222.28
21176A
SENSOR,AIR TEMPERATURE
21176-3767
$197.51
49033
NOZZLE-INJECTION
49033-3709
$119.31
49056
PIPE-INJECTION,FUEL
49056-3705
$66.48
59076
MANIFOLD-INTAKE
59076-0006
$544.26
92005
FITTING,FUEL PIPE
92005-3766
$33.24
92055
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92055A
RING-O
92055-3782
$9.17
92093
SEAL
92093-0127
$10.56
92154
BOLT
92154-1389
$7.59
92154A
BOLT
92154-3713
$17.91
92161
DAMPER
92161-1635
$120.60
92161A
DAMPER
92161-3796
$14.32
92173
CLAMP
92173-3702
$9.17
92192
TUBE
92192-1361
$4.87
92200
WASHER,12X18X1
92200-0712
$4.72
92200A
WASHER
92200-3806
$6.00
92200B
WASHER
92200-3807
$6.00
92210
NUT
92210-0897
$2.75
120
BOLT-SOCKET,8X40
120CC0840
$2.56
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
