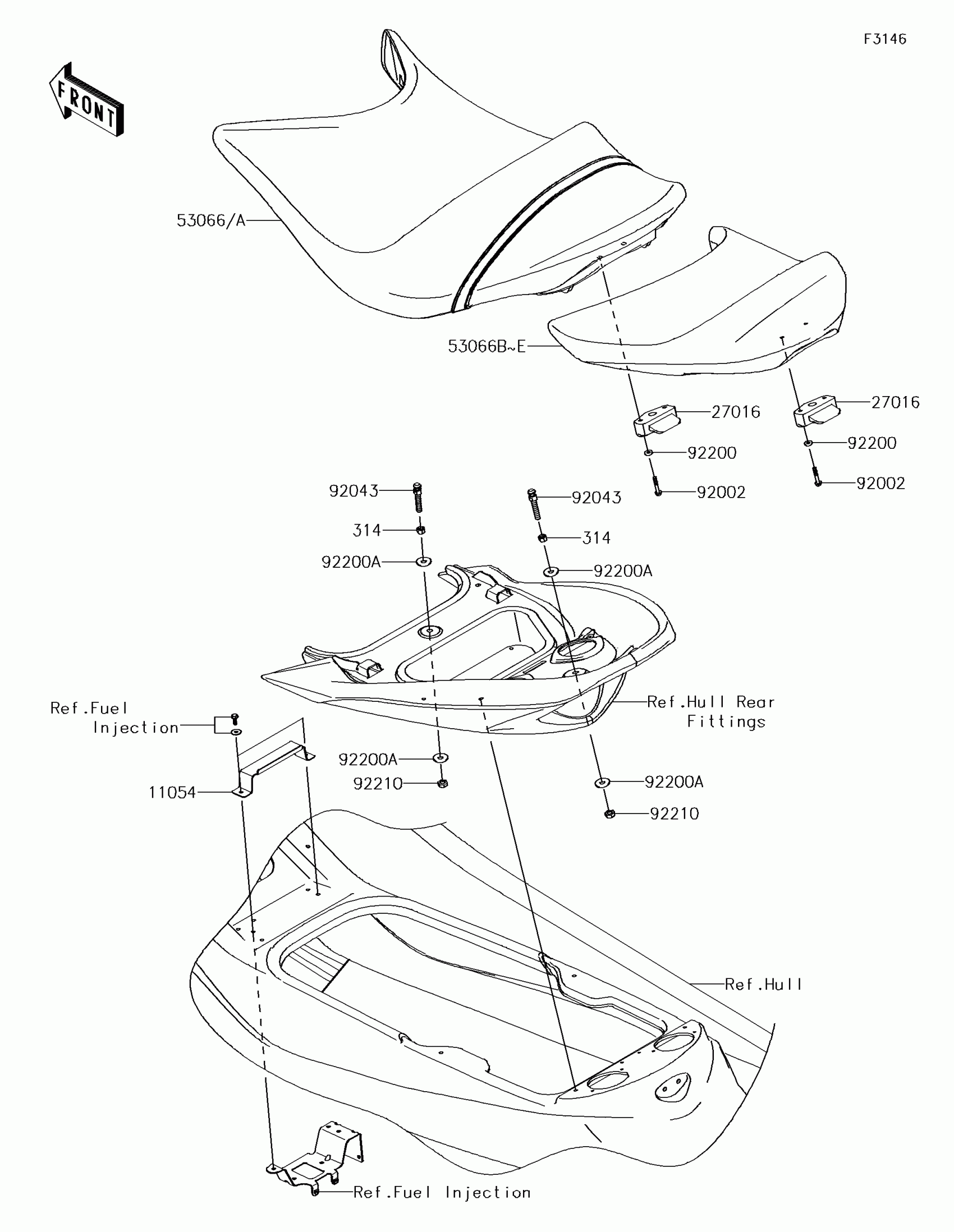

Kawasaki JET SKI® ULTRA® 310LX Seat Diagram

Description

Price

11054

BRACKET,FRONT SEAT

11054-3702

$40.84

27016

LOCK-ASSY,SEAT

27016-3758

$98.34

314

NUT-HEX-FINE,10MM

314R1000

$2.02

53066A

SEAT-ASSY,FR,BLACK+GRN+BLK

53066-0408-55R

$649.36

53066C

SEAT-ASSY,RR,BLACK+GRN+GRY

53066-0416-55S

$975.42

53066E

SEAT-ASSY,RR,BLACK+GRN+GRY

53066-0417-55S

$476.07

92002

BOLT,6X40

92002-3716

$5.52

92043

92043-3763

$46.79

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER

92200-3762

$2.61

92210

NUT,LOCK,10MM

92210-3792

$7.75

Kawasaki JET SKI® ULTRA® 310LX Seat Diagram

BRACKET,FRONT SEAT

LOCK-ASSY,SEAT

NUT-HEX-FINE,10MM

SEAT-ASSY,FR,BLACK+GRN+BLK

SEAT-ASSY,RR,BLACK+GRN+GRY

SEAT-ASSY,RR,BLACK+GRN+GRY

BOLT,6X40

PIN

WASHER,6.5X16X2.0

WASHER

NUT,LOCK,10MM
