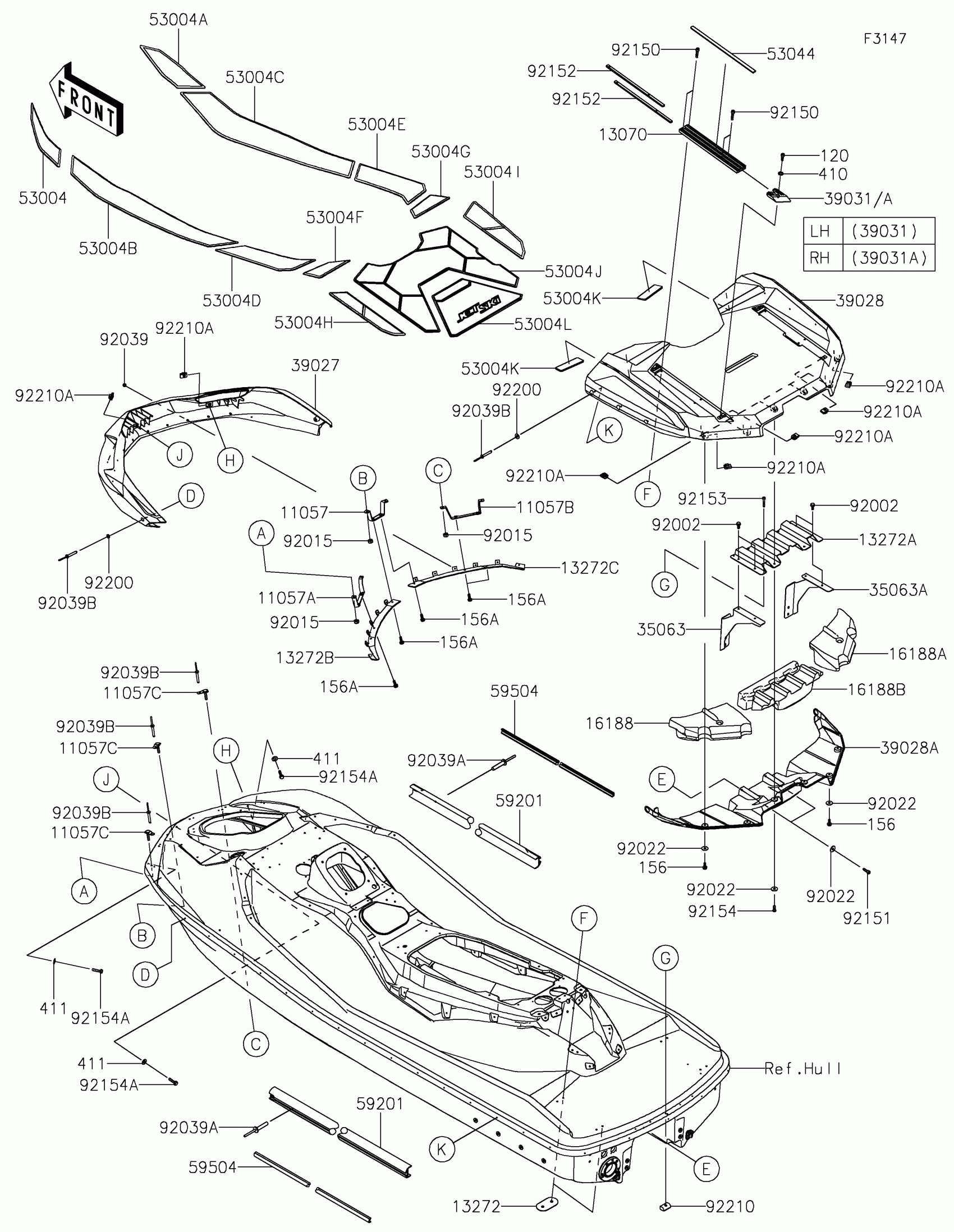

Kawasaki JET SKI® ULTRA® 310LX-S Pads Diagram
#
11057
BRACKET,FR BUMPER,CNT
11057-7809
$30.16
11057A
BRACKET,FR BUMPER,LH
11057-7810
$35.48
11057B
BRACKET,FR BUMPER,RH
11057-7811
$35.48
11057C
BRACKET,FR
11057-7812
$6.31
13070
GUIDE,RR
13070-0974
$43.44
13272
PLATE,GUIDE
13272-3849
$8.99
13272A
PLATE,RR,INSIDE
13272-3873
$81.94
13272B
PLATE,FR BUMPER,LH
13272-3984
$130.65
13272C
PLATE,FR BUMPER,RH
13272-3985
$130.65
16188
FLOAT,RR,LH
16188-0066
$18.16
16188A
FLOAT,RR,RH
16188-0067
$18.16
16188B
FLOAT,RR,CNT
16188-0068
$19.76
35063
STAY,RR,LH
35063-1567
$30.86
35063A
STAY,RR,RH
35063-1569
$30.86
39027
BUMPER-FRONT,BLACK
39027-0004-6Z
$114.88
39028
BUMPER-REAR,UPP,BLACK
39028-0006-6Z
$215.85
39028A
BUMPER-REAR,LWR,BLACK
39028-0007-6Z
$60.04
39031
CAP-END,LH,BLACK
39031-0025-6Z
$4.77
39031A
CAP-END,RH,BLACK
39031-0026-6Z
$4.77
53004
MAT,FLOOR,FR,LH
53004-0672
$17.15
53004A
MAT,FLOOR,FR,RH
53004-0673
$17.15
53004B
MAT,FLOOR,MIDDLE,LH
53004-0674
$73.93
53004C
MAT,FLOOR,MIDDLE,RH
53004-0675
$73.93
53004D
MAT,FLOOR,RR,LH
53004-0676
$24.28
53004E
MAT,FLOOR,RR,RH
53004-0677
$24.28
53004F
MAT,DECK,FR,LH
53004-0688
$18.58
53004G
MAT,DECK,FR,RH
53004-0689
$18.58
53004H
MAT,DECK,LH
53004-0690
$23.64
53004I
MAT,DECK,RH
53004-0691
$23.64
53004J
MAT,DECK,CNT,FR
53004-0692
$110.15
53004K
MAT,50X135X6
53004-0694
$4.64
53004L
MAT,DECK,CNT,RR
53004-0753
$46.01
53044
TRIM,GUIDE
53044-0733
$3.62
59201
BUMPER,SIDE,BLACK
59201-0008-6Z
$162.44
59504
INSERT-BOAT FENDER,SIDE,F.SIL
59504-0002-AG
$79.40
92002
BOLT,6X16
92002-3728
$4.69
92015
NUT,LOCK,6MM
92015-3766
$5.91
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET
92039-3733
$2.58
92039A
RIVET
92039-3771
$0.95
92039B
RIVET
92039-3773
$1.08
92150
BOLT,SOCKET,6X30
92150-3822
$4.31
92151
BOLT,SOCKET,6X20
92151-3774
$1.83
92152
COLLAR,GUIDE
92152-2815
$42.12
92153
BOLT,SOCKET,5X30
92153-3742
$2.97
92154
BOLT,SOCKET,6X18
92154-4447
$1.72
92154A
BOLT,FLANGED,6X28
92154-4484
$4.45
92200
WASHER,5X12X1
92200-3796
$2.15
92210
NUT
92210-1892
$16.74
92210A
NUT,6MM
92210-3768
$5.79
120
BOLT-SOCKET,6X20
120R0620
$3.92
156
BOLT-WP,6X16
156R0616
$3.65
156A
BOLT-WP,6X18
156R0618
$3.73
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
411
WASHER-PLAIN,6MM
411S0600
$2.06
