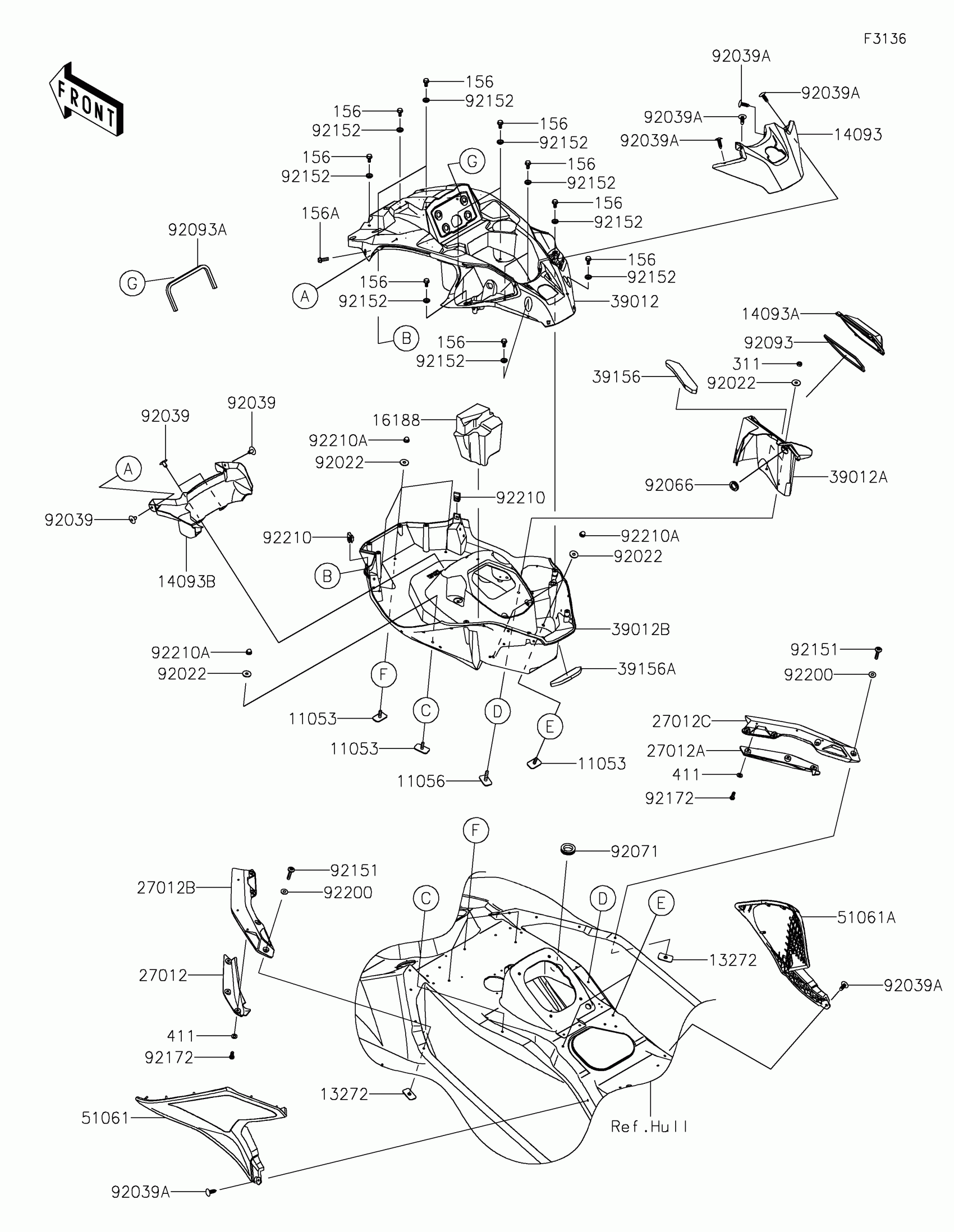

Kawasaki JET SKI® ULTRA® 310LX-S Hull Middle Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.48

11056

BRACKET

11056-3724

$5.05

13272

PLATE

13272-3861

$3.57

14093

COVER,CONSOL

14093-1164

$16.10

14093A

COVER,WATERPROOF,FR,RH

14093-1165

$11.12

14093B

COVER,HARNESS

14093-1203

$14.51

16188

FLOAT

16188-0065

$13.77

27012

HOOK,FR,LH,UPP

27012-0887

$29.95

27012A

HOOK,FR,LH,LWR

27012-0888

$8.54

27012B

HOOK,FR,RH,UPP

27012-0889

$29.95

27012C

HOOK,FR,RH,LWR

27012-0890

$8.54

39012

CASE-STORAGE,FR,CNT,UPP

39012-0071

$105.63

39012A

CASE-STORAGE,FR,CNT,LWR

39012-0072

$110.20

39012B

CASE-STORAGE,WATERPROOF,FR,RH

39012-0073

$17.91

39156

PAD

39156-2778

$7.13

39156A

PAD

39156-2815

$15.72

51061

PAD-KNEE,LH,BLACK

51061-0008-6Z

$72.17

51061A

PAD-KNEE,RH,BLACK

51061-0009-6Z

$72.17

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3785

$4.65

92039A

RIVET

92039-3788

$3.39

92066

PLUG

92066-0984

$2.73

92071

GROMMET,31.5X50X11

92071-0737

$7.53

92093

SEAL

92093-0760

$6.60

92093A

SEAL

92093-0808

$6.55

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR

92152-2951

$4.99

92172

SCREW,TAPPING,6X16

92172-1441

$1.49

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,6MM

92210-3768

$5.79

92210A

NUT,CAP,6MM

92210-3785

$5.65

156

BOLT-WP,6X14

156R0614

$3.90

156A

BOLT-WP,6X20

156R0620

$3.65

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06
