2023 Kawasaki JET SKI® Ultra® 310LX-S Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2023 Kawasaki JET SKI® Ultra® 310LX-S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

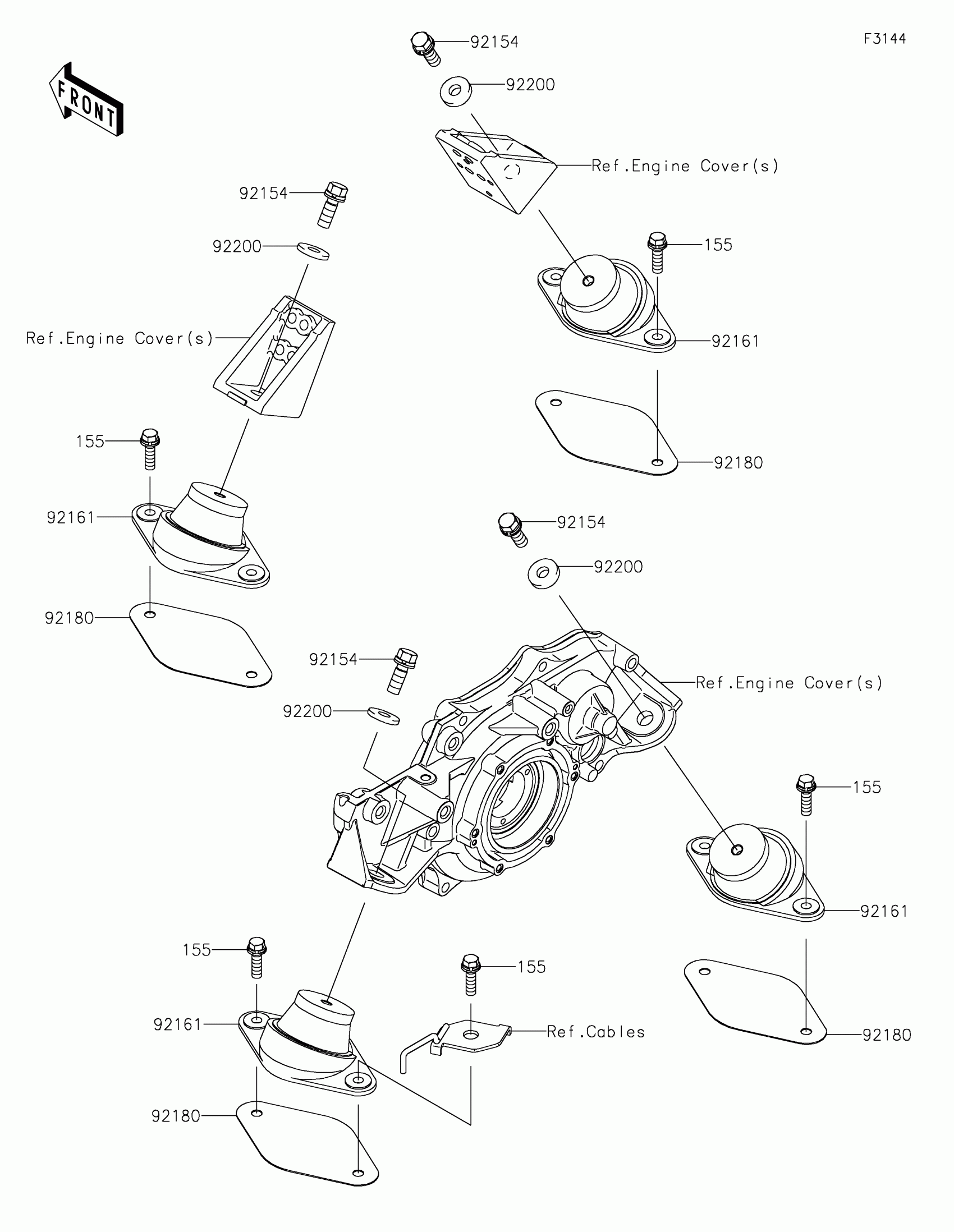

2023 Kawasaki JET SKI® Ultra® 310LX-S Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92154

BOLT,WSP,10X30

92154-3715

1
Out of stock

92161

DAMPER,ENGINE MOUNT

92161-3789

1

$100.50

In stock

92180

SHIM,T=1.0

92180-3716

—
Out of stock

92200

WASHER,10.5X26X4

92200-3798

1
Out of stock

155

BOLT-WSP-SMALL,8X30

155R0830

1
Out of stock
